HEADLAMP

DR250S 1983 (D)

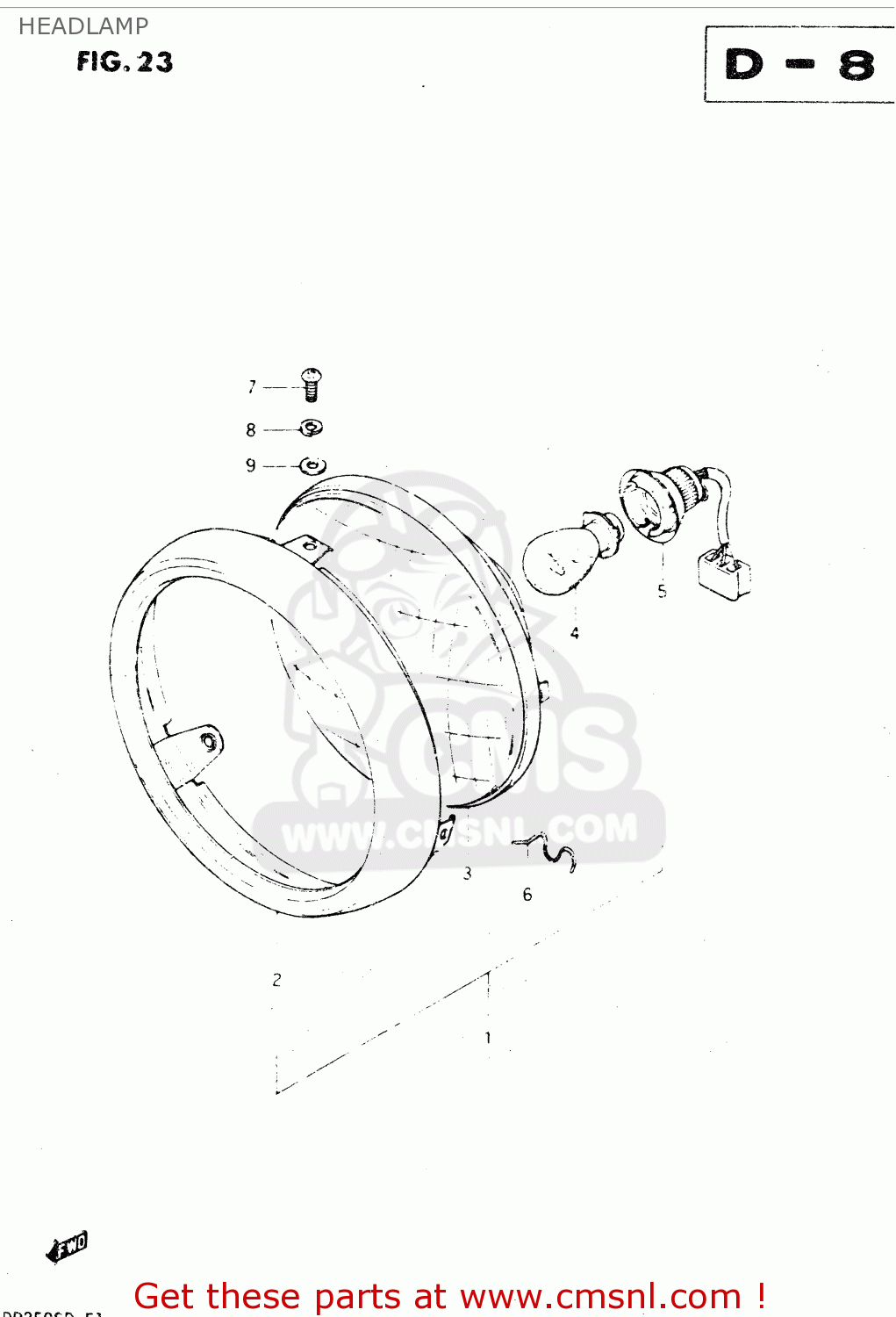

Headlamp diagram DR250S 1983 (D)

HEADLAMP DR250S 1983 (D)

HEADLAMP DR250S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

3510032510
ref: 1

HEADLAMP ASSY

€ 0.00

2

3511126440
ref: 2

RIM

€ 46.50

3

3512132400
ref: 3

UINT

€ 57.00

4

0947106043
ref: 4

BULB(6V,35/35W)

€ 7.00

5

3517144270
ref: 5

SOCKET

€ 34.50

6

3517233630
ref: 6

SPRING

€ 4.00

7

0211204128
ref: 7

SCREW

€ 1.50

8

0832121048
ref: 8

LOCK WASHER

€ 2.00

9

0832221048
ref: 9

WASHER

€ 2.00
