REAR SWINGING ARM (E2, E4, E6, E18, E21, E22, E25, E39)
DR250S 1983 (D)

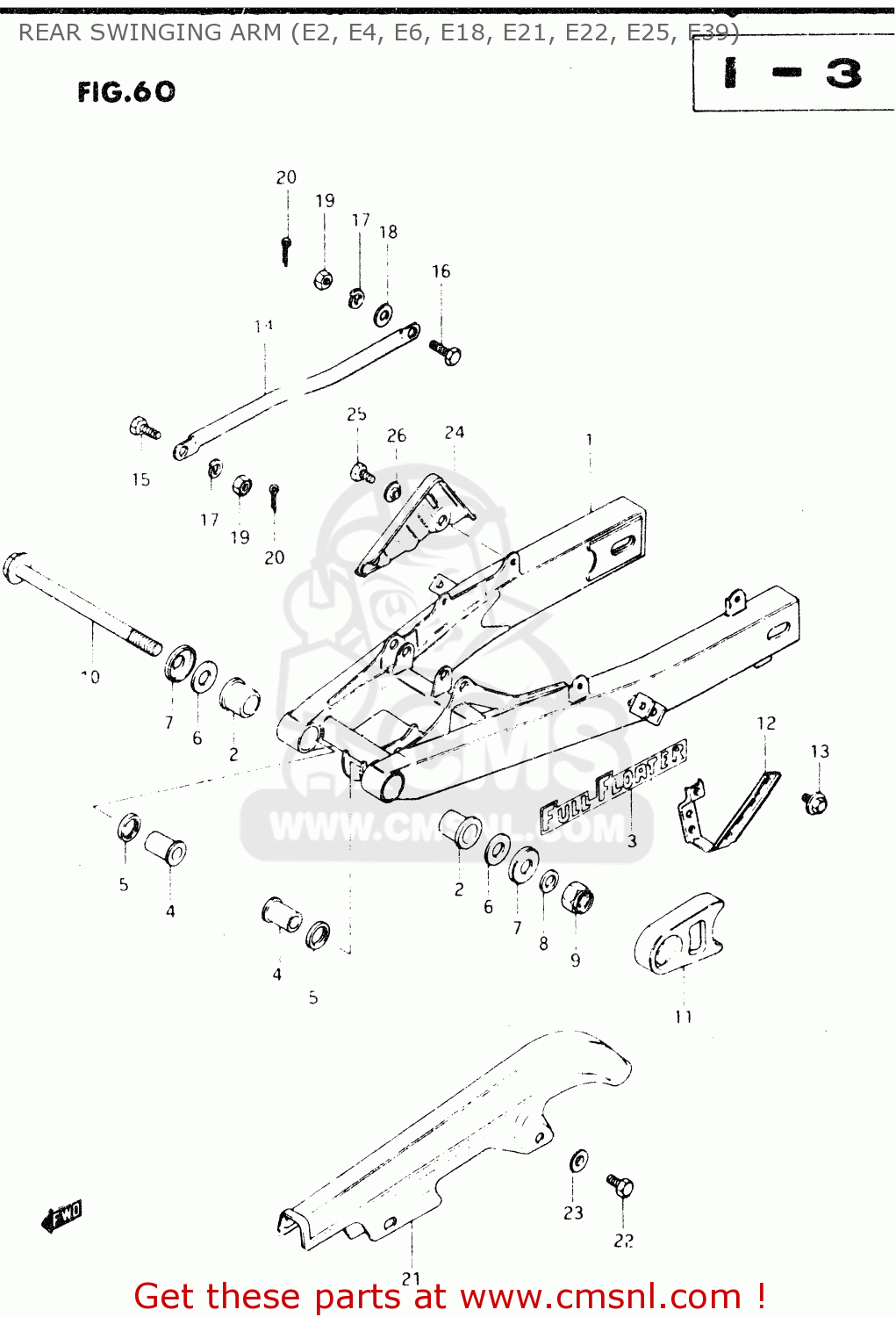

Rear swinging arm (e2, e4, e6, e18, e21, e22, e25, e39) diagram DR250S 1983 (D)
REAR SWINGING ARM (E2, E4, E6, E18, E21, E22, E25, E39) DR250S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
610003821008C
ref: 1-1
MODEL Z
SWINGING ARM, REAR
€ 0.00
1-2
610003828008C
ref: 1-2
MODEL D
SWINGING ARM, REAR
€ 0.00
2
6126138200
ref: 2
BUSHING,RR SWGARM PIVOT
€ 13.50
3-1
683812040064D
ref: 3-1
MODEL Z
EMBLEM
€ 4.50
3-2
683811411064D
ref: 3-2
MODEL D
EMBLEM
€ 0.00
4
6125138200
ref: 4
SPACER,RR SWGARM PIVOT OUTER
€ 16.50
5
0928620001
ref: 5
SEAL,OIL(20X27X5)
€ 2.50
6
0821115341
ref: 6
WASHER
€ 2.00
7
6126238200
ref: 7
COVER,REAR SWING ARM DUST
€ 7.50
8
0832211148
ref: 8
WASHER
€ 2.00
9
0831921148
ref: 9
NUT 14MM
€ 3.00
10
6121138200
ref: 10
SHAFT,REAR SWING ARM
€ 33.00
11
6127338200
ref: 11
BUFFER,CHAIN TOUCH DEFLECTOR
€ 9.00
12
6134130500
ref: 12
GUIDE,CHAIN
€ 13.00
13
0151708128
ref: 13
BOLT 8X12
€ 3.50
14
643113100108C
ref: 14
LINK,REAR TORQUE
€ 15.00
15
0911108012
ref: 15
BOLT(8X22.5)
€ 3.00
16
0911108013
ref: 16
BOLT(8X26.5)
€ 3.00
17
0832121088
ref: 17
LOCK WASHER
€ 2.00
18
0832211088
ref: 18
WASHER
€ 2.00
19
0914008008
ref: 19
NUT
€ 1.50
20
0411120208
ref: 20
PIN 20X20
€ 1.50
21-1
6131138201291
ref: 21-1
MODEL Z
CASE,CHAIN
€ 35.00
21-2
6131138202291
ref: 21-2
MODEL D
CASE,CHAIN
€ 35.00
22
0910006092
ref: 22
BOLT 6X8
€ 2.50
23
0916906026
ref: 23
WASHER
€ 2.00
24
6139138200
ref: 24
GUARD,PILLION FOOT
€ 0.00
25
0910006092
ref: 25
BOLT 6X8
€ 2.50
26
0916906026
ref: 26
WASHER
€ 2.00
