STAND - REAR BRAKE
DR250S 1983 (D)

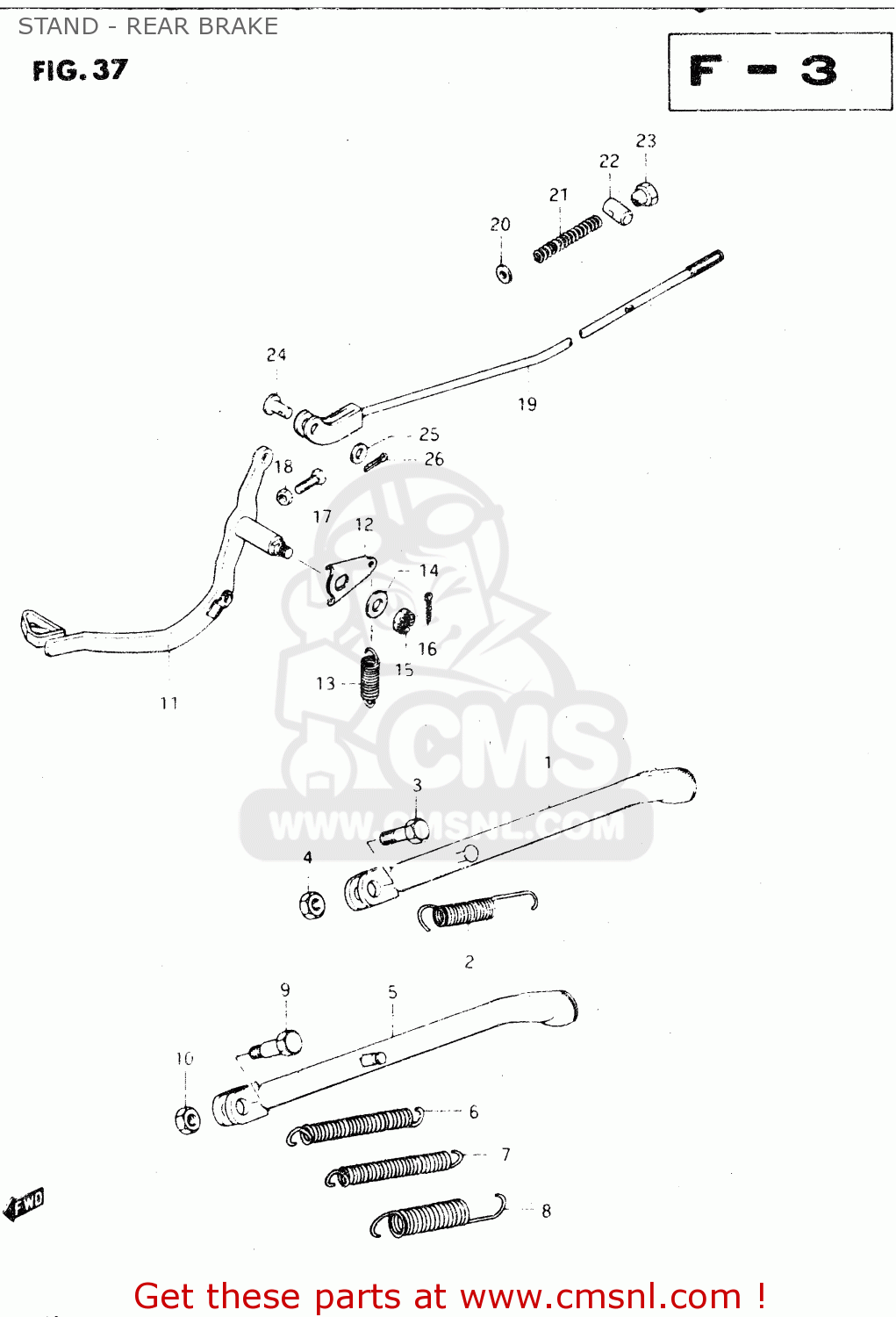

Stand - rear brake diagram DR250S 1983 (D)
STAND - REAR BRAKE DR250S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
4231038200
ref: 1
STAND,SIDE
€ 26.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
NUT
€ 2.50
5
4231038210
ref: 5
E18,E22
STAND PROP
€ 19.00
6
0944315007
ref: 6
E18
SPRING
€ 6.00
7
0944314014
ref: 7
E22
SPRING
€ 5.50
8
0944322001
ref: 8
E22
SPRING, OUTER
€ 4.50
9-1
0911110013
ref: 9-1
MODEL Z E18,E22
BOLT
€ 4.50
9-2
0911110019
ref: 9-2
MODEL D E18,E22
BOLT L:30
€ 4.50
10
0831022108
ref: 10
E18,E22
NUT
€ 2.50
11
4311038200
ref: 11
PEDAL,BRAKE
€ 40.50
12
4312838200
ref: 12
ARM,BRAKE RETURN SPRING
€ 3.50
13
0944314020
ref: 13
SPRING
€ 3.00
14
0821108202
ref: 14
WASHER
€ 1.50
15
0831441088
ref: 15
NUT 8MM
€ 2.50
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
0910006009
ref: 17
BOLT(6X23)
€ 1.50
18
0831011068
ref: 18
NUT
€ 2.50
19-1
4330038200
ref: 19-1
ROD ASSEMBLY,REAR BRAKE
€ 113.50
19-2
4330038230
ref: 19-2
E2,E4,E6,E18,E21,E25
ROD ASSY REAR BRAKE
€ 9.50
19-3
4330038210
ref: 19-3
E22
ROD ASSY REAR BRAKE
€ 0.00
20
0832221068
ref: 20
WASHER
€ 2.00
21
0944009004
ref: 21
SPRING
€ 2.00
22
0920911002
ref: 22
PIN(11X18)
€ 2.00
23-1
0915006001
ref: 23-1
MODEL Z
NUT
€ 3.50
23-2
0915006009
ref: 23-2
MODEL D
NUT (6MM)
€ 3.50
24
0920006039
ref: 24
PIN
€ 2.50
25
0832221068
ref: 25
WASHER
€ 2.00
26
0411120208
ref: 26
PIN 20X20
€ 1.50
