CRANKCASE

DR250S 1983 (D)

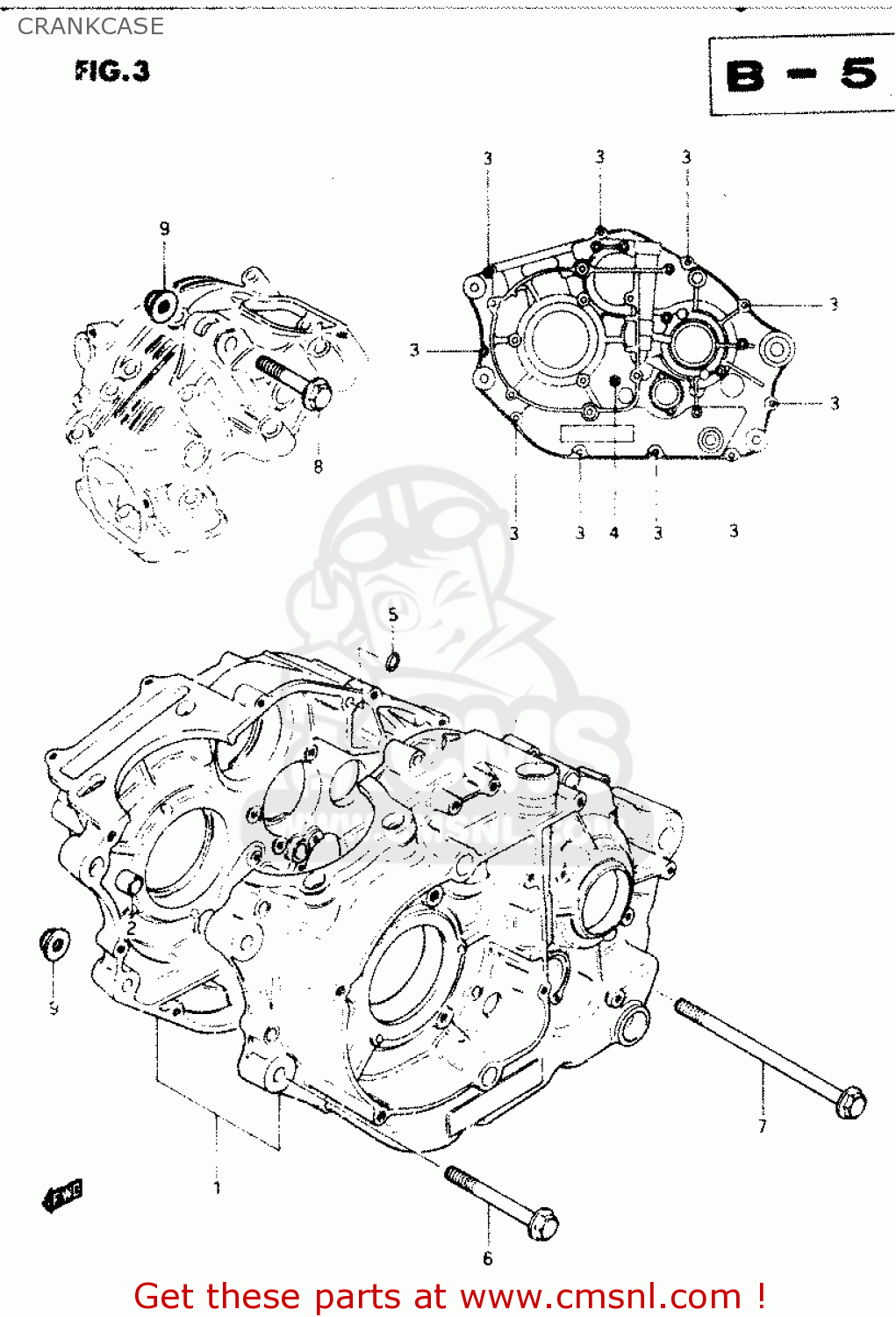

Crankcase diagram DR250S 1983 (D)

CRANKCASE DR250S 1983 (D)
CRANKCASE DR250S 1983 (D)
CRANKCASE DR250S 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
1130038850
ref: 1
CRANKCASE ASSEMBLY
€ 660.50
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0154706355
ref: 3
BOLT (6X35)
€ 3.00
4
0154706555
ref: 4
BOLT (6X55)
€ 3.00
5
0928009004
ref: 5
O-RING
0928009004
€ 4.00
6
0910308075
ref: 6
BOLT 8X67
€ 6.50
7
0910308080
ref: 7
BOLT
€ 5.50
8
0910308082
ref: 8
BOLT 8X50
€ 7.00
9
0831931085
ref: 9
NUT
€ 2.50
