TURN SIGNAL LAMP (E2, E4, E21, E25)
DR250S 1983 (D)

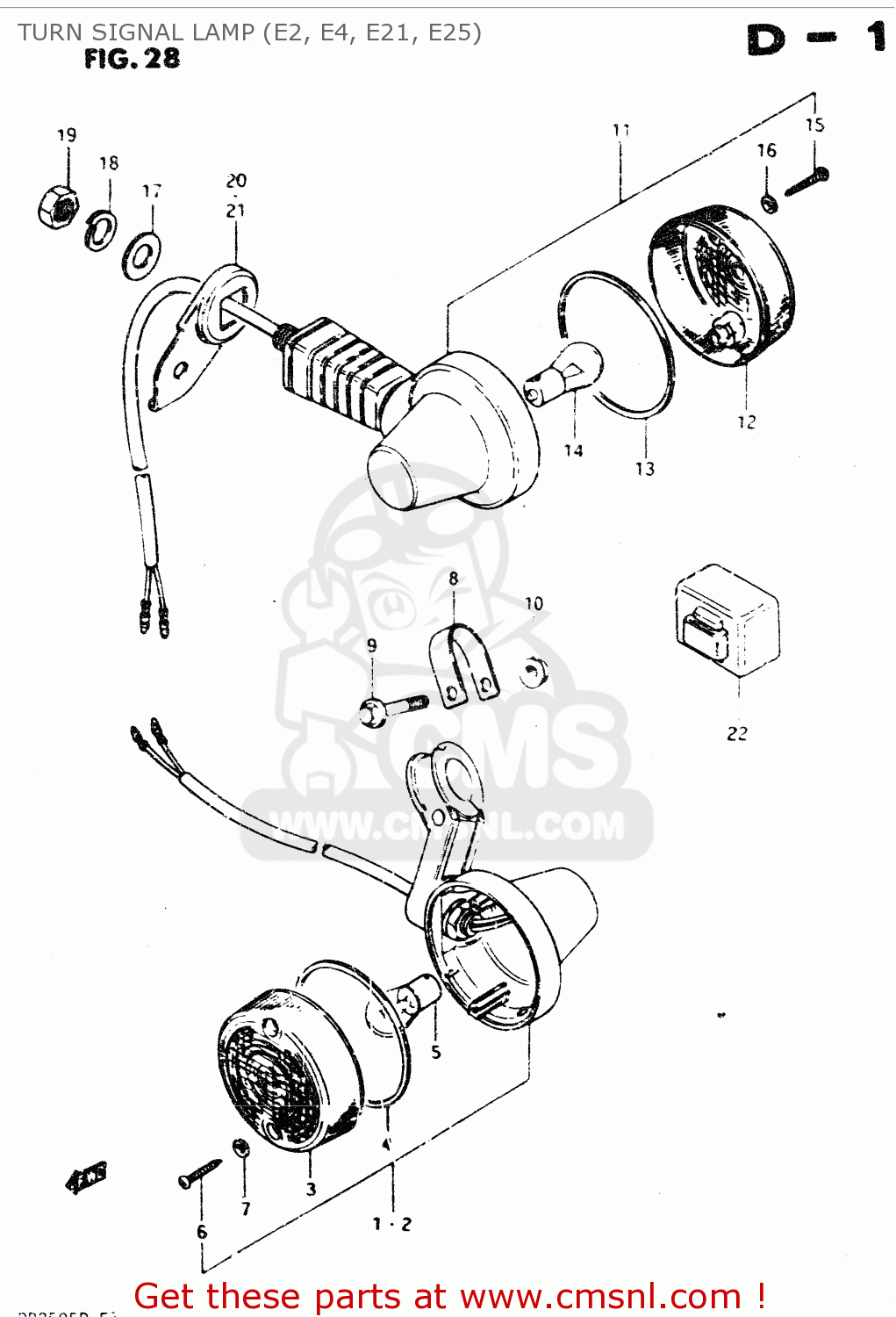

Turn signal lamp (e2, e4, e21, e25) diagram DR250S 1983 (D)
TURN SIGNAL LAMP (E2, E4, E21, E25) DR250S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
3560138220
ref: 1
LAMP, FRONT TURN SIGNAL RH
€ 32.50
2
3560238220
ref: 2
LAMP, FRONT TURN SIGNAL LH
€ 50.00
3
3561246530
ref: 3
LENS
€ 0.00
4
3561328620
ref: 4
GASKET (NAS)
€ 7.00
5
0947112056
ref: 5
BULB 12V 21W
€ 5.00
6
0321104258
ref: 6
SCREW TAPP.
€ 2.00
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
3561605210
ref: 8
PLATE
€ 5.50
9
0910305003
ref: 9
BOLT 5X42
€ 2.50
10
0831616058
ref: 10
NUT
€ 2.50
11
3560338220
ref: 11
TO 35603-38221
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 68.50
12
3561248510
ref: 12
LENS
€ 10.50
13
3561328620
ref: 13
GASKET (NAS)
€ 7.00
14
0947112056
ref: 14
BULB 12V 21W
€ 5.00
15
0321104258
ref: 15
SCREW TAPP.
€ 2.00
16
3562743010
ref: 16
GASKET (NAS)
€ 2.00
17
0916012049
ref: 17
TO 09160-12048
WASHER
€ 2.00
18
0832121128
ref: 18
WASHER,LOCK 12
€ 2.50
19
0831012128
ref: 19
NUT
€ 3.00
20
3562138201
ref: 20
BRACKET,REAR TURN SIGNAL LAMP
€ 2.50
21
3564138201
ref: 21
BRACKET,RR TURNSIGNAL LAMP,L
€ 3.00
22
3861045031
ref: 22
RELAY,TURN SIGNAL
€ 54.50
