Buy Suzuki DR Parts Online


FRAME COVER

DR250S 1983 (D)

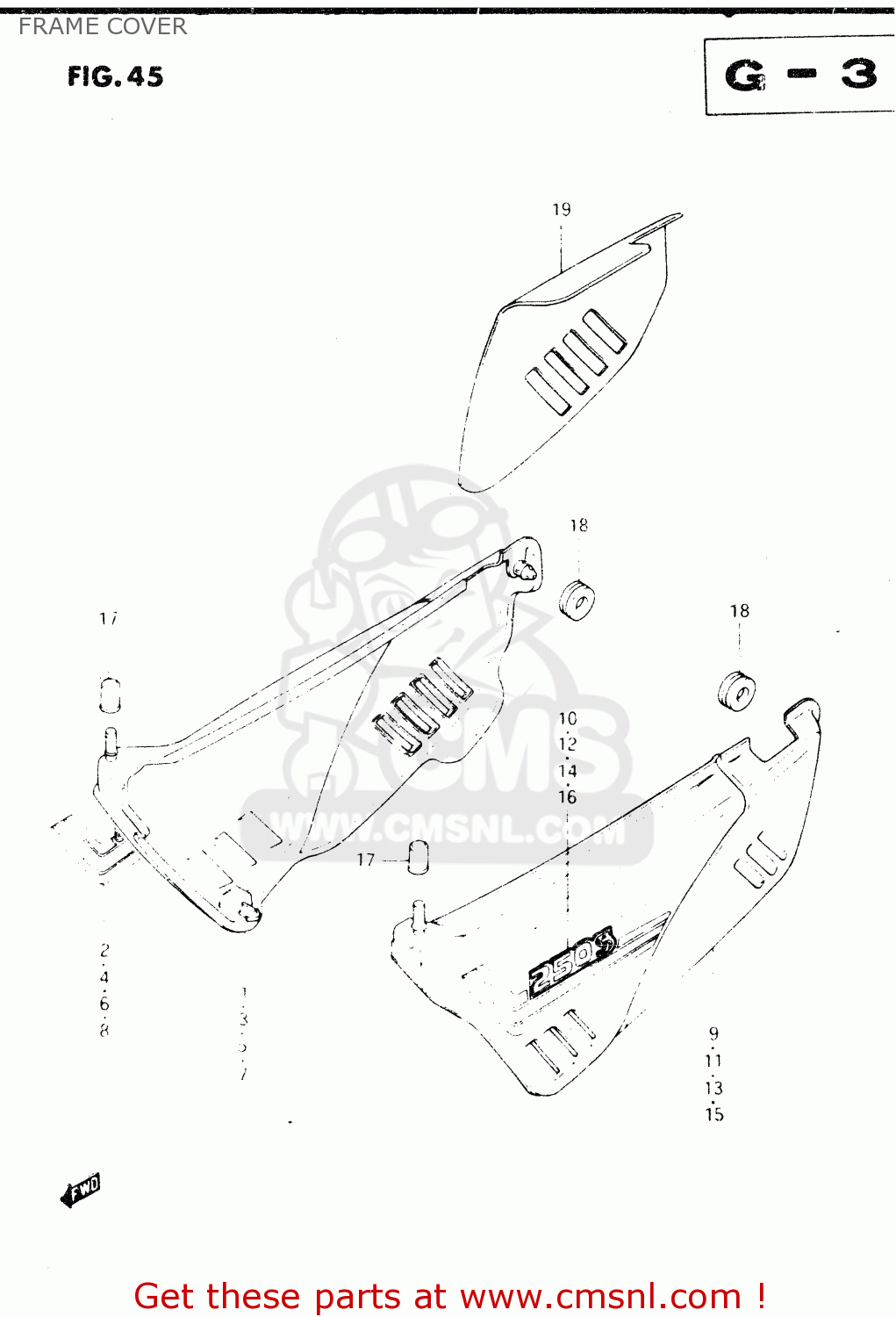

Frame cover diagram DR250S 1983 (D)

FRAME COVER DR250S 1983 (D)
FRAME COVER DR250S 1983 (D)
FRAME COVER DR250S 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
4711138210019
ref: 1
COVER, FRAME RH (BLACK)
€ 67.00
2
681363821083W
ref: 2
TAPE, RH
€ 0.00
3
471113821004Y
ref: 3
COVER, FRAME RH (BLUE)
€ 67.00
4
681363821084L
ref: 4
TAPE, RH
€ 20.00
5
4711138210163
ref: 5
COVER, FRAME RH (YELLOW)
€ 67.00
6
681363821083U
ref: 6
TAPE, RH
€ 13.50
7
471113821007P
ref: 7
COVER,FRAME,RIGHT
€ 67.00
8
681363821085A
ref: 8
TAPE, RH
€ 0.00
9
4721138230019
ref: 9
COVER, FRAME LH (BLACK)
€ 53.50
10
681463821083W
ref: 10
TAPE, LH
€ 0.00
11
472113823004Y
ref: 11
COVER, FRAME LH (BLUE)
€ 53.50
12
681463821084L
ref: 12
TAPE, LH
€ 15.00
13
4721138230163
ref: 13
COVER, FRAME LH (YELLOW)
€ 53.50
14
681463821083U
ref: 14
TAPE, LH
681463821083U
€ 13.50
15
472113823007P
ref: 15
COVER,FRAME,LEFT
472113823007P
€ 53.50
16
681463821085A
ref: 16
TAPE, LH
€ 0.00
17
0932003005
ref: 17
CUSHION
0932003005
€ 2.00
18
0932008018
ref: 18
CUSHION
0932008018
€ 4.00
19
4712238201
ref: 19
HEAT SHIELD,FRAME COVER
€ 34.00
