FRAME COVER (MODEL Z E2, E4, E18, E21, E25, E39)

DR250S 1983 (D)

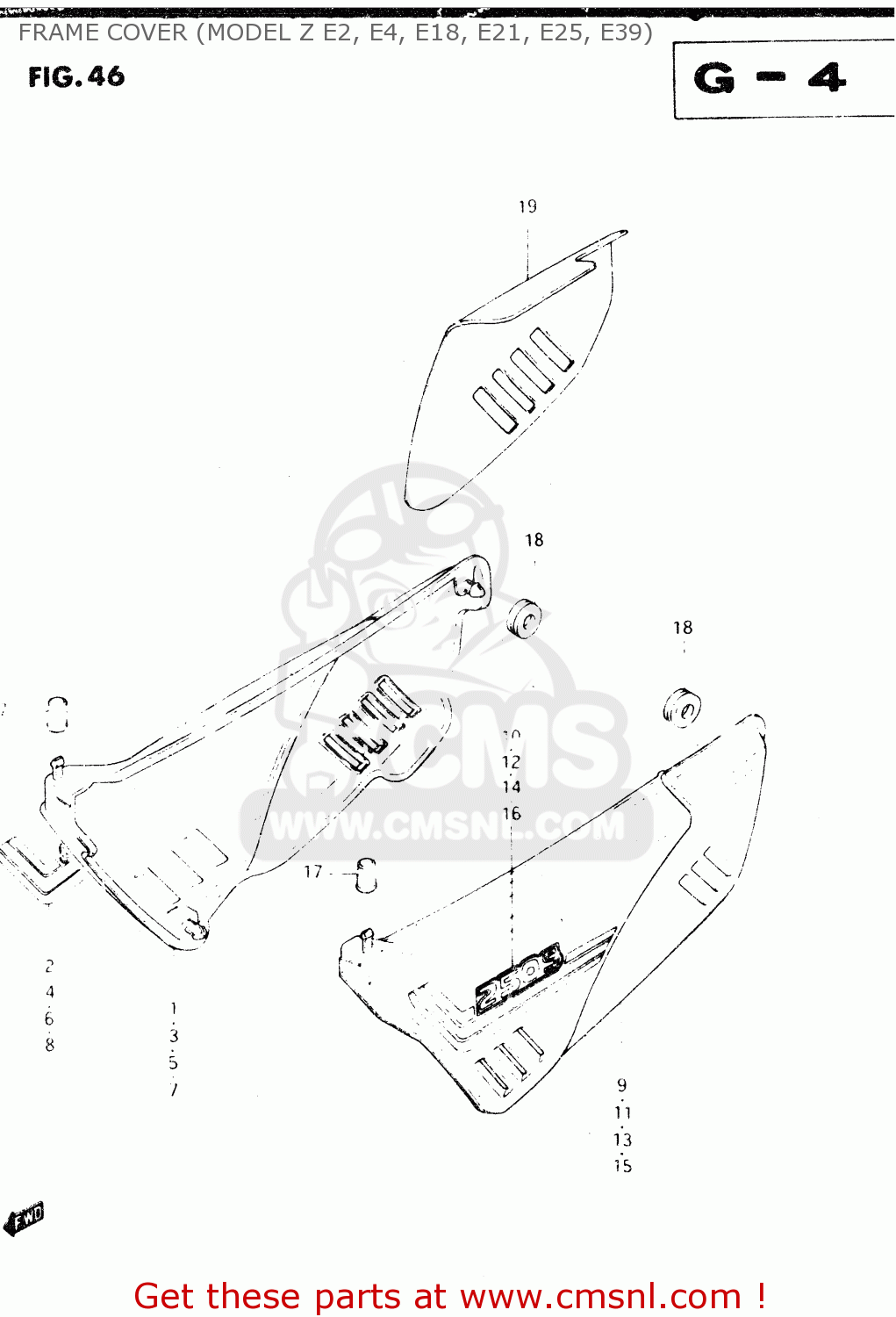

Frame cover (model z e2, e4, e18, e21, e25, e39) diagram DR250S 1983 (D)

FRAME COVER (MODEL Z E2, E4, E18, E21, E25, E39) DR250S 1983 (D)
FRAME COVER (MODEL Z E2, E4, E18, E21, E25, E39) DR250S 1983 (D)
FRAME COVER (MODEL Z E2, E4, E18, E21, E25, E39) DR250S 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
4711138210019
ref: 1
COVER, FRAME RH (BLACK)
€ 67.00
2
681363821083W
ref: 2
TAPE, RH
€ 0.00
3
471113821004Y
ref: 3
COVER, FRAME RH (BLUE)
€ 67.00
4
681363821084L
ref: 4
TAPE, RH
€ 20.00
5
4711138210163
ref: 5
COVER, FRAME RH (YELLOW)
€ 67.00
6
681363821083U
ref: 6
TAPE, RH
€ 13.50
7
471113821007P
ref: 7
COVER,FRAME,RIGHT
€ 67.00
8
681363821085A
ref: 8
TAPE, RH
€ 0.00
9
4721138220019
ref: 9
COVER, FRAME LH (BLACK)
€ 57.50
10
681463821083W
ref: 10
TAPE, LH
€ 0.00
11
472113822004Y
ref: 11
COVER, FRAME LH (BLUE)
€ 57.50
12
681463821084L
ref: 12
TAPE, LH
€ 15.00
13
4721138220163
ref: 13
COVER, FRAME LH (YELLOW)
€ 57.50
14
681463821083U
ref: 14
TAPE, LH
681463821083U
€ 13.50
15
472113822007P
ref: 15
COVER, FRAME LH (RED)
€ 57.50
16
681463821085A
ref: 16
TAPE, LH
€ 0.00
17
0932003005
ref: 17
CUSHION
0932003005
€ 2.00
18
0932008018
ref: 18
CUSHION
0932008018
€ 4.00
19
4712238201
ref: 19
HEAT SHIELD,FRAME COVER
€ 34.00
