WIRING HARNESS
DR250S 1983 (D)

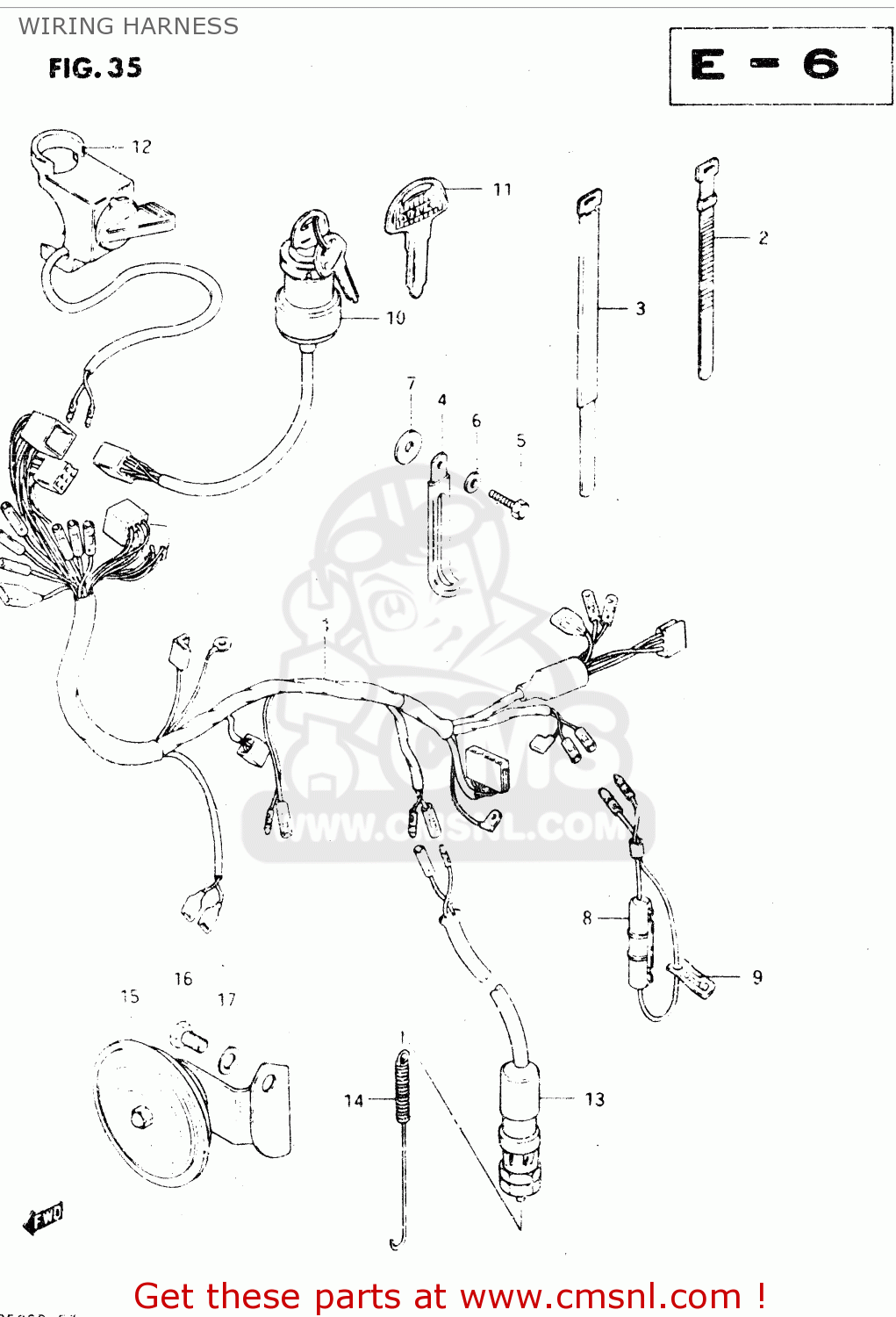

Wiring harness diagram DR250S 1983 (D)
WIRING HARNESS DR250S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661038210
ref: 1-1
HARNESS,WIRING
€ 0.00
1-2
3661038200
ref: 1-2
E2,E4,E18,E21,E22,E2
WIRING HARNESS
€ 99.50
2
0940712402
ref: 2
CLAMP(L:120)
€ 3.00
3-1
0940711301
ref: 3-1
CLAMP L:110
€ 6.00
3-2
0940718301
ref: 3-2
CLAMP
€ 6.00
3-3
0940725301
ref: 3-3
CLAMP(L:250)
€ 4.50
4-1
0940406401
ref: 4-1
CLAMP L:35
€ 2.50
4-2
0940406412
ref: 4-2
CLAMP
€ 2.50
4-3
0940408414
ref: 4-3
CLAMP
€ 3.50
5
0110706168
ref: 5
BOLT, UPPER
€ 3.00
6
0832221068
ref: 6
WASHER
€ 2.00
7
0916006007
ref: 7
WASHER
€ 2.00
8
3674015010
ref: 8
BOX ASSEMBLY,FUSE
€ 11.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
3711037171
ref: 10
SWITCH ASSEMBLY,IGNITION
€ 81.00
11
3714519710
ref: 11
OPT
KEY,BLANK
€ 13.00
12
3783038200
ref: 12
SWITCH ASSY,ENGINE STOP
€ 72.00
13
3774004571
ref: 13
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
14
0244306019
ref: 14
SPRING
€ 0.00
15-1
3850038211
ref: 15-1
HORN ASSEMBLY
€ 0.00
15-2
3850038281
ref: 15-2
E2,E4,E18,E21,E22,E2
HORN ASSY
€ 55.50
15-3
3850038291
ref: 15-3
E39
HORN ASSY
€ 0.00
16
0110706108
ref: 16
BOLT
€ 2.00
17
0832221068
ref: 17
WASHER
€ 2.00
up
all assemblies
