FOOTREST

DR250S 1983 (D)

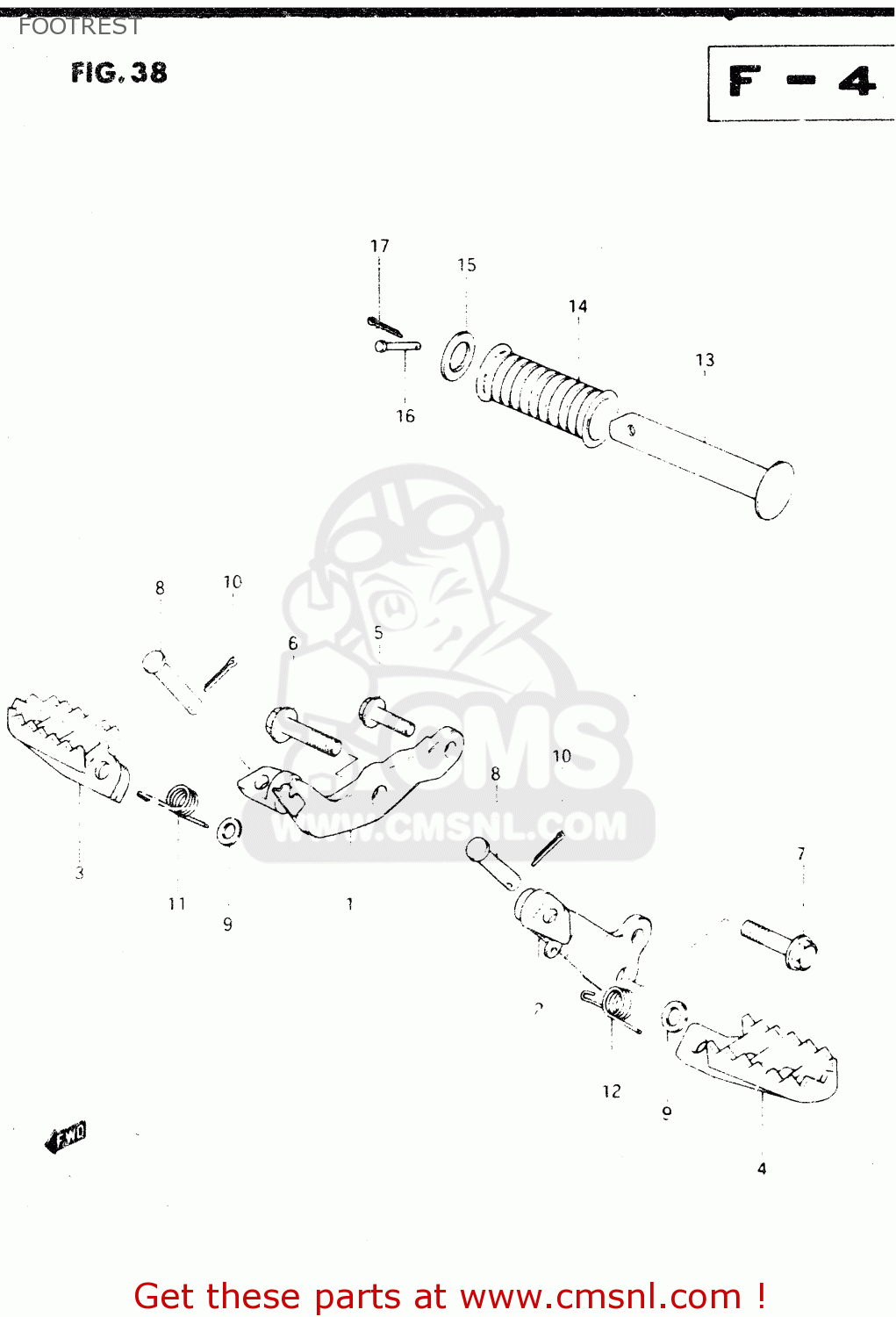

Footrest diagram DR250S 1983 (D)

FOOTREST DR250S 1983 (D)

FOOTREST DR250S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

4351038200
ref: 1

BAR,FRONT FOOTREST

€ 25.00

2

4352038200
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 41.50

3

4355137202
ref: 3

FOOTREST,RIGHT

€ 31.00

4

4356140401
ref: 4

FOOTREST

€ 24.50

5

0152710207
ref: 5

BOLT

€ 3.00

6

0152712305
ref: 6

BOLT, RH

€ 3.50

7

0152712255
ref: 7

BOLT

€ 3.00

8

0920008035
ref: 8

PIN

€ 6.50

9

0832221088
ref: 9

WASHER

€ 2.00

10

0411120208
ref: 10

PIN 20X20

€ 1.50

11

0944814022
ref: 11

SPRING

€ 2.00

12

0944814018
ref: 12

SPRING

€ 4.00

13

4361003001
ref: 13

BAR,FOOTREST RUBBER

€ 5.50

14

4361203001
ref: 14

RUBBER,PILLION FOOTREST

€ 3.50

15

0916019006
ref: 15

WASHER (19.5X32X2)

€ 2.00

16

0920006010
ref: 16

PIN

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50
