SPEEDOMETER - TACHOMETER
DR250S 1983 (D)

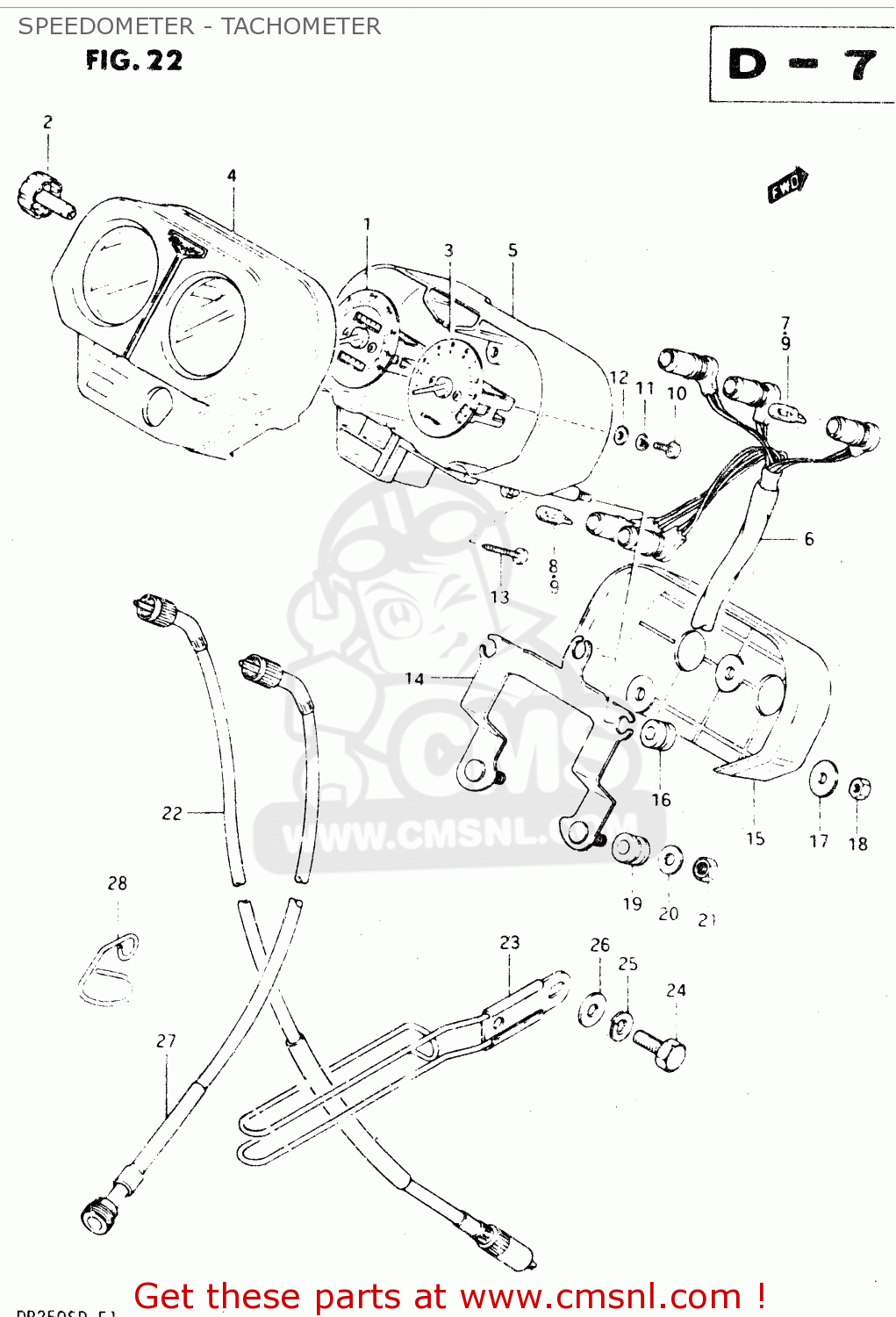

Speedometer - tachometer diagram DR250S 1983 (D)
SPEEDOMETER - TACHOMETER DR250S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412038200
ref: 1-1
KILO SCALE
METER,SPEED (KM)
€ 180.00
1-2
3412038230
ref: 1-2
MILE/KILO SCALE
SPEEDOMETER
€ 0.00
2
3498038200
ref: 2
KNOB,TRIP
€ 6.00
3
3422038200
ref: 3
TACHOMETER
€ 126.50
4
3415138200
ref: 4
HOOD, METER
€ 41.50
5
3411138200
ref: 5
CASE,INNER
€ 43.00
6
3417338200
ref: 6
SOCKET
€ 46.50
7
0947106052
ref: 7
BULB(6V1.7W,STANLEY,A61A)
€ 2.50
8
0947106053
ref: 8
BULB(6V,3W)
€ 2.50
9
0947112028
ref: 9
E2,E4,E18,E21,E22,E2
BULB(12V3.4W,T10)
€ 3.50
10
0211204108
ref: 10
SCREW 4X10
€ 2.00
11
0832121048
ref: 11
LOCK WASHER
€ 2.00
12
0832221048
ref: 12
WASHER
€ 2.00
13
0913204005
ref: 13
SCREW
€ 2.00
14
3495038200
ref: 14
BRACKET
€ 32.50
15
3415238200
ref: 15
COVER
€ 22.00
16
3418938200
ref: 16
CUSHION
€ 4.00
17
0916005017
ref: 17
WASHER (5.5X16X1.2)
€ 2.50
18
0831022058
ref: 18
NUT
€ 2.50
19
3495615100
ref: 19
CUSHION
€ 4.00
20
0916006007
ref: 20
WASHER
€ 2.00
21
0831011068
ref: 21
NUT
€ 2.50
22
3491005210
ref: 22
CABLE ASSY,SPE
€ 75.00
23-1
5862030501
ref: 23-1
MODEL Z
GUIDE,CABLE
€ 16.00
23-2
3493005200
ref: 23-2
MODEL D
GUIDE,CABLE
€ 16.00
24
0110708128
ref: 24
BOLT 8X12
€ 2.50
25
0832121088
ref: 25
LOCK WASHER
€ 2.00
26
0832211088
ref: 26
WASHER
€ 2.00
27
3494044111
ref: 27
CABLE ASSEMBLY,TACHOMETER
€ 49.00
28
5862117200
ref: 28
GUIDE
€ 5.50
