prices are in EUR
ref
part #
description
quantity
1-1

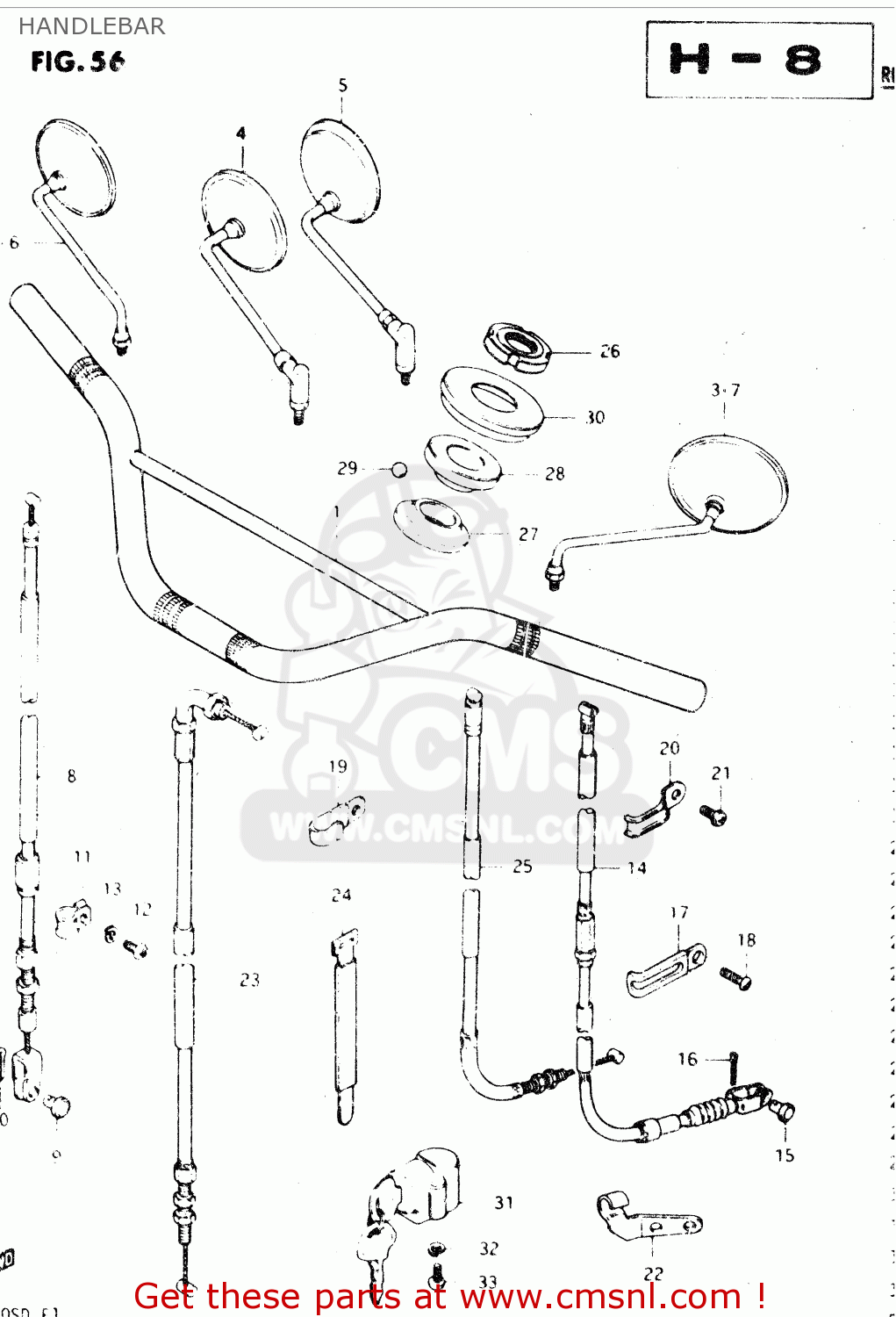

HANDLEBAR (CHAMPAGE GOLD)
1-2
HANDLEBAR
2
MIRROR ASSEMBLY,RIGHT
3
MIRROR ASSEMBLY,LEFT
4
MIRROR ASSY,RH
6-1
MIRROR ASSEMBLY,RIGHT
7-1
MIRROR ASSEMBLY,LEFT
8-1
CABLE ASSEMBLY,FRONT BRAKE
8-2
CABLE ASSY,FR BRAKE
9
PIN(L:17.5)
10
PIN
11
CLAMP,FR BRAKE CABLE
12
SCREW
13
LOCK WASHER
14
CABLE ASSEMBLY,CLUTCH
15
PIN(L:13)
16
PIN
17
CLAMP
18
SCREW 6X12
19
CLAMP
23
CABLE ASSY,THROTTLE NO.1
24
CLAMP(L:250)
25-1
CABLE ASSEMBLY,DECOMPRESSION
25-2
CABLE ASSEMBLY,DECOMPRESSION
26
NUT,STEERING STEM
27
RACE,STEERING,INNER,UPPER
28
RACE,STEERING,OUTER,UPPER
29
BALL
30
SEAL,STEERING UPR DUST
31
LOCK ASSY,STEERING
32
LOCK WASHER
