CRANK BALANCER

DR250S 1983 (D)

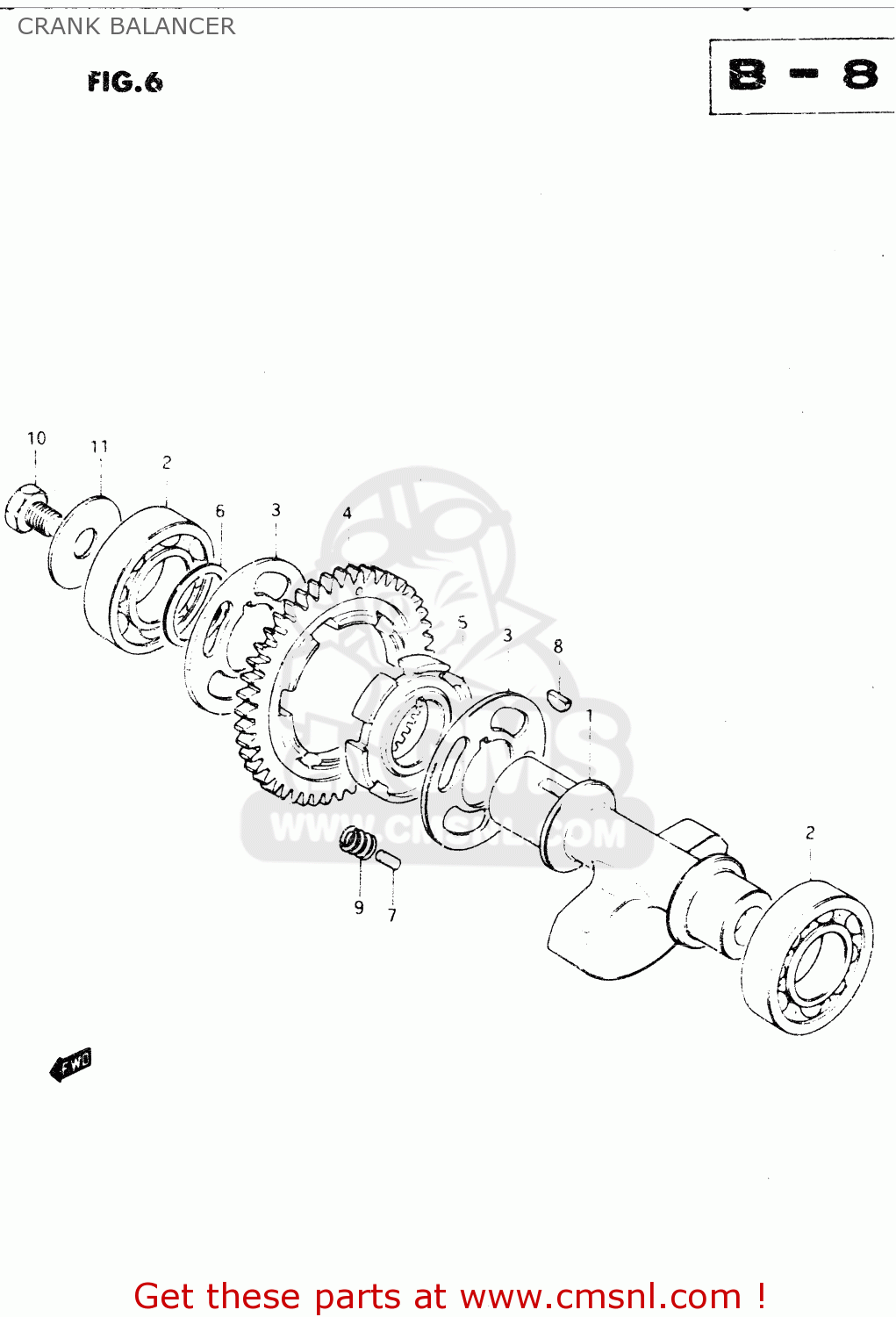

Crank balancer diagram DR250S 1983 (D)

CRANK BALANCER DR250S 1983 (D)

CRANK BALANCER DR250S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

1265138200
ref: 1

BALANCER,CRANKSHAFT

€ 101.50

2

0926225047
ref: 2

BEARING

€ 29.00

3

1266338200
ref: 3

WASHER

€ 6.00

4

1266638200
ref: 4

GEAR,CRANK BAL DRIVEN(NT:46)

€ 128.00

5

1266938200
ref: 5

RACE,CRK BAL DRIVEN GR INNER

€ 37.00

6

0822125365
ref: 6

SHIM

€ 4.50

7

0920204013
ref: 7

PIN

€ 3.00

8

0834131049
ref: 8

KEY 4MM

€ 3.50

9

0944009015
ref: 9

SPRING

€ 25.50

10

0110712168
ref: 10

BOLT ,12X16

€ 3.50

11

0916012034
ref: 11

WASHER

€ 5.50
