FRONT WHEEL
DR250S 1983 (D)

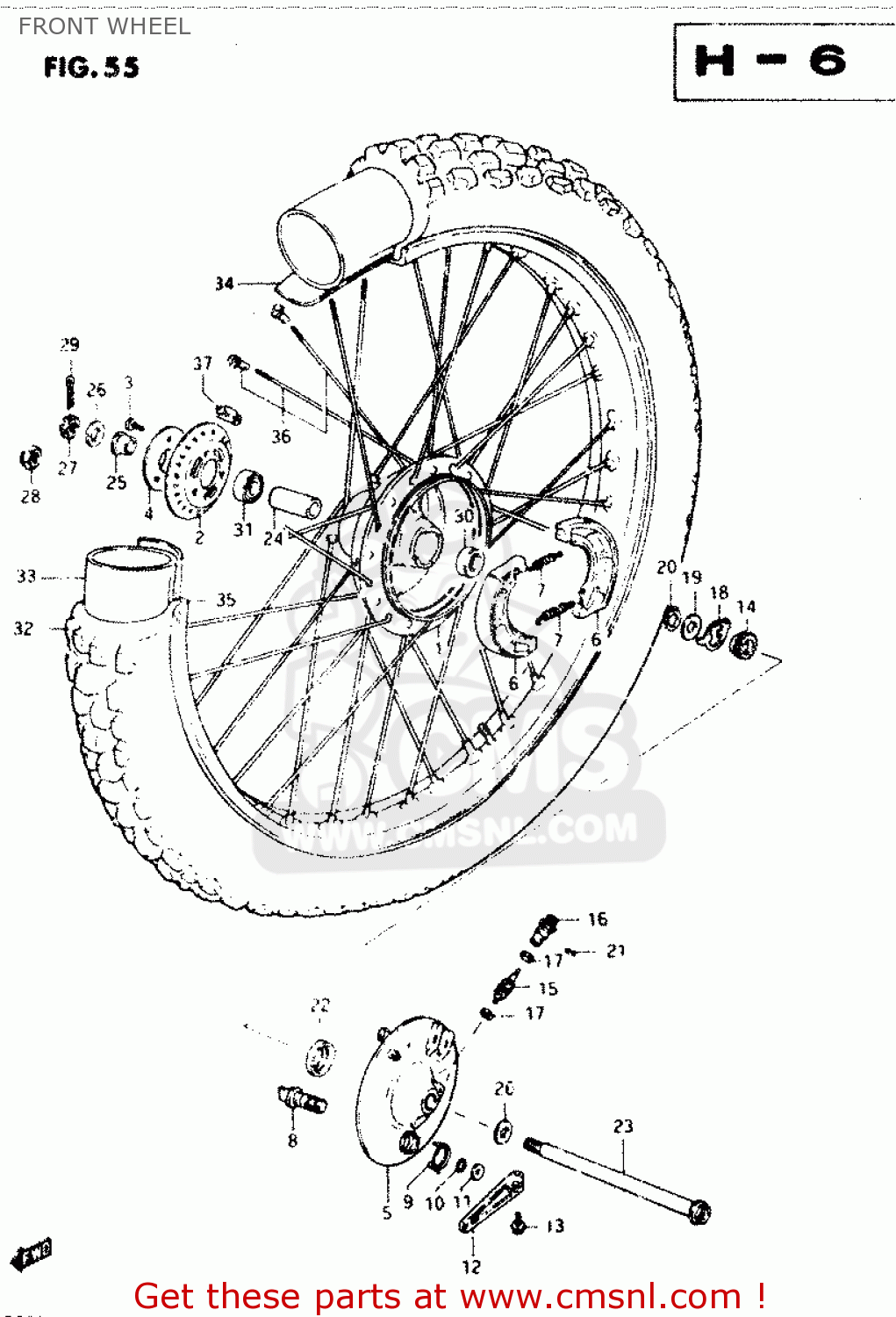

Front wheel diagram DR250S 1983 (D)
FRONT WHEEL DR250S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411038200
ref: 1-1
MODEL Z
HUB,FRONT
€ 211.00
1-2
5411038201
ref: 1-2
MODEL D
DRUM,FRONT HUB
€ 211.00
2
5411238200
ref: 2
FLANGE,FR HUB,R
€ 15.50
3
0151706168
ref: 3
BOLT
€ 1.50
4
5415138200
ref: 4
PLATE,FRONT HUB BEARING
€ 5.00
5
5421038200
ref: 5
PANEL,FRONT HUB
€ 0.00
6
6441040301
ref: 6
SHOE,BRAKE (NAS)
€ 75.50
7
0944307001
ref: 7
SPRING(L:34)
€ 2.50
8
5444138200
ref: 8
CAM,BRAKE
€ 10.00
9
0944832007
ref: 9
SPRING
€ 8.00
10
0928014003
ref: 10
O-RING (D:2.4 ID:13.8)
€ 3.50
11
0916014001
ref: 11
WASHER (14.5X22X1.6)
€ 2.50
12
5445132400
ref: 12
LEVER,FRONT BRAKE CAM
€ 48.00
13
0151706258
ref: 13
BOLT
€ 2.50
14
5461128402
ref: 14
GEAR,SPEEDOMETER
€ 26.00
15
5462128401
ref: 15
PINION,SPEEDOMETER
€ 15.50
16
5463201001
ref: 16
BUSH,METER GEAR OUTER
€ 9.00
17
0916005001
ref: 17
WASHER (5.1X9X0.4)
€ 2.00
18
5466129300
ref: 18
DRIVER,SPEEDOMETER GEAR
€ 4.00
19
0916018002
ref: 19
WASHER(18.5X24X1)
€ 2.00
20
0833111189
ref: 20
CIRCLIP
€ 2.00
21
0913403101
ref: 21
SCREW
€ 1.50
22
0928543001
ref: 22
OIL SEAL (43X58X7)
€ 10.00
23
5471138200
ref: 23
AXLE,REAR
€ 24.00
24
0918012041
ref: 24
SPACER (12.6X19X52)
€ 4.50
25
5474141100
ref: 25
SPACER,FR AXLE,R
€ 10.00
26
0832211128
ref: 26
WASHER
€ 2.00
27
0831441128
ref: 27
NUT, REAR AXLE
€ 2.50
28
0831921128
ref: 28
E22
NUT 12MM
€ 4.00
29
0411130308
ref: 29
COTTER PIN
€ 1.50
30
0814362017
ref: 30
BEARING
€ 11.50
31
0812362017
ref: 31
BEARING, RH
€ 15.00
32-1
5510038210
ref: 32-1
IRC
TIRE,FRONT
€ 0.00
32-2
5510038230
ref: 32-2
BS
TIRE,FRONT
€ 163.00
33
5520016510
ref: 33
TUBE
€ 32.50
34
5526116510
ref: 34
25X21
PROTECTOR,WHEEL,INNER
€ 5.00
35-1
5531138200
ref: 35-1
MODEL Z
RIM,FRONT WHEEL
€ 216.50
35-2
5531138230
ref: 35-2
MODEL Z E2,E4,E18,E2
RIM,FRONT WHEEL (1.60X21)(
€ 216.50
36
5532038200
ref: 36
SPOKE SET,FRONT
€ 42.00
37
5541130000
ref: 37
BALANCER,WHEEL (50G)
€ 4.50
