CHAIN CASE

DR400S 1981 (X)

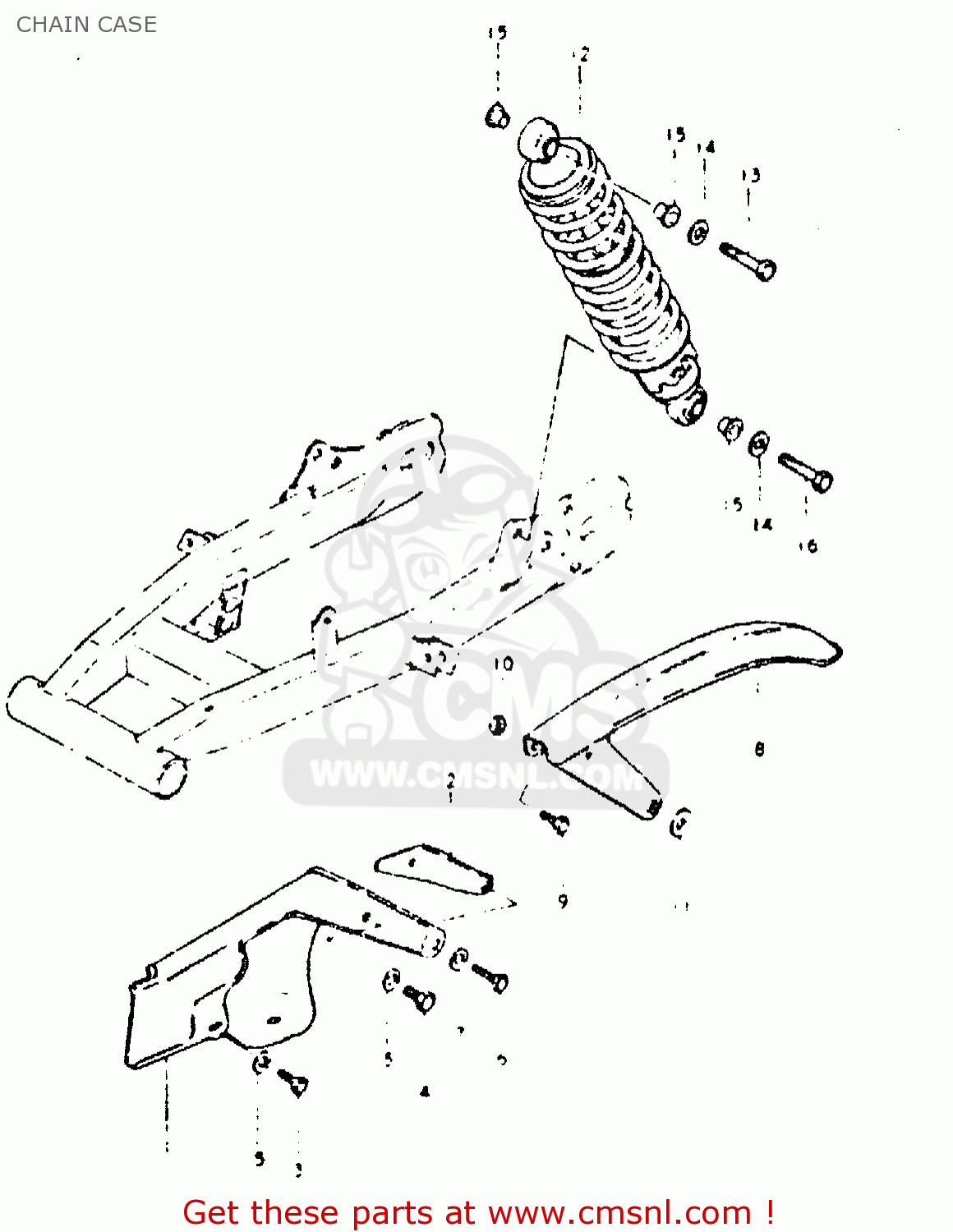

Chain case diagram DR400S 1981 (X)

CHAIN CASE DR400S 1981 (X)

CHAIN CASE DR400S 1981 (X)

prices are in EUR

ref

part #

description

quantity

1

6131137200
ref: 1

CASE,CHAIN

€ 40.00

2

6138037200
ref: 2

REINFORCEMENT,CHAIN CASE

€ 8.50

3

0110706108
ref: 3

BOLT

€ 2.00

4

0910006011
ref: 4

BOLT(6X8)

€ 2.50

5

0916906010
ref: 5

WASHER

€ 3.00

6

0110706208
ref: 6

BOLT

€ 2.00

7

0832221068
ref: 7

WASHER

€ 2.00

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

6210037210
ref: 12

SHOCK ABSORBER, REAR

€ 281.50

13

0910008150
ref: 13

BOLT

€ 2.00

14

0832211088
ref: 14

WASHER

€ 2.00

15

6231640200
ref: 15

SPACER,RR SHK ABS INNER

€ 7.50

16

0910008165
ref: 16

BOLT

€ 5.00
