REAR COMBINATION LAMP
DR400S 1981 (X)

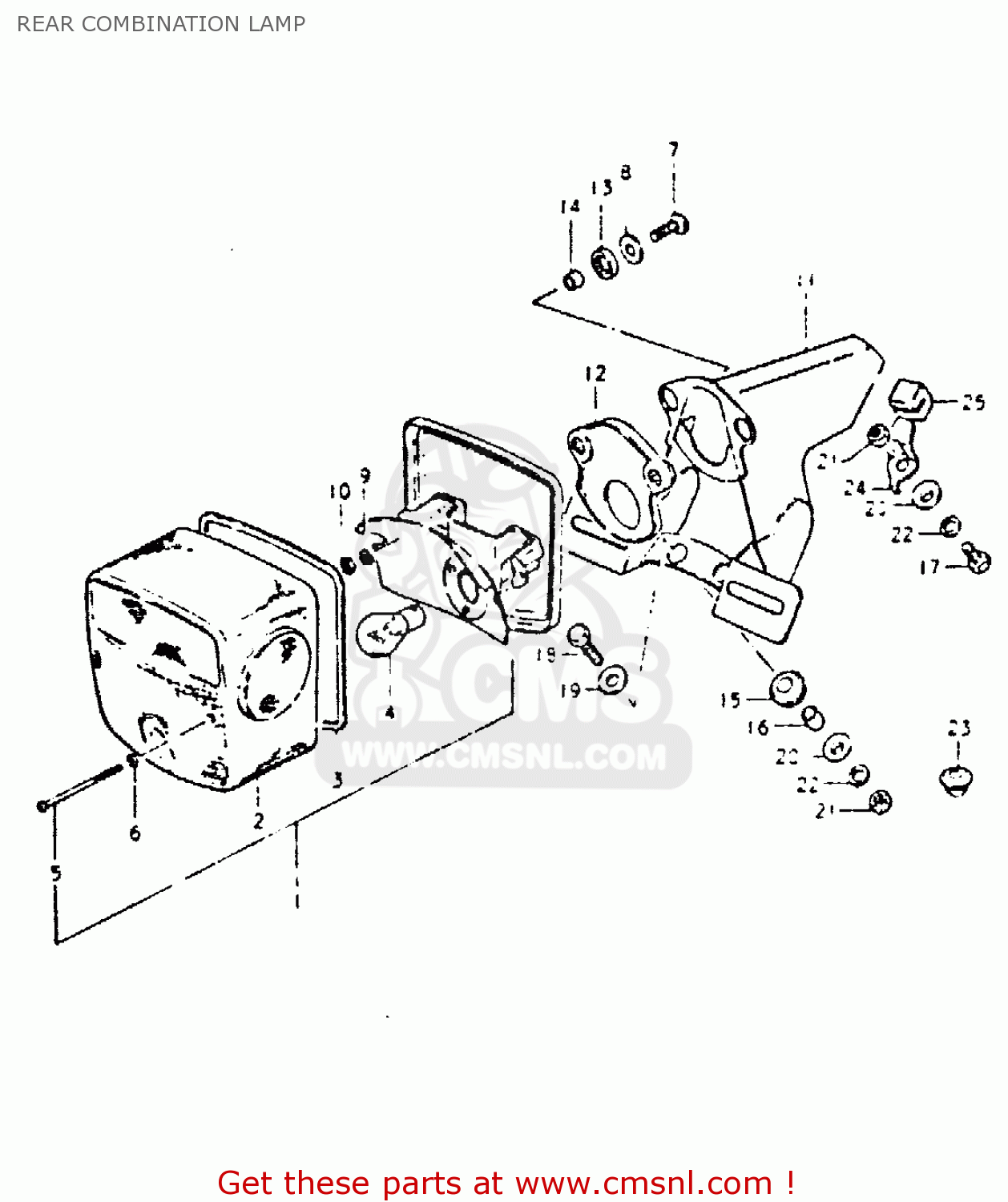

Rear combination lamp diagram DR400S 1981 (X)
REAR COMBINATION LAMP DR400S 1981 (X)
×
prices are in EUR
ref
part #
description
quantity
1
3572037210
ref: 1
LAMP UNIT, TAIL
€ 0.00
2
3571230512
ref: 2
LENS
€ 65.50
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4
0947106030
ref: 4
BULB(6V32/3CP,STANLEY)
€ 12.50
5
0912504002
ref: 5
SCREW (4X55)
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3572532460
ref: 7
SCREW
€ 2.00
8
3572732410
ref: 8
WASHER,REAR COMBINATION LAMP
€ 0.00
9
0831011068
ref: 9
NUT
€ 2.50
10
0832121068
ref: 10
LOCK WASHER
€ 2.50
11
3573037210
ref: 11
BRACKET SET
€ 64.00
12
3576537210
ref: 12
CUSHION
€ 0.00
13
3576436510
ref: 13
CUSHION
€ 2.50
14
3576637210
ref: 14
SPACER,REAR COMBINATION LAMP
€ 0.00
15
3576532410
ref: 15
CUSHION,REAR COMBINATION LAMP
€ 3.00
16
3576637120
ref: 16
SPACER
€ 2.50
17
0110706208
ref: 17
BOLT
€ 2.00
18
0110706308
ref: 18
BOLT
€ 2.50
19
0916006027
ref: 19
WASHER (6.5X20X1.2)
€ 2.00
20
0915906016
ref: 20
WASHER
€ 0.00
21
0831011068
ref: 21
NUT
€ 2.50
22
0832221068
ref: 22
WASHER
€ 2.00
23
0930807004
ref: 23
GROMMET
€ 2.50
24
3579337200
ref: 24
PLATE,TAIL LAMP
€ 2.00
25
3571737200
ref: 25
CUSHION,REAR COMBINATION LAMP
€ 3.00
