FRONT FORK (DR400SX)

DR400S 1981 (X)

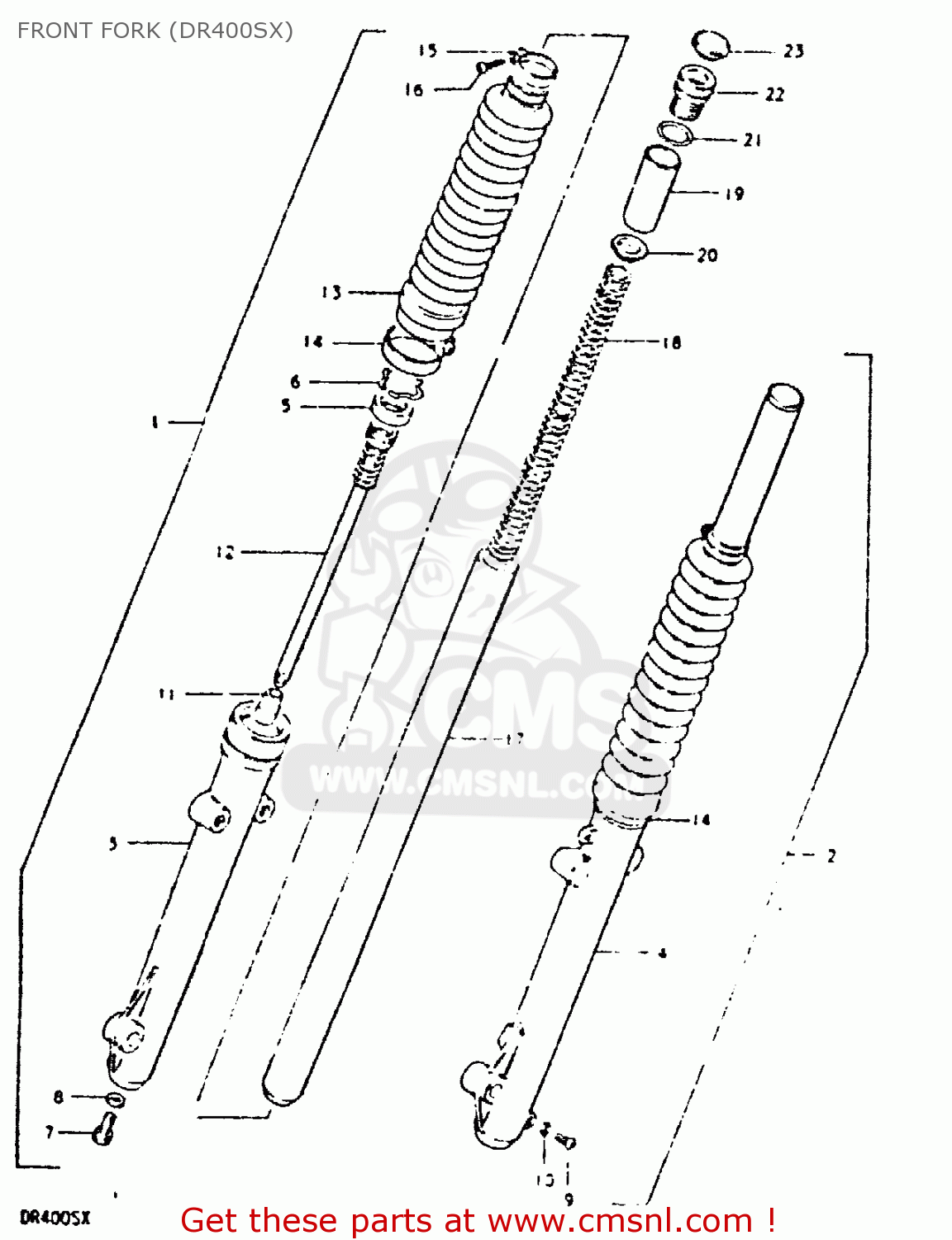

Front fork (dr400sx) diagram DR400S 1981 (X)

FRONT FORK (DR400SX) DR400S 1981 (X)
FRONT FORK (DR400SX) DR400S 1981 (X)
FRONT FORK (DR400SX) DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1
5110337210
ref: 1
DAMPER ASSY, RH
€ 215.50
2
5110437240
ref: 2
DAMPER ASSY, LH
€ 192.00
3
5113030901
ref: 3
TUBE,OUTER,RIGHT
€ 0.00
4
5114037210
ref: 4
OUTER TUBE, LH
€ 0.00
5
5115341211
ref: 5
OIL SEAL,FRONT FORK
5115341211
€ 28.50
6
5115630400
ref: 6
5115630400
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
8
5114841310
ref: 8
GASKET (NAS)
5114841310
€ 2.50
9
0211204088
ref: 9
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
11
5119541210
ref: 11
PIECE,OIL LOCK
5119541210
€ 12.00
12
5114630400
ref: 12
CYLINDER,FRONT FORK
€ 0.00
13
5157132500
ref: 13
BOOT
€ 33.50
14
5157341410
ref: 14
BAND,FRONT FORK COVER
5157341410
€ 10.00
15
5157541410
ref: 15
BAND,BOOT
5157541410
€ 8.00
16
0211204168
ref: 16
SCREW
0211204168
€ 1.00
17
5111037210
ref: 17
INNER TUBE
€ 146.50
18
5117137210
ref: 18
SPRING
€ 0.00
29
5117641010
ref: 29
SPACER,SPRING
€ 0.00
20
5117238010
ref: 20
GUIDE,FRONT FORK SPRING C
5117238010
€ 9.50
21
5111716310
ref: 21
O RING
5111716310
€ 4.50
22
5135130520
ref: 22
CAP,FORK INNER TUBE
5135130520
€ 9.00
23
5118932400
ref: 23
CAP,FRONT FORK
5118932400
€ 11.50
