TURN SIGNAL LAMP (E16, E18)
DR400S 1981 (X)

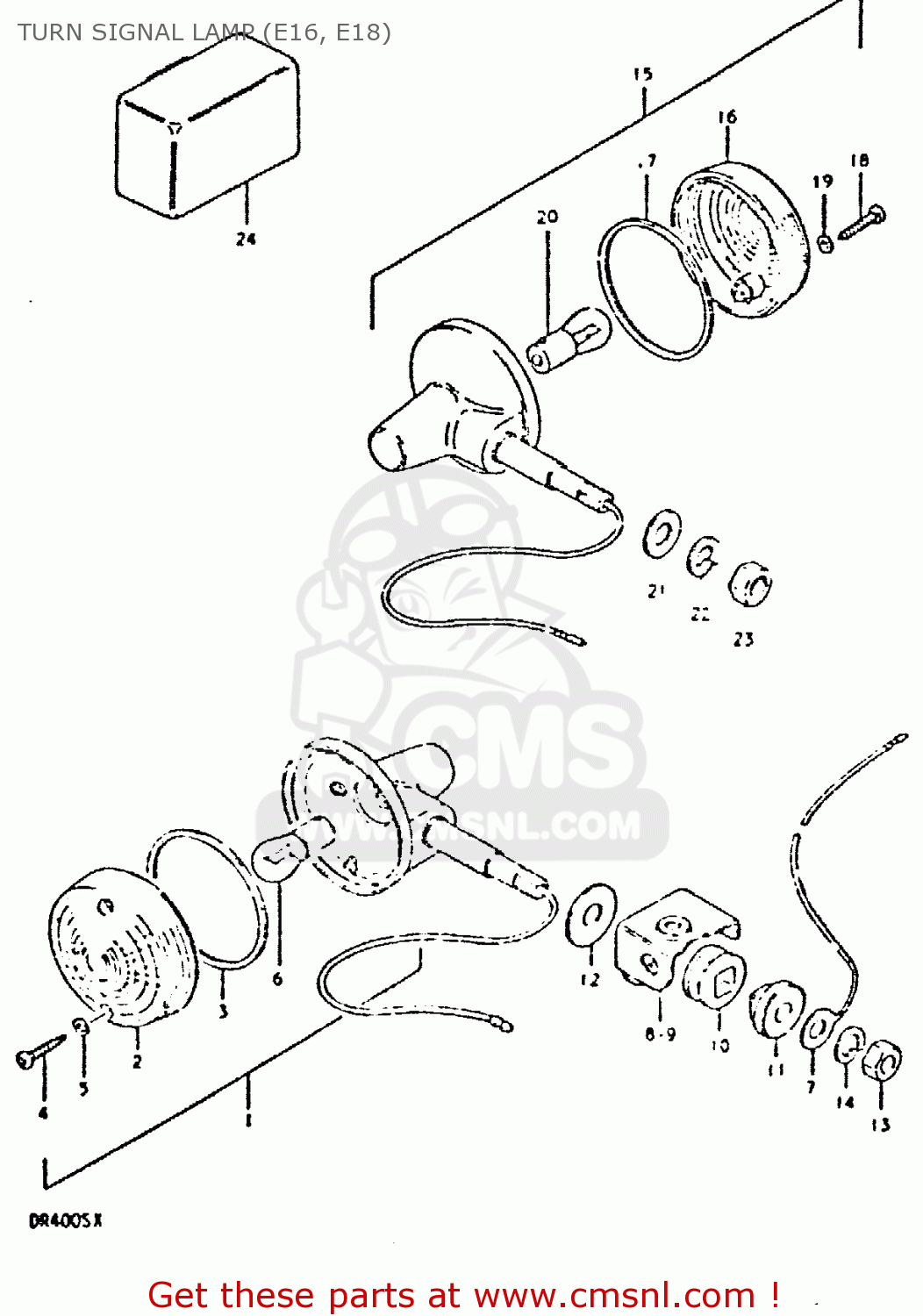

Turn signal lamp (e16, e18) diagram DR400S 1981 (X)
TURN SIGNAL LAMP (E16, E18) DR400S 1981 (X)
×
prices are in EUR
ref
part #
description
quantity
1
3560148580999
ref: 1
TO 35601-48591-999
LAMP, FRONT TURN SIGANL
€ 69.00
2
3561228620
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
3562347610
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106041
ref: 6
BULB (6V,21W)
€ 3.50
7
3666033000
ref: 7
LEAD WIRE,EARTH
€ 5.00
8
512513090208C
ref: 8
BRACKET, FRONT RH
€ 4.00
9
512523090208C
ref: 9
BRACKET, FRONT LH
€ 11.00
10
3569032200
ref: 10
CUSHION
€ 38.50
11
3569532400
ref: 11
SPACER,TURN SIGNAL LAMP
€ 4.50
12
0916010006
ref: 12
WASHER (10.5X30X2.3)
€ 2.50
13
0831011108
ref: 13
NUT
€ 2.50
14
0832121108
ref: 14
LOCK WASHER
€ 2.00
15
3560346381
ref: 15
TO 35601-48080
LAMP, REAR TURN SIGNAL
€ 0.00
16
3565239181
ref: 16
LENS
€ 0.00
17
3561328620
ref: 17
GASKET (NAS)
€ 7.00
18
3562347610
ref: 18
SCREW
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
€ 2.00
20
0947106041
ref: 20
BULB (6V,21W)
€ 3.50
21
0832211108
ref: 21
WASHER
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
€ 2.00
23
0831022108
ref: 23
NUT
€ 2.50
24
3861048611
ref: 24
RELAY, TURN SIGNAL
€ 51.50
