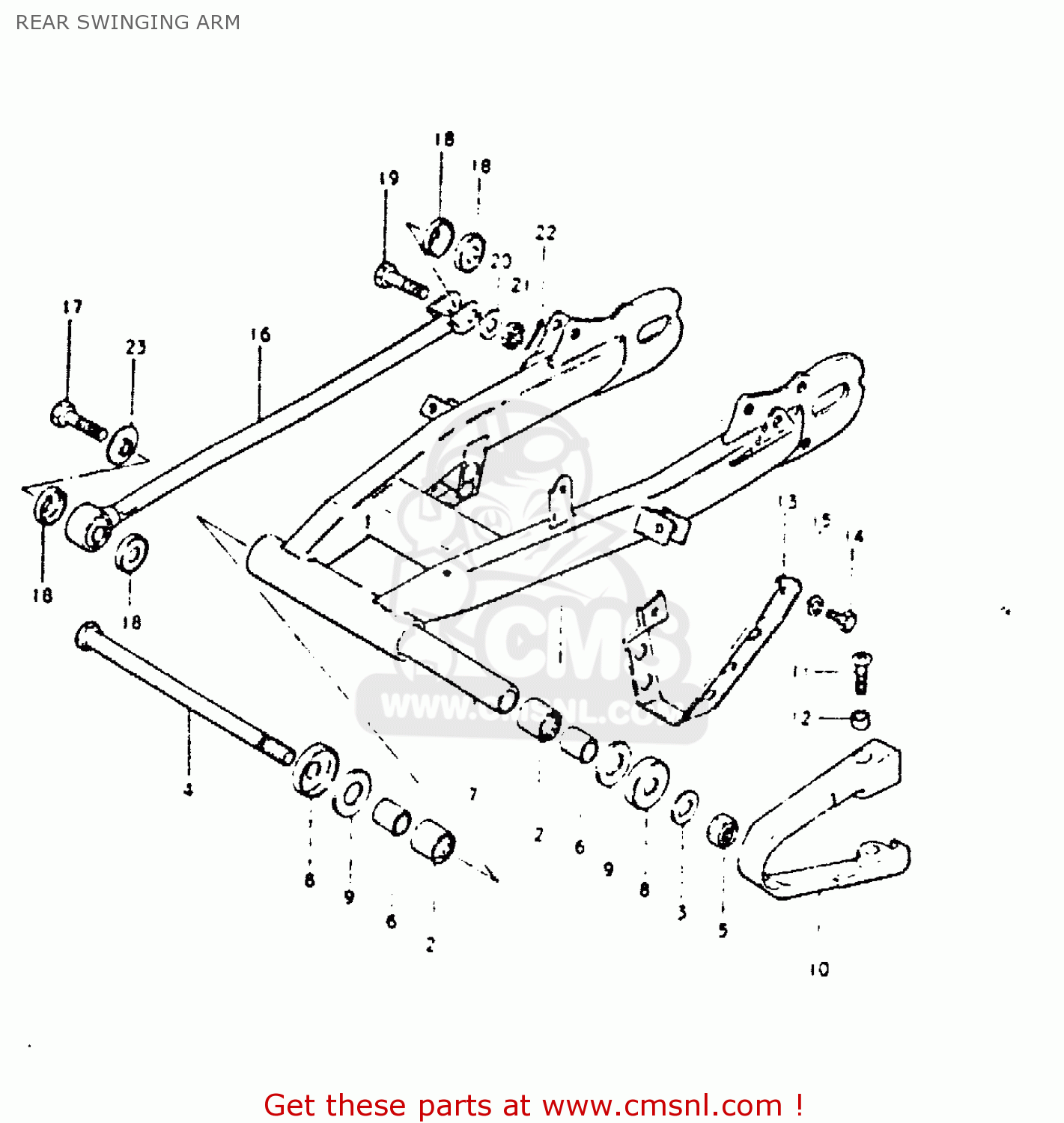

REAR SWINGING ARM

ref

part #

description

quantity

1-1

611003782008C
ref: 1-1
TO 61100-37821-08C M

REAR SWINGING ARM SET

€ 215.00

1-2

611003782208C
ref: 1-2
MODEL X

REAR SWINGING ARM

€ 215.00

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

0832211168
ref: 3

WASHER

€ 2.00

4-1

6121137200
ref: 4-1
TO 61211-37201, MODE

SHAFT,REAR SWING ARM

€ 33.00

4-2

6121137201
ref: 4-2
MODEL X

SHAFT,REAR SWING ARM

€ 33.00

5

0831921168
ref: 5

NUT 16MM

€ 5.00

6

6125132410
ref: 6

SPACER,RR SWGARM PIVOT

€ 8.50

7

0918016018
ref: 7

SPACER (16.2X21.7X142)

€ 12.50

8

6126232410
ref: 8

COVER,RR SWGARM DUST SEAL

€ 10.00

9

0821116341
ref: 9

WASHER

€ 2.00

10

6127337201
ref: 10

BUFFER,CHAIN TOUCH DEFLECTOR

€ 15.00

11

6127540200
ref: 11

SCREW,CHAIN TOUCH DEFEND

€ 1.50

12

0918005015
ref: 12

SPACER (5.5X8X4)

€ 3.00

13

6134130500
ref: 13

GUIDE,CHAIN

€ 13.00

14

0110708128
ref: 14

BOLT 8X12

€ 2.50

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16-1

643103720008C
ref: 16-1
MODEL T

TORQUE LINK,REAR

€ 45.00

16-2

643103720108C
ref: 16-2
MODEL X

LINK,REAR TORQUE

€ 45.00

17

0910008140
ref: 17

BOLT(8X25)

€ 2.00

18-1

6433940400
ref: 18-1
MODEL T

6433940400

18-2

6433940401
ref: 18-2
MODEL X

6433940401

19

0910108003
ref: 19

BOLT 8X28

€ 2.00

20

0832211088
ref: 20

WASHER

€ 2.00

21

0831441088
ref: 21

NUT 8MM

€ 2.50

22

0411120208
ref: 22

PIN 20X20

€ 1.50

23

0916908025
ref: 23

WASHER

€ 0.00
