FOOTREST

DR400S 1981 (X)

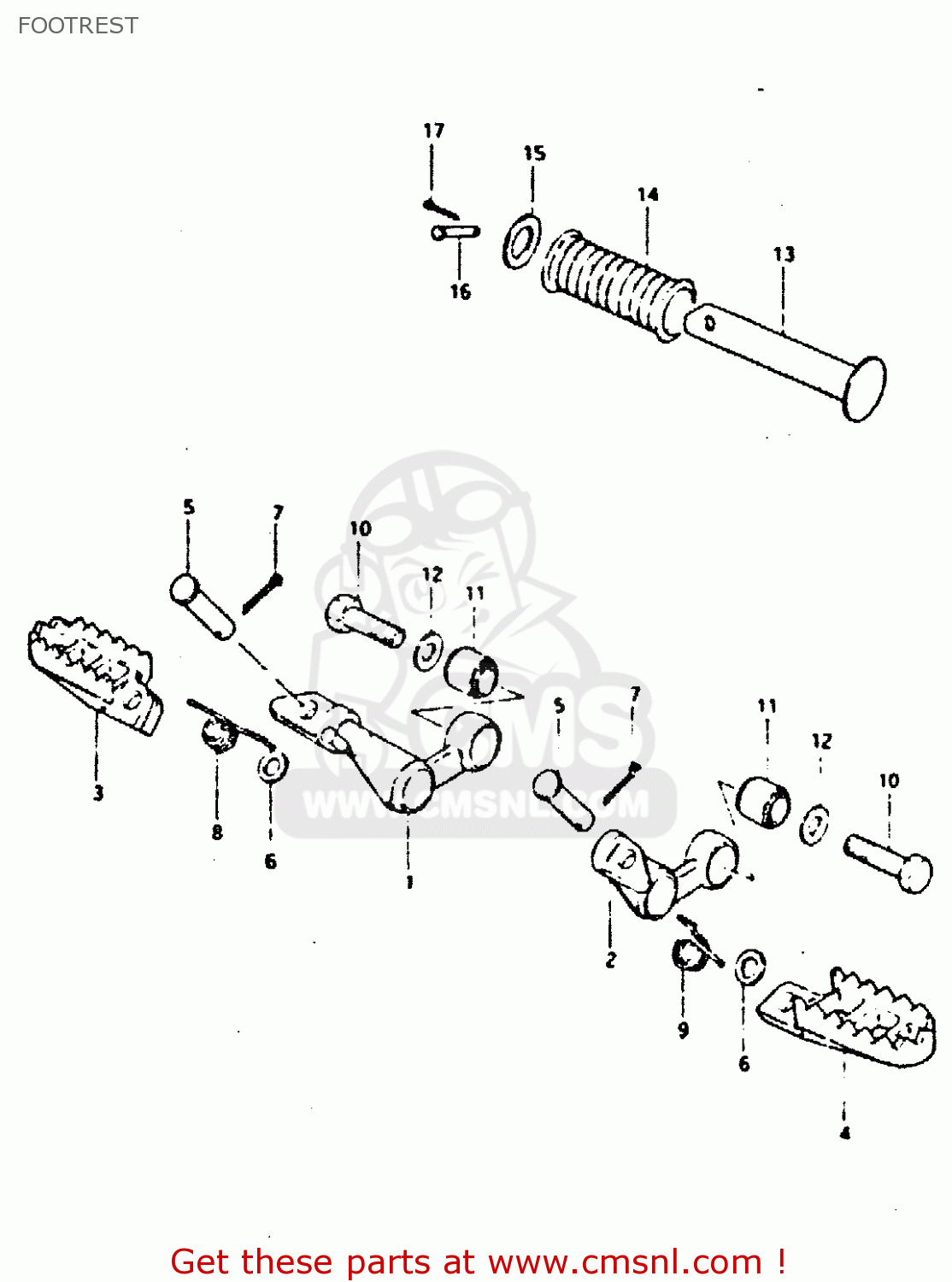

Footrest diagram DR400S 1981 (X)

FOOTREST DR400S 1981 (X)
FOOTREST DR400S 1981 (X)
FOOTREST DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1-1
4351037200
ref: 1-1
MODEL T
BAR,FRONT FOOTREST
4351037200
€ 26.00
1-2
4351037201
ref: 1-2
MODEL X
BAR,FRONT FOOTREST
4351037201
€ 26.00
2-1
4352037200
ref: 2-1
MODEL T
BAR,FRONT FOOTREST,LEFT
€ 27.50
2-2
4352037201
ref: 2-2
MODEL X
BAR,FRONT FOOTREST,LEFT
€ 27.50
3
4355137200
ref: 3
FOOTREST,RIGHT
4355137200
€ 31.00
4
4356140400
ref: 4
FOOTREST
€ 24.50
5
0920008035
ref: 5
PIN
0920008035
€ 6.50
6
0832221088
ref: 6
WASHER
0832221088
€ 2.00
7
0411130208
ref: 7
PIN 30X20
0411130208
€ 1.50
8
0944814016
ref: 8
SPRING
€ 3.50
9
0944814017
ref: 9
SPRING
0944814017
€ 4.50
10
0910010117
ref: 10
BOLT
0910010117
€ 2.50
11
0931910008
ref: 11
BUSH
0931910008
€ 8.00
12
0916010013
ref: 12
WASHER (10.1X21X2.3)
0916010013
€ 2.00
13
4361003001
ref: 13
BAR,FOOTREST RUBBER
4361003001
€ 5.50
14
4361203001
ref: 14
RUBBER,PILLION FOOTREST
4361203001
€ 3.50
15
0916019006
ref: 15
WASHER (19.5X32X2)
0916019006
€ 2.00
16
0920006010
ref: 16
PIN
0920006010
€ 2.50
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
