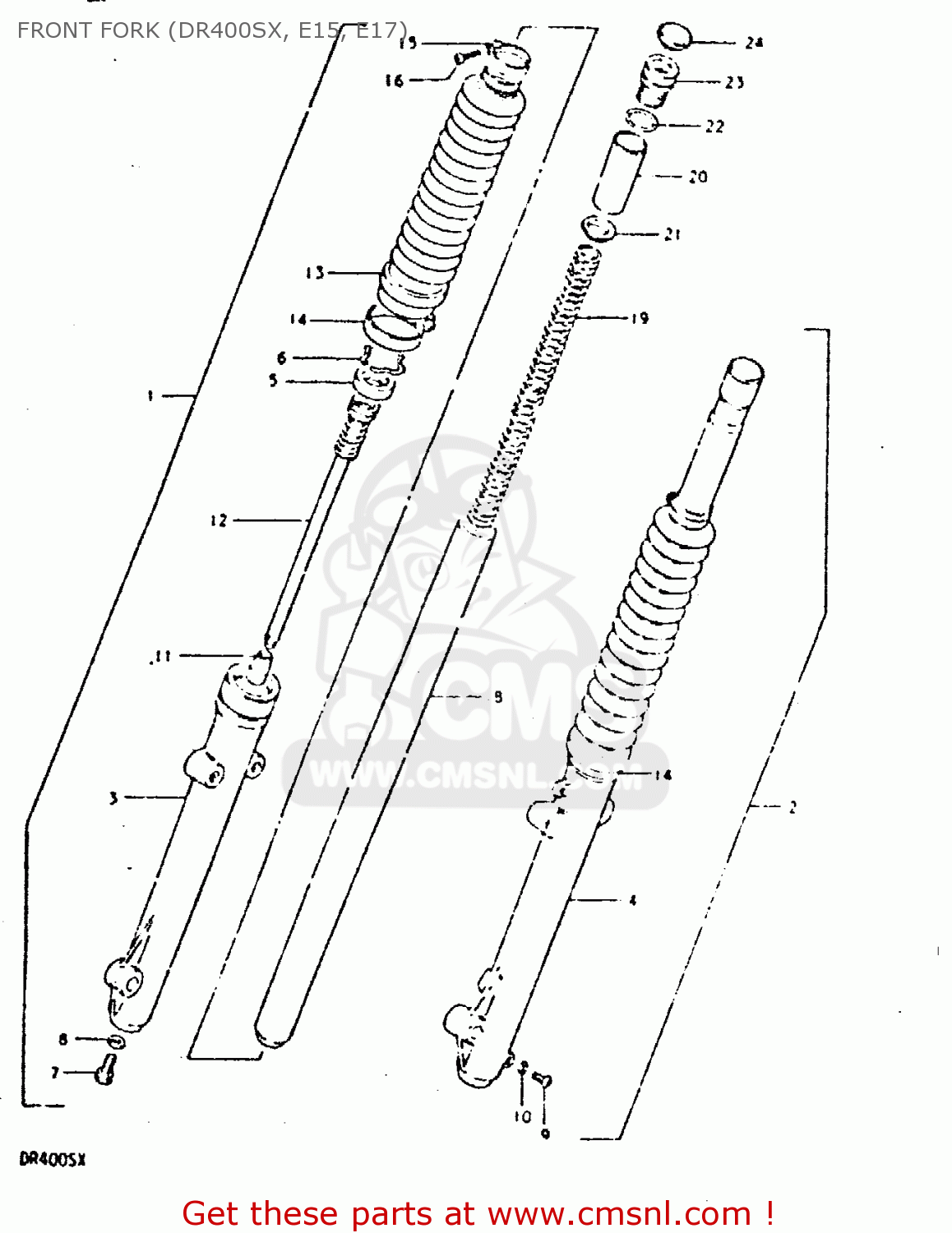

FRONT FORK (DR400SX, E15, E17)

ref

part #

description

quantity

1

5110337210
ref: 1

DAMPER ASSY, RH

€ 215.50

2

5110437260
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113030901
ref: 3

TUBE,OUTER,RIGHT

€ 0.00

4

5114037210
ref: 4

OUTER TUBE, LH

€ 0.00

5

5115341211
ref: 5

OIL SEAL,FRONT FORK

€ 28.50

6

5115630400
ref: 6

5115630400

7

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

0211204088
ref: 9

SCREW

€ 1.50

10

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

11

5119541210
ref: 11

PIECE,OIL LOCK

€ 12.00

12

5114630400
ref: 12

CYLINDER,FRONT FORK

€ 0.00

13

5157132500
ref: 13

BOOT

€ 33.50

14

5157341410
ref: 14

BAND,FRONT FORK COVER

€ 10.00

15

5157541410
ref: 15

BAND,BOOT

€ 8.00

16

0211204168
ref: 16

SCREW

€ 1.00

17

5111037210
ref: 17

INNER TUBE

€ 146.50

18

5111037230
ref: 18

INNER TUBE, LH

€ 0.00

19

5117137210
ref: 19

SPRING

€ 0.00

20

5117641010
ref: 20

SPACER,SPRING

€ 0.00

21

5117238010
ref: 21

GUIDE,FRONT FORK SPRING C

€ 9.50

22

5111716310
ref: 22

O RING

€ 4.50

23

5135130520
ref: 23

CAP,FORK INNER TUBE

€ 9.00

24

5118932400
ref: 24

CAP,FRONT FORK

€ 11.50

FRONT FORK (DR400SX, E15, E17)

all assemblies
