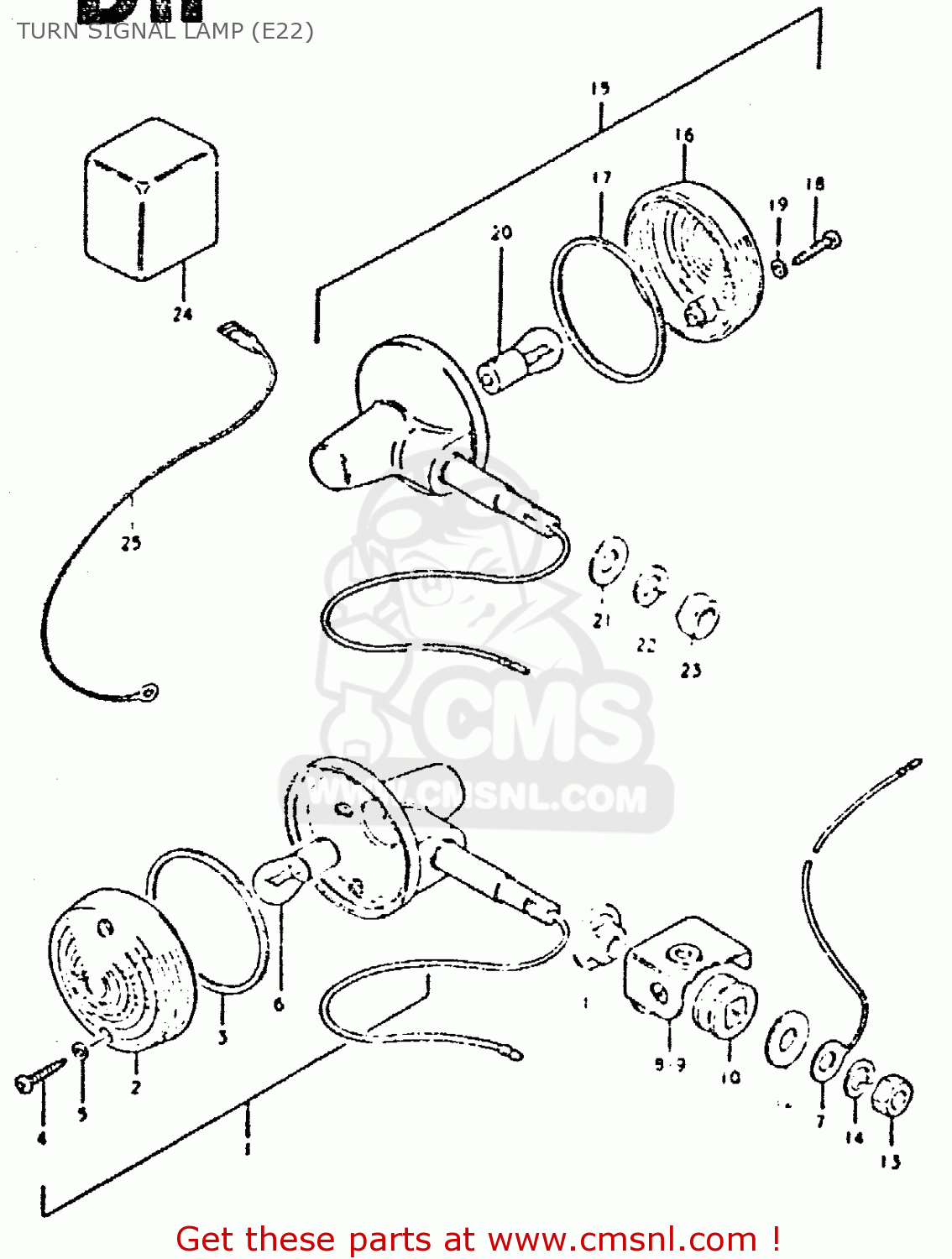

TURN SIGNAL LAMP (E22)

ref

part #

description

quantity

1

3560148591999
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 69.00

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

3562347610
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947106033
ref: 6
EXECUTED LOCALLY

BULB (6V,21W)

€ 0.00

7

3666033000
ref: 7

LEAD WIRE,EARTH

€ 5.00

8

512513090208C
ref: 8

BRACKET, FRONT RH

€ 4.00

9

512523090208C
ref: 9

BRACKET, FRONT LH

€ 11.00

10

3569032200
ref: 10

CUSHION

€ 38.50

11

3569536590
ref: 11

SPACER

€ 6.00

12

0916010006
ref: 12

WASHER (10.5X30X2.3)

€ 2.50

13

0831011108
ref: 13

NUT

€ 2.50

14

0832121108
ref: 14

LOCK WASHER

€ 2.00

15

3560337290999
ref: 15

LAMP, REAR TURN SIGNAL

€ 35.50

16

3561228620
ref: 16

LENS

€ 10.50

17

3561328620
ref: 17

GASKET (NAS)

€ 7.00

18

3562347610
ref: 18

SCREW

€ 1.50

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

0947106033
ref: 20
EXECUTED LOCALLY

BULB (6V,21W)

€ 0.00

21

0832211108
ref: 21

WASHER

€ 2.50

22

0832121108
ref: 22

LOCK WASHER

€ 2.00

23

0831012108
ref: 23

NUT

€ 2.50

24

3861048620
ref: 24

RELAY, TURN SIGNAL

€ 122.50

25

3685145010
ref: 25

LEAD WIRE, RELAY EARTH

€ 6.00
