FRONT WHEEL (DR400SX)
DR400S 1981 (X)

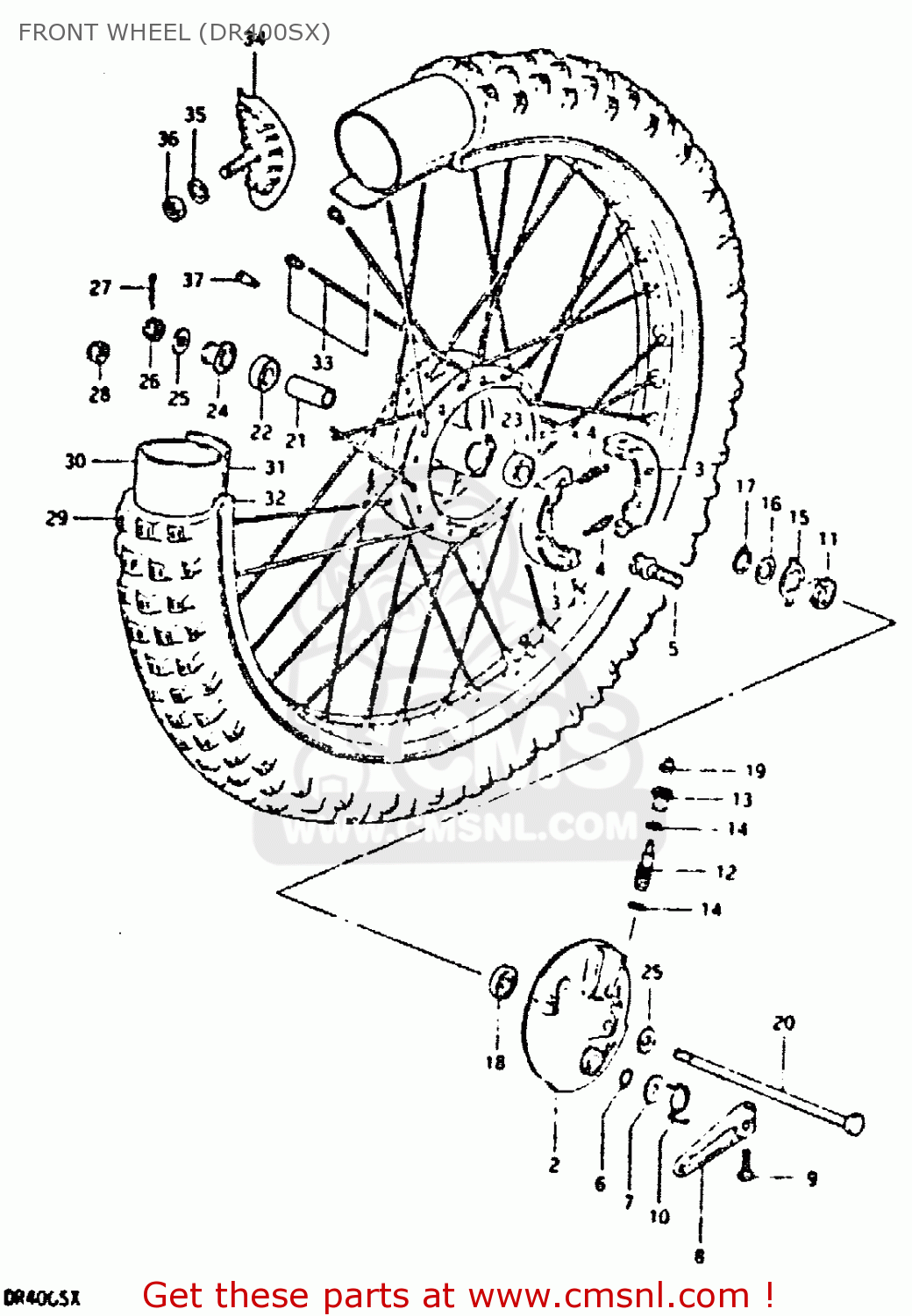

Front wheel (dr400sx) diagram DR400S 1981 (X)
FRONT WHEEL (DR400SX) DR400S 1981 (X)
×
prices are in EUR
ref
part #
description
quantity
1
5411040302
ref: 1
DRUM,FRONT HUB
€ 208.00
2
5421037400
ref: 2
PANEL,FRONT BRAKE
€ 101.50
3-1
5441032400
ref: 3-1
SHOE,BRAKE (MCA)
€ 35.00
3-2
NOTUSED
ref: 3-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444040302
ref: 5
CAM,FRONT BRAKE
€ 24.00
6
0928015001
ref: 6
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
€ 2.50
8
5445132400
ref: 8
LEVER,FRONT BRAKE CAM
€ 48.00
9
0110706258
ref: 9
BOLT
€ 2.00
10
0944832007
ref: 10
SPRING
€ 8.00
11
5461130301
ref: 11
GEAR,SPEEDOMETER
€ 24.50
12
5462130300
ref: 12
PINION,SPEEDOMETER
€ 13.00
13
5463249200
ref: 13
BUSHING,SPEEDOMETER PINION
€ 6.50
14
0916005001
ref: 14
WASHER (5.1X9X0.4)
€ 2.00
15
5466011031
ref: 15
DRIVER,SPEEDOMETER GEAR
€ 31.00
16
0916022001
ref: 16
WASHER(22.5X27X1)
€ 2.00
17
0833111229
ref: 17
CIRCLIP
€ 2.00
18
0928526003
ref: 18
SEAL,OIL(26X38X4)
€ 22.00
19
0928906001
ref: 19
SEAL,OIL(6X10X3)
€ 4.00
20
6471143000
ref: 20
AXLE,REAR
€ 28.50
21
0918012041
ref: 21
SPACER (12.6X19X52)
€ 4.50
22
0812362017
ref: 22
BEARING, RH
€ 15.00
23
0814362017
ref: 23
BEARING
€ 11.50
24
5474041100
ref: 24
SPACER,FRONT AXLE,RIGHT
€ 10.50
25
0832211128
ref: 25
WASHER
€ 2.00
26
0831441128
ref: 26
NUT, REAR AXLE
€ 2.50
27
0411130308
ref: 27
COTTER PIN
€ 1.50
28
NOTUSED
ref: 28
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
29
5510030900
ref: 29
TIRE,FRONT
€ 0.00
30
5520016510
ref: 30
TUBE
€ 32.50
31
5526116510
ref: 31
PROTECTOR,WHEEL,INNER
€ 5.00
32
5531137210
ref: 32
RIM,FRONT WHEEL
€ 343.00
33
5532040410
ref: 33
SPOKE SET,FRONT
€ 39.00
34
6527028600
ref: 34
STOPPER,BEAD
€ 26.50
35
0832211088
ref: 35
WASHER
€ 2.00
36
0831012088
ref: 36
NUT
€ 2.00
37
5541130000
ref: 37
BALANCER,WHEEL (50G)
€ 4.50
