MAGNETO (E16)

DR400S 1981 (X)

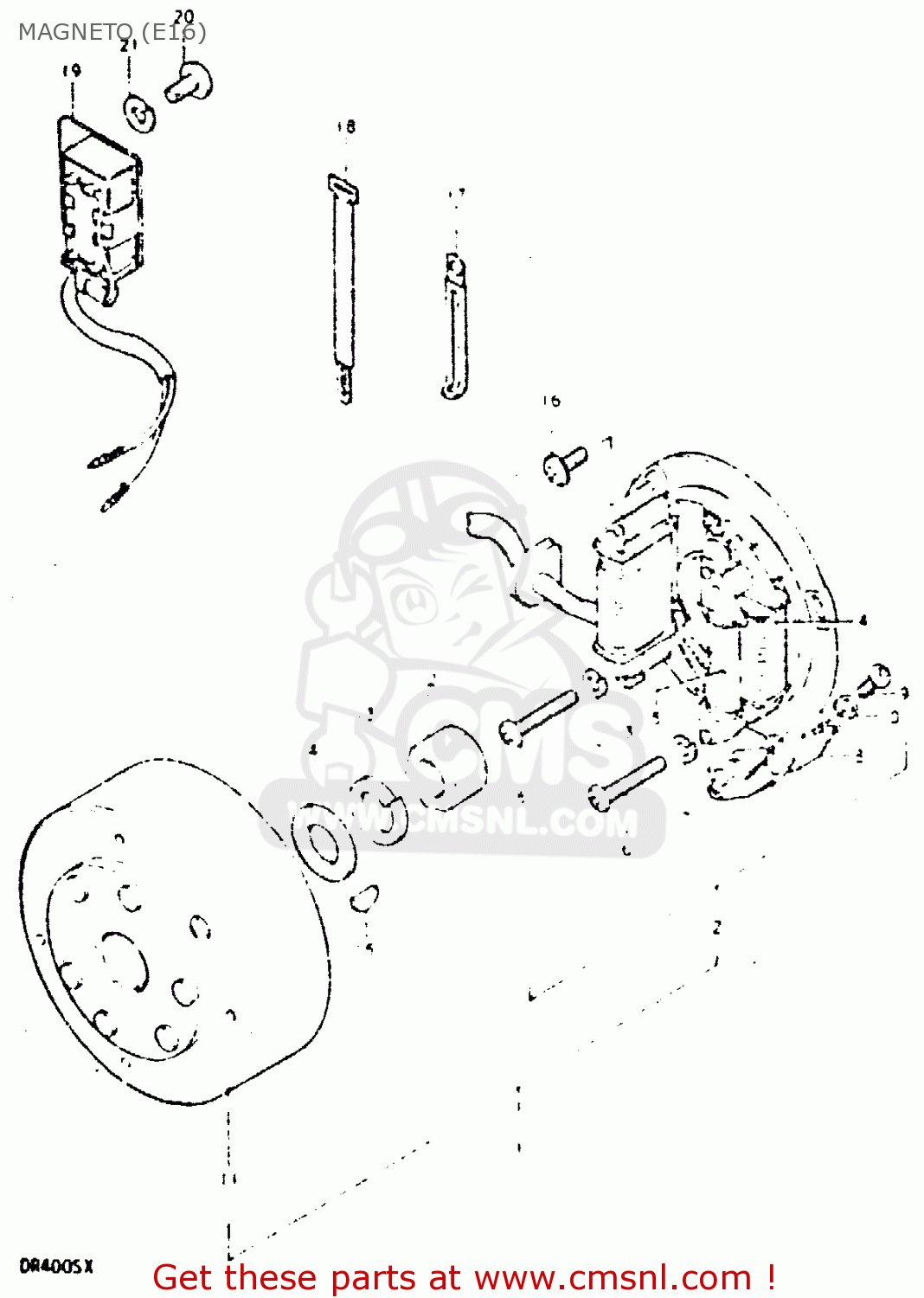

Magneto (e16) diagram DR400S 1981 (X)

MAGNETO (E16) DR400S 1981 (X)
MAGNETO (E16) DR400S 1981 (X)
MAGNETO (E16) DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1
3210032470
ref: 1
MAGNETO ASSY
€ 264.50
2
3210132470
ref: 2
STATOR ASSY
€ 264.50
3
3212032470
ref: 3
COIL, LIGHTING
€ 0.00
4
3214032450
ref: 4
COIL,PRIMARY
3214032450
€ 58.50
5
3215032450
ref: 5
COIL,PULSER
3215032450
€ 65.00
6
0211205358
ref: 6
SCREW
€ 1.50
7
0832121058
ref: 7
LOCK WASHER
0832121058
€ 2.00
8
3215110200
ref: 8
COIL,PULSER
3215110200
€ 71.00
9
0211204168
ref: 9
SCREW
0211204168
€ 1.00
10
0832121048
ref: 10
LOCK WASHER
0832121048
€ 2.00
11
3210232470
ref: 11
FLYWHEEL, MAGNETO
€ 358.00
12
0914014011
ref: 12
NUT
0914014011
€ 3.50
13
0832121148
ref: 13
LOCK WASHER
€ 2.00
14
0916014015
ref: 14
WASHER(14X27X3)
0916014015
€ 4.00
15
0834131049
ref: 15
KEY 4MM
0834131049
€ 3.50
16
0913905011
ref: 16
SCREW(5X14)
0913905011
€ 3.00
17
0940406402
ref: 17
CLAMP
€ 2.50
18
0940711301
ref: 18
CLAMP L:110
€ 6.00
19-1
3651032411
ref: 19-1
MODEL T
REGISTER ASSEMBLY
€ 46.50
19-2
3651032412
ref: 19-2
MODEL X
RESISTOR ASSY,MAGNETO
3651032412
€ 46.50
20
0211206128
ref: 20
SCREW 6X12
0211206128
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
