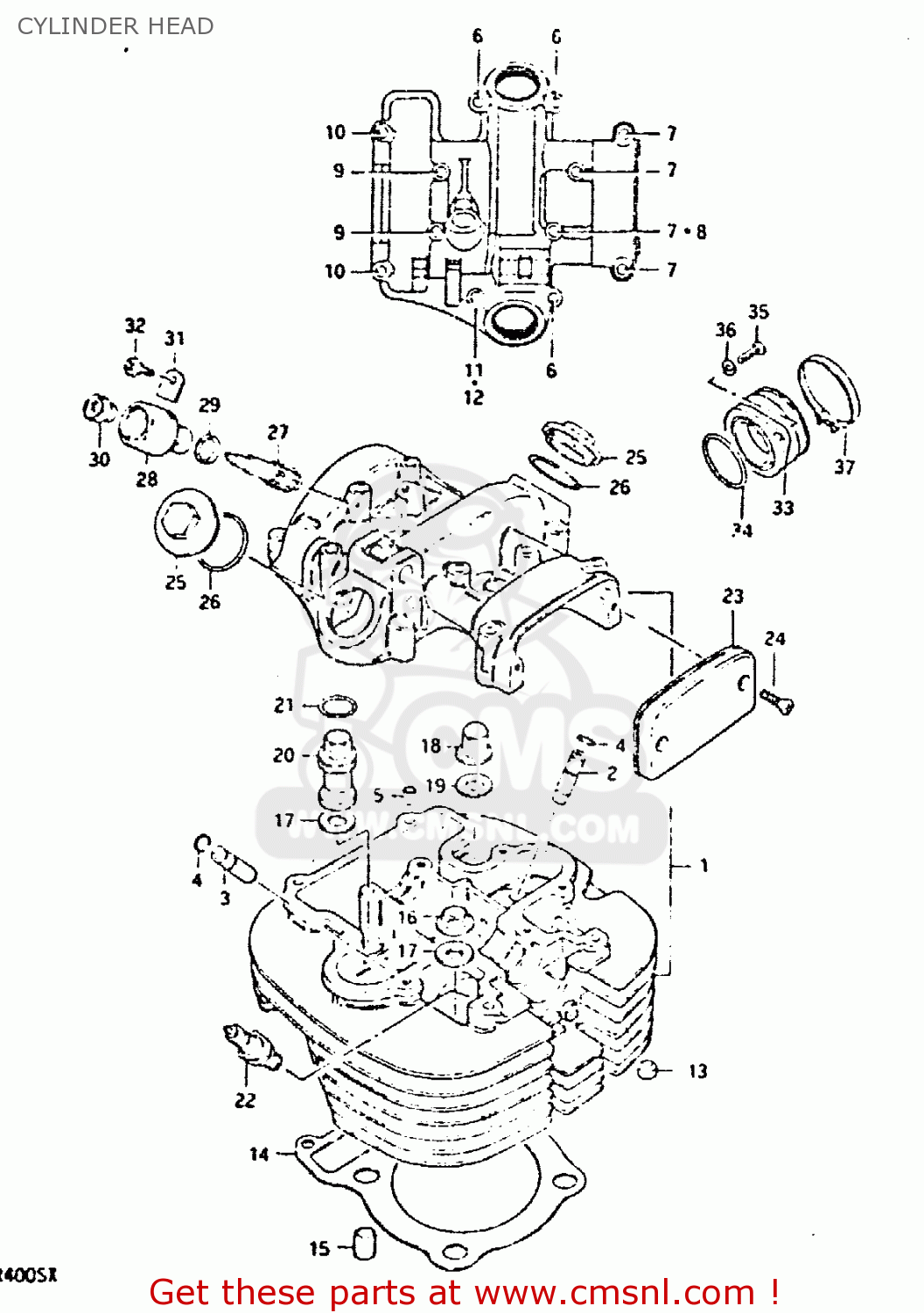

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110037830
ref: 1-1
~E.NO. 102690 WITH 1

HEAD ASSEMBLY,CYLINDER

€ 238.50

1-2

1110037831
ref: 1-2
E.NO. 102691~

HEAD SET,CYLINDER

€ 238.50

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0151706358
ref: 6

BOLT 6X35

€ 2.50

7-1

0151706508
ref: 7-1
MODEL T

BOLT ,6X50

€ 2.00

7-2

0151706508
ref: 7-2
MODEL X

BOLT ,6X50

€ 2.00

8

0151706558
ref: 8
MODEL X

BOLT

€ 2.50

9

0151706658
ref: 9

BOLT 6X65

€ 3.00

10-1

0910306033
ref: 10-1
MODEL T

BOLT(6X125)

€ 3.50

10-2

0910306036
ref: 10-2
MODEL X

BOLT

€ 3.50

11

0151706608
ref: 11

BOLT (6X60)

€ 2.50

12

0916006009
ref: 12

WASHER

€ 0.00

13

1125228000
ref: 13

PAD,CYLINDER

€ 2.00

14

1114137101
ref: 14

GASKET,CYLINDER HEAD (NAS)

€ 65.00

15

0920613001
ref: 15

PIN

€ 2.50

16-1

0915910016
ref: 16-1
MODEL T

NUT

€ 1.50

16-2

0831616108
ref: 16-2
MODEL X

NUT

€ 2.00

17

0916010039
ref: 17

WASHER(10.5X22X2.3)

€ 2.50

18

0915910026
ref: 18

NUT

€ 6.00

19

0916810019
ref: 19

GASKET (NAS)

€ 3.50

20

1114532400
ref: 20

NUT,CYLINDER HEAD SEAL

€ 16.50

21

0928018004
ref: 21

O RING(D:2.4,ID:17.8)

€ 5.50

22-1

NOTUSED
ref: 22-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22-2

NOTUSED
ref: 22-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22-3

0948200149
ref: 22-3
E2, E4, E15, E16, E1

SPARK PLUG DR8ES-L

€ 3.50

23

1117432410
ref: 23

CAP,CYLINDER HEAD COVER

€ 7.00

24

0213205168
ref: 24

SCREW

€ 2.00

25

1117532400
ref: 25

CAP,INSPECTION

€ 9.50

26

0928030001
ref: 26

O RING(D:3,ID:29.5)

€ 2.00

27

2643147002
ref: 27

GEAR,TACHOMETER DRIVEN

€ 29.00

28

2644145000
ref: 28

SLEEVE,TACHOMETER DRIVE

€ 18.00

29

2645145000A
ref: 29

SEAL,TACHOMETER DRIVEN

€ 4.50

30

0928905002
ref: 30

SEAL,OIL(5X12X8)

€ 11.00

31

2644933000
ref: 31

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

32

0912805101
ref: 32

SCREW(5X12)

€ 1.50

33

1311032400
ref: 33

PIPE,INTAKE

€ 33.00

34

0928040003
ref: 34

O-RING (D:2.4 ID:39.7)

€ 3.50

35

0211206168
ref: 35

SCREW

€ 2.50

36

0832121068
ref: 36

LOCK WASHER

€ 2.50

37

0940254303
ref: 37

CLAMP

€ 4.00
