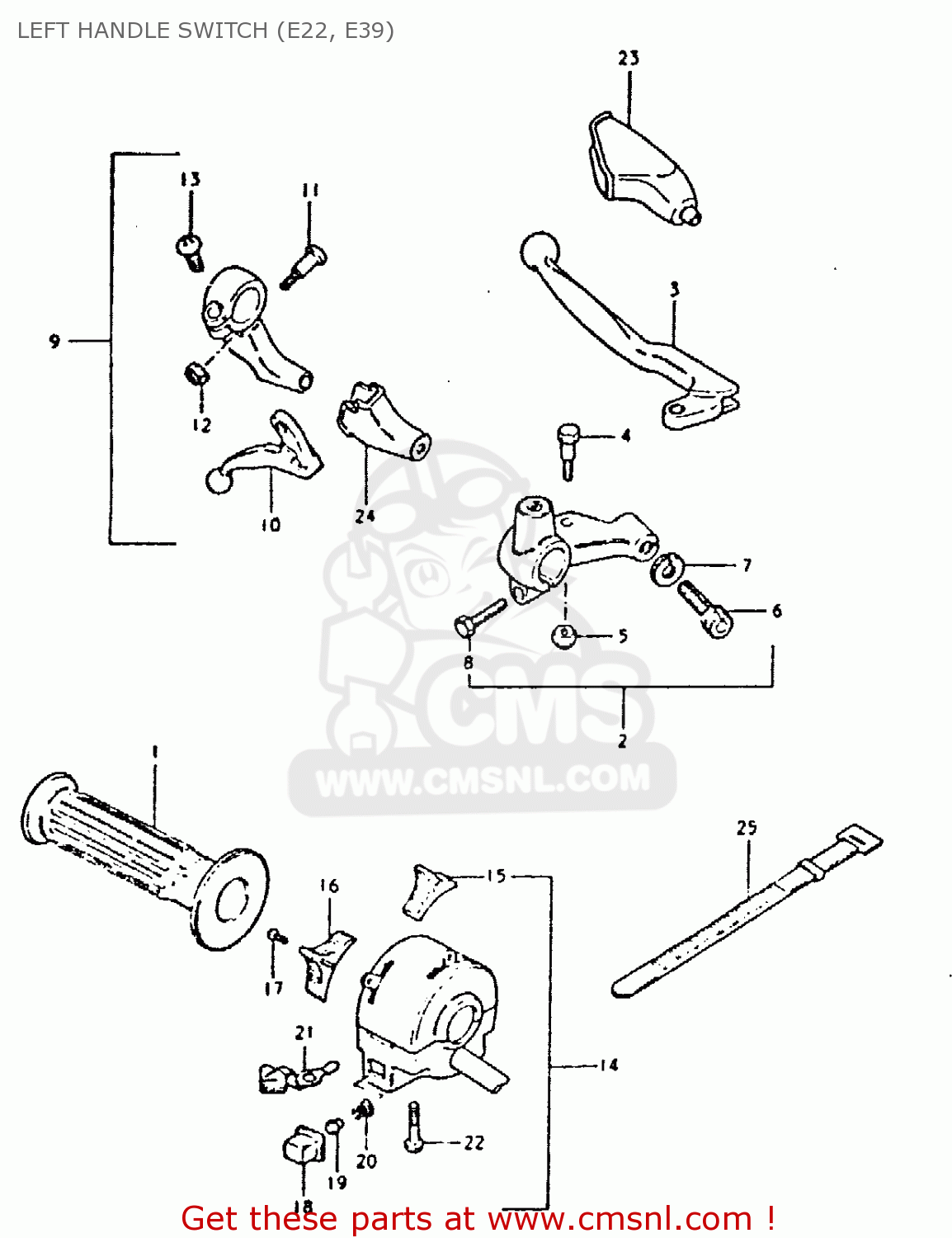

LEFT HANDLE SWITCH (E22, E39)

ref

part #

description

quantity

1

5721145020
ref: 1

GRIP,L

€ 9.00

2

5750030900
ref: 2

LEVER ASSY,CLUTCH

€ 40.50

3

5762026500
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743111011
ref: 4

BOLT,LEVER

€ 6.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

0110706208
ref: 8

BOLT

€ 2.00

9

5870037200
ref: 9

LEVER ASSEMBLY,DECOMPRESSION

€ 169.50

10

5873137200
ref: 10

LEVER,DECOMPRESSION

€ 19.50

11

5743101011
ref: 11

BOLT,LEVER

€ 5.00

12

5763327500
ref: 12

NUT,LEVER BOLT

€ 1.50

13

0211206208
ref: 13

SCREW

€ 2.00

14

3740032470
ref: 14

SWITCH ASSY, HANDLE LH

€ 62.00

15

3741145012
ref: 15

KNOB,LIGHTING SWITCH

€ 4.50

16

3742132430
ref: 16

KNOB, DIMMER

€ 2.50

17

0212203068
ref: 17

SCREW

€ 1.00

18

5737145000
ref: 18

BUTTON,HORN

€ 3.00

19

5737245000
ref: 19

CONTACT

€ 3.00

20

5738245000
ref: 20

SPRING

€ 2.50

21

3751345011
ref: 21

KNOB,TURNSIGNAL

€ 6.50

22

0211205258
ref: 22

SCREW

€ 2.00

23

5734140001
ref: 23

COVER,CLUTCH LEVER

€ 7.50

24

5734237101
ref: 24

COVER,DECOMP LEVER DUST

€ 9.50

25

0940712402
ref: 25

CLAMP(L:120)

€ 3.00
