TURN SIGNAL LAMP (E2, E15)
DR400S 1981 (X)

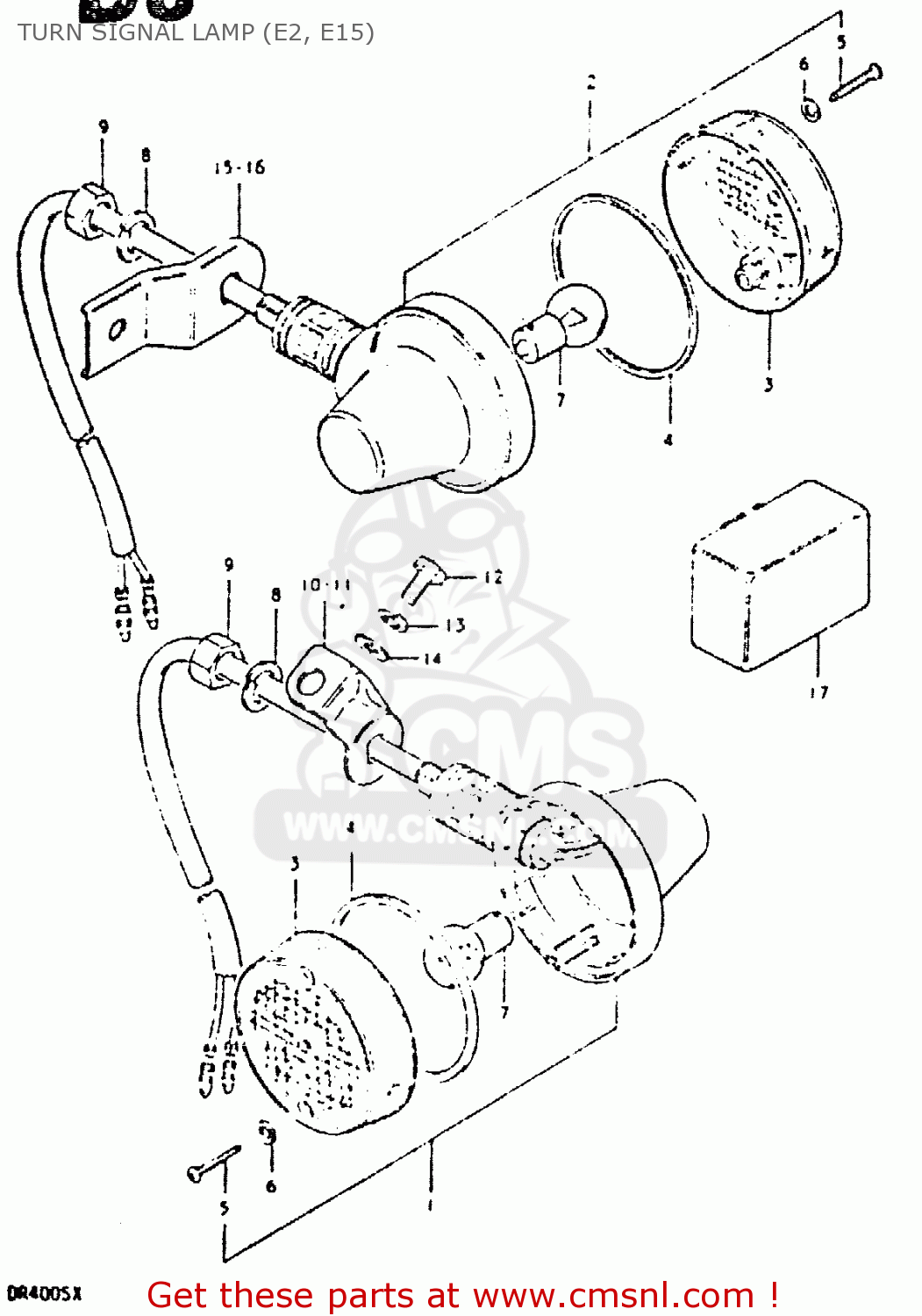

Turn signal lamp (e2, e15) diagram DR400S 1981 (X)
TURN SIGNAL LAMP (E2, E15) DR400S 1981 (X)
×
prices are in EUR
ref
part #
description
quantity
1
3560348521999
ref: 1
LAMP ASSY,RR TURNSIGNAL
€ 72.50
2
3560348521999
ref: 2
LAMP ASSY,RR TURNSIGNAL
€ 72.50
3
3561248510
ref: 3
LENS
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
€ 7.00
5
0321104258
ref: 5
SCREW TAPP.
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947106048
ref: 7
BULB (6V,18W)
€ 0.00
8
0832121128
ref: 8
WASHER,LOCK 12
€ 2.50
9
0831012128
ref: 9
NUT
€ 3.00
10
512512990008C
ref: 10
BRACKET,TURN SIGNAL LAMP
€ 7.50
11
512522990008C
ref: 11
BRACKET,TURN SIGNAL LAMP
€ 7.50
12
0110706128
ref: 12
BOLT
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
€ 2.50
14
0832221068
ref: 14
WASHER
€ 2.00
15
3562137200
ref: 15
BRACKET, REAR RH
€ 17.50
16
3564137200
ref: 16
BRACKET, REAR LH
€ 3.50
17
3861048600
ref: 17
RELAY,TURN SIGNAL
€ 46.50
