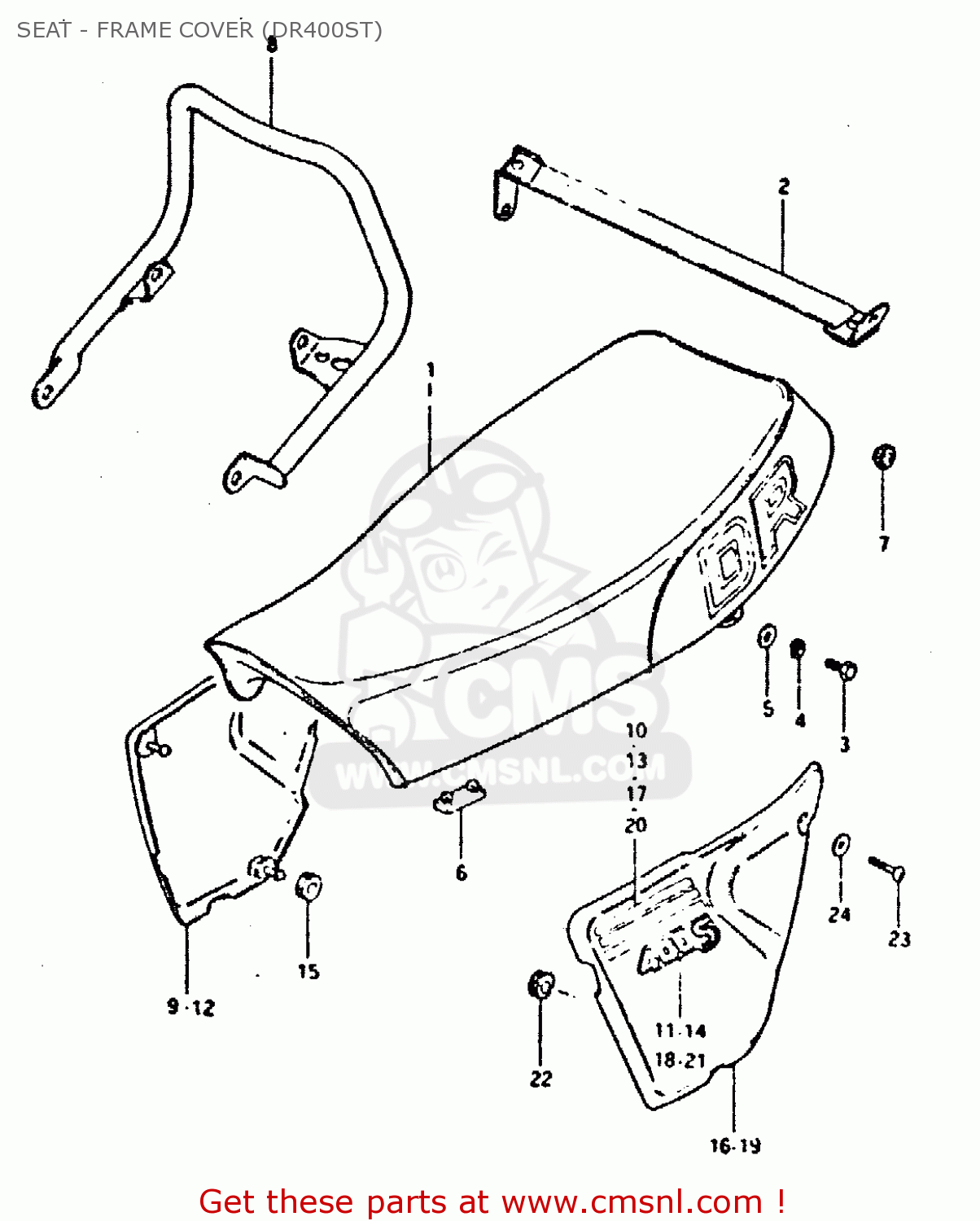

SEAT - FRAME COVER (DR400ST)

ref

part #

description

quantity

1

4510037211865
ref: 1

SEAT ASSY (BLACK)

€ 0.00

2

4518037210
ref: 2

BAND, SEAT GRIP

€ 0.00

3

0110708168
ref: 3

BOLT

€ 2.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

0832211088
ref: 5

WASHER

€ 2.00

6

0932108009
ref: 6

CUSHION

€ 4.00

7

0932110007
ref: 7

CUSHION

€ 4.50

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9-1

471113720010V
ref: 9-1

COVER,FRAME,RIGHT

€ 41.00

9-2

4711137200163
ref: 9-2

COVER, FRAME RH (YELLOW)

€ 41.00

10

681363720067H
ref: 10

TAPE,FRAME COVER,RIGHT STRIPE

€ 6.50

11

681313721060K
ref: 11

EMBLEM, RH

€ 4.50

12-1

471113720008Y
ref: 12-1

COVER, FRAME RH (BLUE)

€ 41.00

12-2

NOTUSED
ref: 12-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

681363720072P
ref: 13

TAPE, RH

€ 6.00

14-1

6813137210929
ref: 14-1

EMBLEM, RH

€ 4.50

14-2

NOTUSED
ref: 14-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

0932008018
ref: 15

CUSHION

€ 4.00

16-1

472113720010V
ref: 16-1

COVER,FRAME,LEFT

€ 41.00

16-2

4721137200163
ref: 16-2

COVER, FRAME LH (YELLOW)

€ 41.00

17

681463720067H
ref: 17

TAPE,FRAME COVER

€ 5.50

18

681413721060K
ref: 18

EMBLEM, LH

€ 6.00

19-1

472113720008Y
ref: 19-1

COVER, FRAME LH (BLUE)

€ 41.00

19-2

NOTUSED
ref: 19-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

20

681463720072P
ref: 20

TAPE, LH

€ 5.50

21-1

6814137210929
ref: 21-1

EMBLEM, LH

€ 4.50

21-2

NOTUSED
ref: 21-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22

0932008018
ref: 22

CUSHION

€ 4.00

23

0214206308
ref: 23

SCREW

€ 2.00

24

0916006007
ref: 24

WASHER

€ 2.00
