Buy Suzuki DR Parts Online


HEADLAMP HOUSING

DR400S 1981 (X)

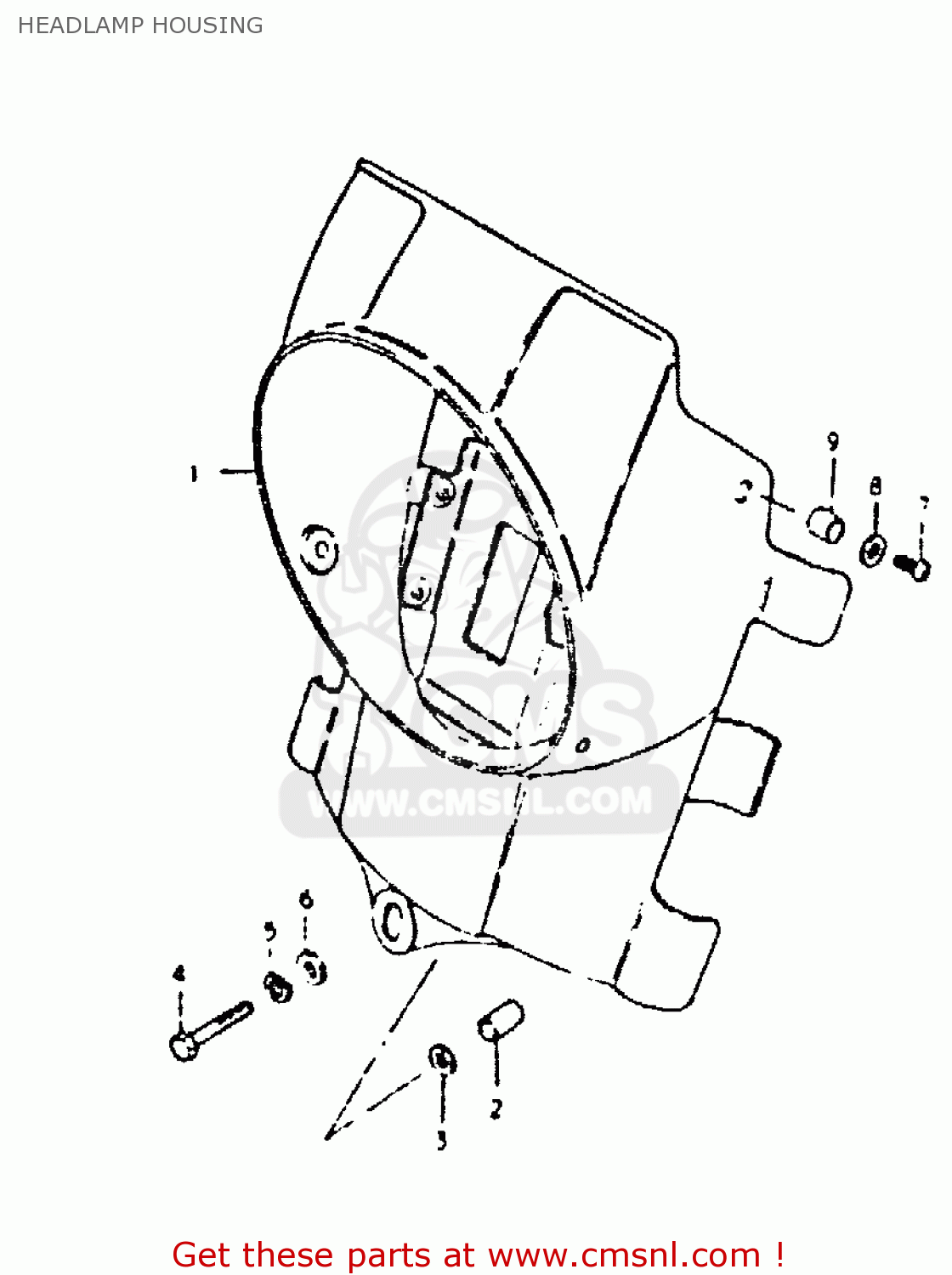

Headlamp housing diagram DR400S 1981 (X)

HEADLAMP HOUSING DR400S 1981 (X)
HEADLAMP HOUSING DR400S 1981 (X)
HEADLAMP HOUSING DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1-1
518104850408Y
ref: 1-1
HOUSING,HEADLAMP
518104850408Y
€ 71.50
1-2
518104850410V
ref: 1-2
HOUSING, HEADLAMP (WHITE)
518104850410V
€ 71.50
1-3
5181048504165
ref: 1-3
HOUSING, HEADLAMP (YELLOW)
€ 0.00
1-4
518104850407P
ref: 1-4
MODEL X
HOUSING, HEADLAMP (RED)
518104850407P
€ 62.00
2
0918006046
ref: 2
SPACER (6.5X10.5X13.5)
€ 3.50
3
0916006007
ref: 3
WASHER
0916006007
€ 2.00
4
0110706308
ref: 4
BOLT
0110706308
€ 2.50
5
0832121068
ref: 5
LOCK WASHER
0832121068
€ 2.50
6
0916006027
ref: 6
WASHER (6.5X20X1.2)
0916006027
€ 2.00
7
0211205128
ref: 7
SCREW
€ 2.50
8
0916005006
ref: 8
WASHER (5.5X18X1.6)
0916005006
€ 4.00
9
0918005015
ref: 9
SPACER (5.5X8X4)
0918005015
€ 3.00
