MAGNETO

DR400S 1981 (X)

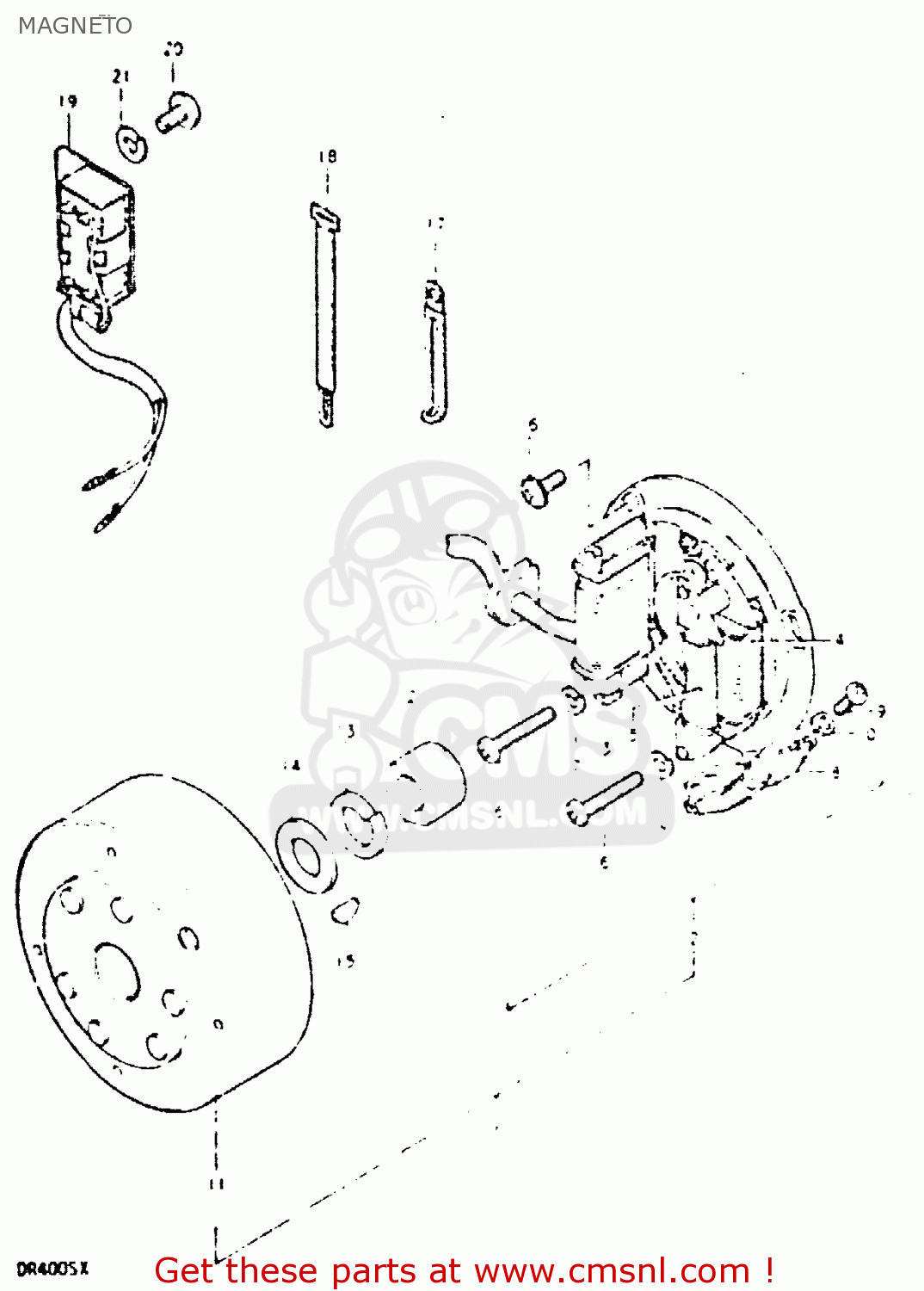

Magneto diagram DR400S 1981 (X)

MAGNETO DR400S 1981 (X)

MAGNETO DR400S 1981 (X)

prices are in EUR

ref

part #

description

quantity

1

3210032450
ref: 1

MAGNETO ASSEMBLY

€ 529.50

2

3210132450
ref: 2

STARTER ASSY

€ 489.50

3

3212032410
ref: 3

COIL,LIGHTING

€ 489.50

4

3214032450
ref: 4

COIL,PRIMARY

€ 58.50

5

3215032450
ref: 5

COIL,PULSER

€ 65.00

6

0211205358
ref: 6

SCREW

€ 1.50

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

3215110200
ref: 8

COIL,PULSER

€ 71.00

9

0211204168
ref: 9

SCREW

€ 1.00

10

0832121048
ref: 10

LOCK WASHER

€ 2.00

11

3210232450
ref: 11

ROTOR,FLYWHEEL

€ 358.00

12

0914014011
ref: 12

NUT

€ 3.50

13

0832121148
ref: 13

LOCK WASHER

€ 2.00

14

0916014015
ref: 14

WASHER(14X27X3)

€ 4.00

15

0834131049
ref: 15

KEY 4MM

€ 3.50

16

0913905011
ref: 16

SCREW(5X14)

€ 3.00

17

0940406412
ref: 17

CLAMP

€ 2.50

18

0940711301
ref: 18

CLAMP L:110

€ 6.00

19-1

3651032411
ref: 19-1
MODEL T

REGISTER ASSEMBLY

€ 46.50

19-2

3651032412
ref: 19-2
MODEL X

RESISTOR ASSY,MAGNETO

€ 46.50

20

0211206128
ref: 20

SCREW 6X12

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50
