HEADLAMP (E16)

DR400S 1981 (X)

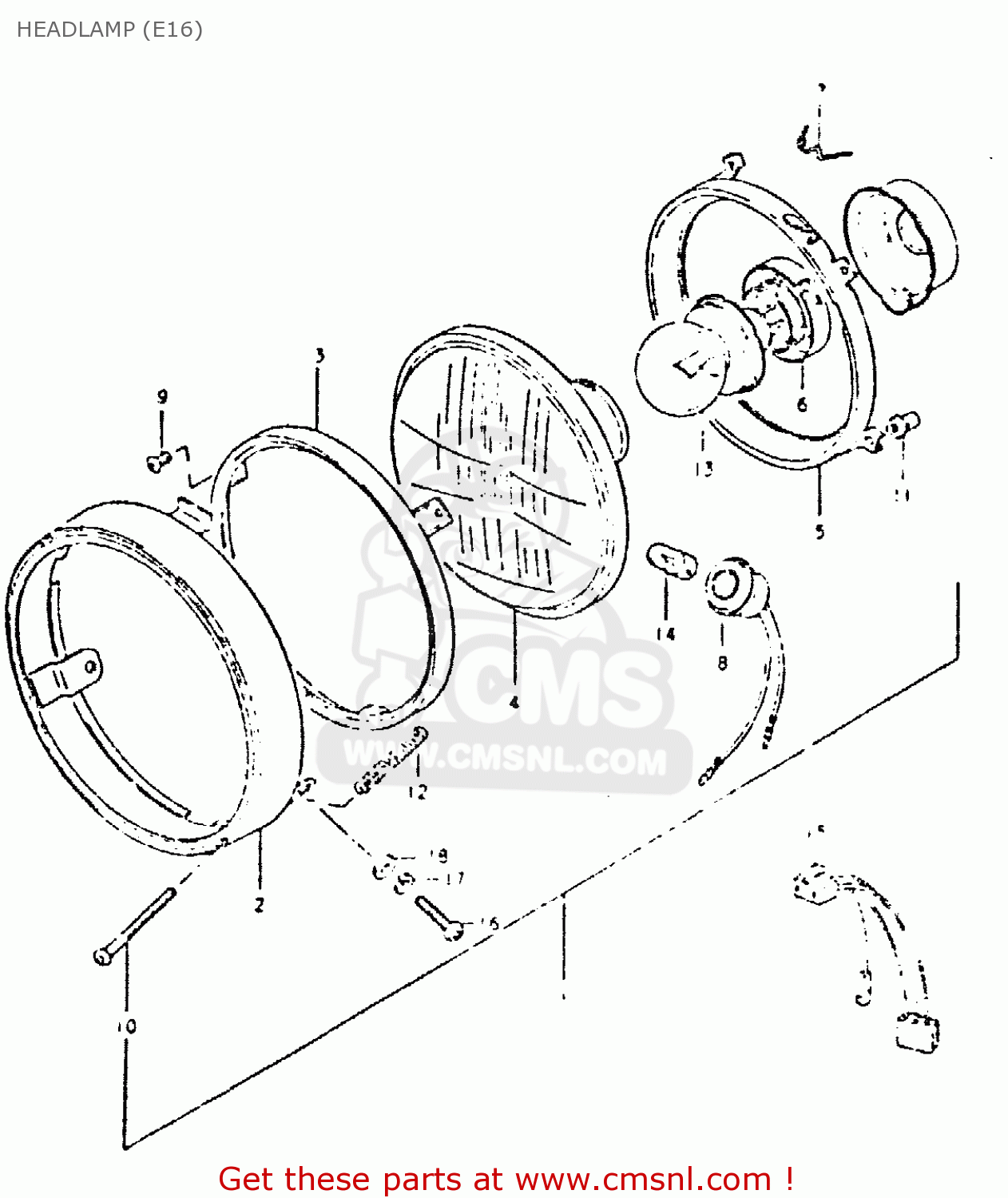

Headlamp (e16) diagram DR400S 1981 (X)

HEADLAMP (E16) DR400S 1981 (X)
HEADLAMP (E16) DR400S 1981 (X)
HEADLAMP (E16) DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1
3510030960999
ref: 1
HEADLAMP ASSY
€ 0.00
2
3511148530
ref: 2
RIM
3511148530
€ 34.00
3
3512748530
ref: 3
RETAINER,HEADLAMP
3512748530
€ 13.00
4
3512130960
ref: 4
UNIT
€ 0.00
5
3513048530
ref: 5
RING,HEADLAMP UNIT
3513048530
€ 31.50
6
3513634670
ref: 6
SETTER,BULB
3513634670
€ 4.00
7
3512848530
ref: 7
SPRING,HEADLAMP UNIT
3512848530
€ 3.50
8
3611830500
ref: 8
SOCKET
3611830500
€ 10.00
9
0211204088
ref: 9
SCREW
€ 1.50
10
3515133611
ref: 10
SCREW,HEADLAMP ADJUST
3515133611
€ 4.00
11
3515248530
ref: 11
NUT,HEADLAMP ADJUSTER
3515248530
€ 2.00
12
3515431900
ref: 12
SPRING,ADJUSTING
3515431900
€ 3.50
13
0947106039
ref: 13
EXECUTED LOCALLY
BULB (6V,45/40W)
€ 0.00
14
0947106027
ref: 14
BULB(6V4W,STANLEY,A1364J)
0947106027
€ 4.50
15
3685234000
ref: 15
LEAD WIRE,HEADLAMP
3685234000
€ 13.00
16
0211205168
ref: 16
SCREW
0211205168
€ 2.50
17
0832121058
ref: 17
LOCK WASHER
0832121058
€ 2.00
18
0832221058
ref: 18
WASHER
€ 2.50
