CYLINDER

DR400S 1981 (X)

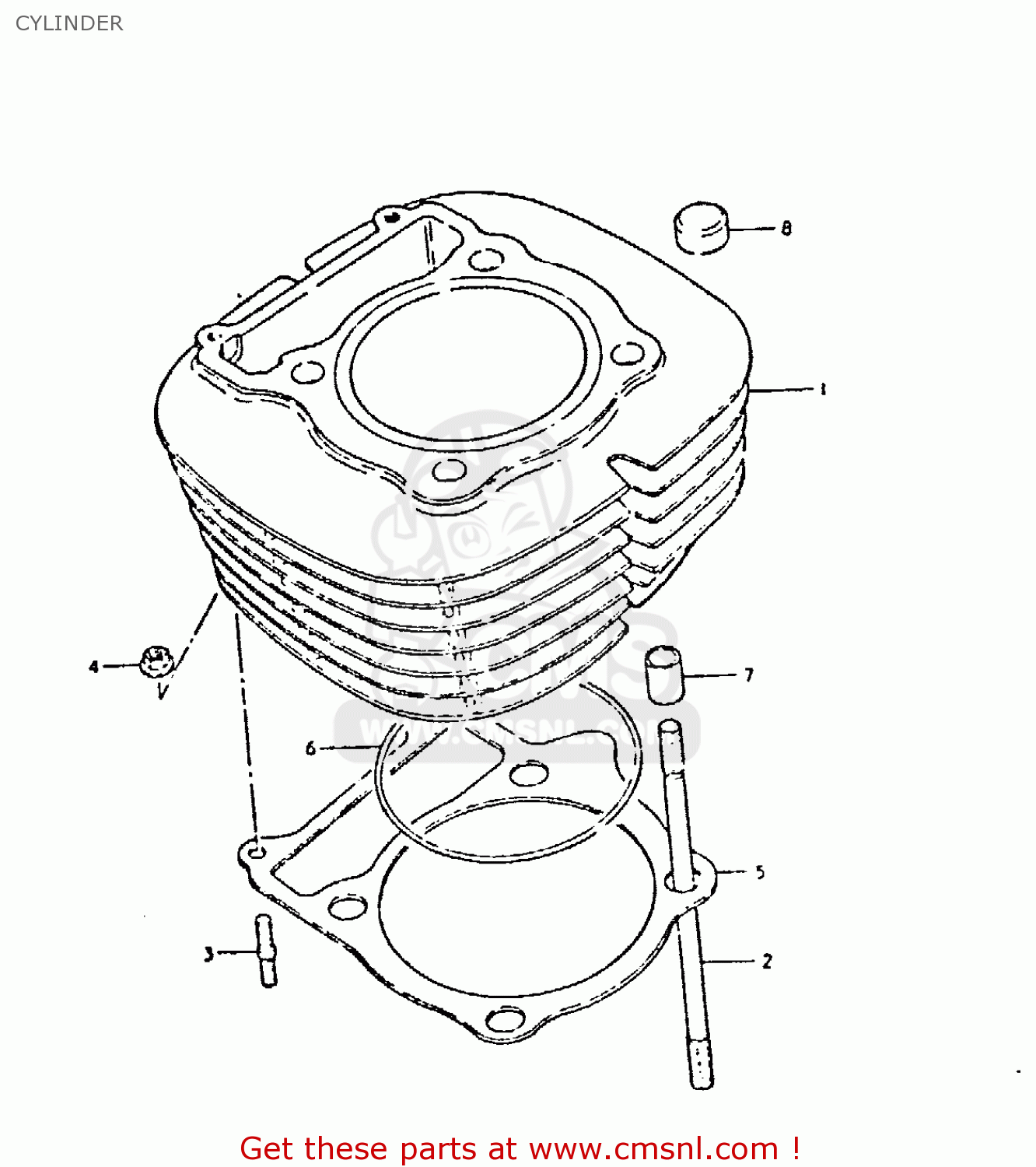

Cylinder diagram DR400S 1981 (X)

CYLINDER DR400S 1981 (X)
CYLINDER DR400S 1981 (X)
CYLINDER DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1
1121037101
ref: 1
CYLINDER
1121037101
€ 617.00
2
0910810024
ref: 2
STUD
€ 10.00
3
0142106208
ref: 3
STUD 6X20
0142106208
€ 2.50
4
0831616068
ref: 4
NUT
0831616068
€ 2.50
5
1124137100
ref: 5
GASKET,CYLINDER (MCA)
1124137100
€ 9.00
6
0928087001
ref: 6
O RING(D:2,ID:87)
0928087001
€ 5.00
7
0920613001
ref: 7
PIN
0920613001
€ 2.50
8
1125238001
ref: 8
PAD,CYLINDER HEAD
1125238001
€ 3.50
