KICK STARTER

DR400S 1981 (X)

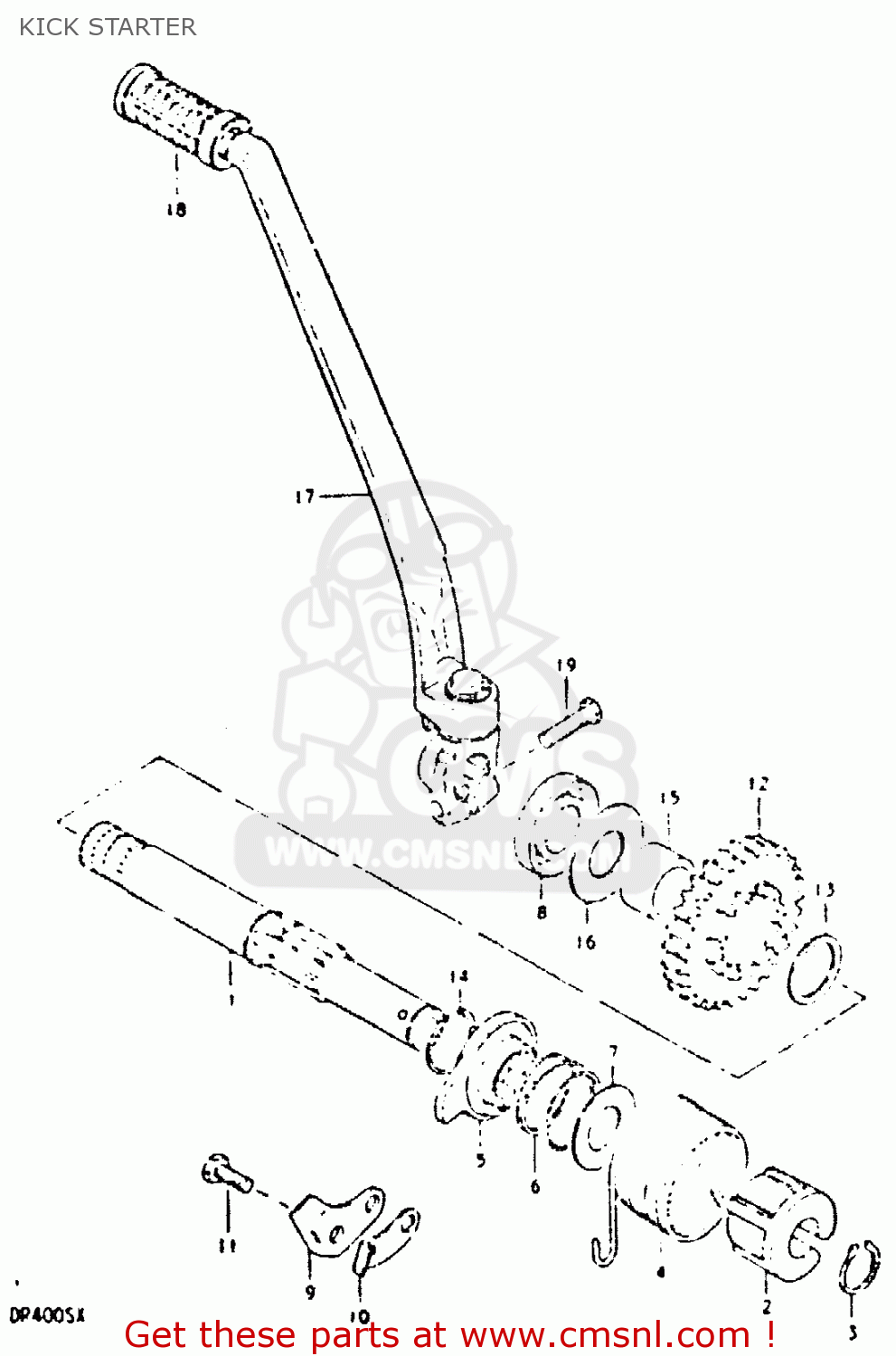

Kick starter diagram DR400S 1981 (X)

KICK STARTER DR400S 1981 (X)
KICK STARTER DR400S 1981 (X)
KICK STARTER DR400S 1981 (X)
prices are in EUR
ref
part #
description
quantity
1
2621132403
ref: 1
SHAFT,KICK STARTER
2621132403
€ 60.00
2
2622132400
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 0.00
3
0938017001
ref: 3
CIRCLIP
0938017001
€ 2.00
4
0944845008
ref: 4
SPRING
0944845008
€ 16.00
5
2623132400
ref: 5
STARTER,KICK
2623132400
€ 25.50
6
0944035001
ref: 6
SPRING
0944035001
€ 2.50
7
0821117382
ref: 7
PLATE
€ 0.00
8
0928320025
ref: 8
SEAL,OIL(20X37X7)
0928320025
€ 6.50
9
2623232403
ref: 9
GUIDE,KICK STARTER
2623232403
€ 8.00
10
2623332400
ref: 10
STOPPER,KICK STARTER
2623332400
€ 3.00
11
0110708258
ref: 11
BOLT
0110708258
€ 2.50
12
2624032404
ref: 12
GEAR,KICK STARTER DRIVE(NT:29)
2624032404
€ 91.00
13
0916722007
ref: 13
WASHER,LOCK
0916722007
€ 3.50
14
0938022003
ref: 14
CIRCLIP
0938022003
€ 13.50
15
0918020065
ref: 15
SPACER
€ 0.00
16
0821220422
ref: 16
PLATE, OIL RESERVOR
€ 0.00
17
2630032401
ref: 17
LEVER ASSY,KICK STARTER
2630032401
€ 99.00
18
2635216401
ref: 18
RUBBER,KICK STARTER PEDAL
2635216401
€ 4.00
19
0910008134
ref: 19
BOLT(8X25)
0910008134
€ 3.00
