COWLING (GS125ESM/ESR)
GS125E 1982 (Z) SWEDEN (E17)

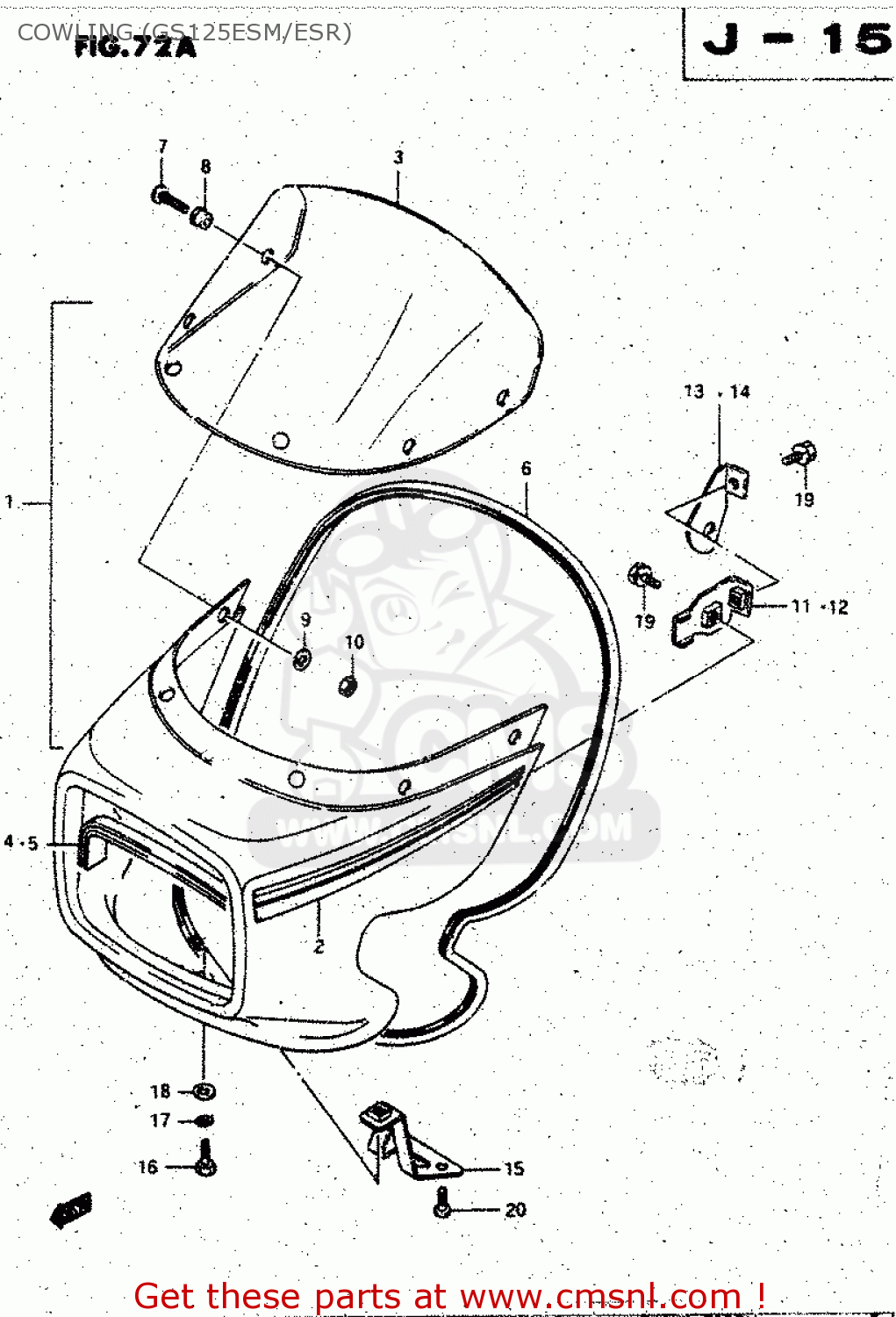

Cowling (gs125esm/esr) diagram GS125E 1982 (Z) SWEDEN (E17)
COWLING (GS125ESM/ESR) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1-1
944000539002X
ref: 1-1
GS125ESM/ESR
COWLING ASSY (BLACK)
€ 243.00
1-2
944000539038K
ref: 1-2
GS125ESM
COWLING ASSY (BLUE)
€ 201.50
1-3
94400053900BX
ref: 1-3
GS125ESM
COWLING ASSY (RED)
€ 0.00
1-4
94400053900NF
ref: 1-4
GS125ESM/ESR
COWLING ASSY (BLUE)
€ 201.50
1-5
94400053900NH
ref: 1-5
GS125ESR
COWLING ASSY (RED)
€ 173.00
2-1
6819005310G38
ref: 2-1
FOR 02X
TAPE SET
€ 0.00
2-2
6819005310G39
ref: 2-2
FOR 38K,0NF
TAPE SET
€ 0.00
2-3
6819005310G41
ref: 2-3
FOR 0BX
TAPE SET
€ 0.00
2-4
68190053107RN
ref: 2-4
FOR 0NH
TAPE SET
€ 0.00
3
9461136500
ref: 3
WINDOW,COWLING
€ 37.00
4
9459139300
ref: 4
MOLDING,HEADLAMP GRILL
€ 11.50
5
9459239300
ref: 5
MOLDING,HEADLAMP GRILL
€ 11.50
6
9463144110
ref: 6
L:1920ARROW RIGHT132
MOLD,COWLING
€ 18.00
7
0913905021
ref: 7
SCREW(5X12)
€ 2.00
8
0932005008
ref: 8
CUSHION
€ 5.00
9
0832201053
ref: 9
WASHER
€ 2.50
10
0831000053
ref: 10
NUT
€ 2.50
11
9451005300
ref: 11
BRACE, COWLING RH
€ 7.00
12
9453005300
ref: 12
BRACE, COWLING LH
€ 5.50
13
9452105361
ref: 13
BRACKET,COWLING FITTING,R
€ 4.50
14
9456105361
ref: 14
BRACKET,COWLING FITTING,L
€ 7.50
15
9455005351
ref: 15
BRACKET,COWLING LWR
€ 6.00
16-1
0110706165
ref: 16-1
GS125ESM
BOLT 6X16
€ 2.00
16-2
0911806067
ref: 16-2
GS125ESR
BOLT
€ 1.50
17
0832121064
ref: 17
GS125ESM
WASHER,LOCK
€ 2.00
18
0916006039
ref: 18
GS125ESM
WASHER (6.5X18X1.6)
€ 2.00
19-1
0113406125
ref: 19-1
GS125ESM
BOLT ,6X12
€ 1.50
19-2
0157006125
ref: 19-2
GS125ESR
BOLT
€ 0.00
20-1
0214206164
ref: 20-1
GS125ESM
SCREW
€ 2.50
20-2
0214206163
ref: 20-2
GS125ESR
SCREW
€ 2.50
