STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL)

GS125E 1982 (Z) SWEDEN (E17)

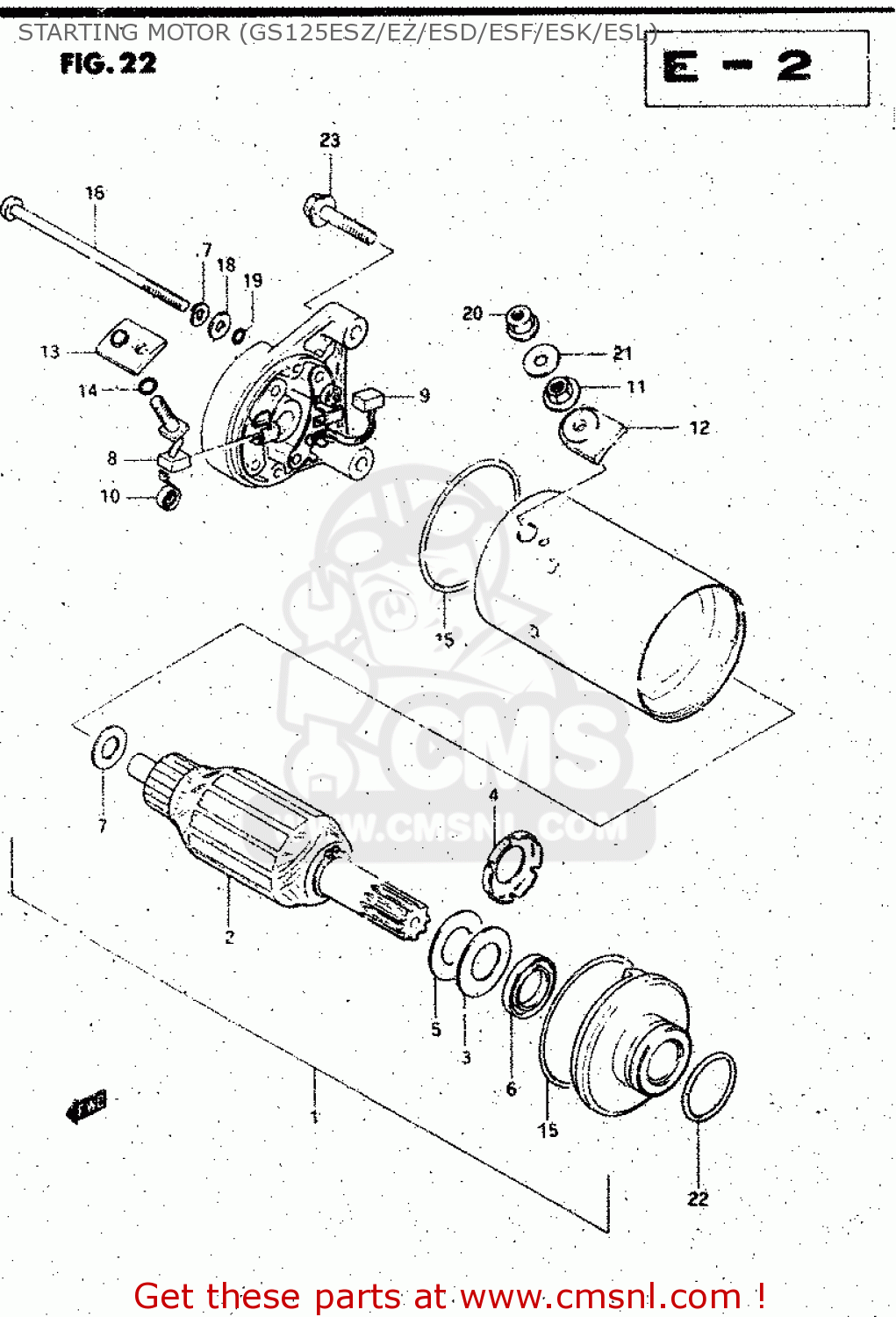

Starting motor (gs125esz/ez/esd/esf/esk/esl) diagram GS125E 1982 (Z) SWEDEN (E17)

STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL) GS125E 1982 (Z) SWEDEN (E17)

STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL) GS125E 1982 (Z) SWEDEN (E17)

prices are in EUR

ref

part #

description

quantity

1-1

3110005300
ref: 1-1
MODEL Z,ARROW RIGHT3

MOTOR ASSEMBLY,STARTING

€ 899.00

1-2

3110005300H17
ref: 1-2
MODEL E17,ARROW RIGH

MOTOR ASSEMBLY,STARTING

€ 899.00

1-3

3110005310H17
ref: 1-3
MODEL D/F/K/L ARROW

MOTOR ASSY, STARTING

€ 899.00

2

3131110201H17
ref: 2

ARMATURE

€ 167.00

3

3136110200
ref: 3

RING,SNAP

€ 2.50

4

3136101400
ref: 4

SHIM,ARMATURE

€ 0.00

5

3136138300
ref: 5

SHIM

€ 1.50

6

3115343400
ref: 6

SEAL,OIL

€ 19.50

7

3136147010
ref: 7

SHIM,ARMATURE

€ 3.50

8

3113005300
ref: 8

BRUSH(+)

€ 13.00

9

3113110200
ref: 9

BRUSH(-)

€ 8.50

10

3113565010
ref: 10

SPRING

€ 3.00

11

0831000067
ref: 11
ARROW LEFT08310-2206

NUT

€ 2.50

12

3117205300
ref: 12

BUSH,A

€ 0.00

13

3117105300
ref: 13

BUSH,B

€ 0.00

14

3114338300
ref: 14

O RING

€ 3.50

15

3126405300
ref: 15

O-RING

€ 9.00

16-1

3128105300
ref: 16-1
MODEL Z/K/L ARROW LE

BOLT

€ 8.50

16-2

3128188C00
ref: 16-2
MODEL D/F,ARROW RIGH

BOLT

€ 8.50

17

0832121057
ref: 17

LOCK WASHER

€ 2.00

18-1

3116138300
ref: 18-1
MODEL Z/K/L

WASHER

€ 2.50

18-2

3116105310
ref: 18-2
MODEL D/F,ARROW RIGH

WASHER

€ 2.50

19

3115638300
ref: 19

O RING

€ 3.00

20

0836135066
ref: 20

NUT

€ 2.00

21

0916006003
ref: 21

WASHER (6.7X16X1.8)

€ 2.00

22

0928024003
ref: 22

O RING(D:3,ID:24.5)

€ 2.00

23-1

0154706357
ref: 23-1
MODEL Z

BOLT

€ 2.50

23-2

0154706354
ref: 23-2
MODEL D/F/K/L

BOLT 6X35

€ 3.00

all assemblies
