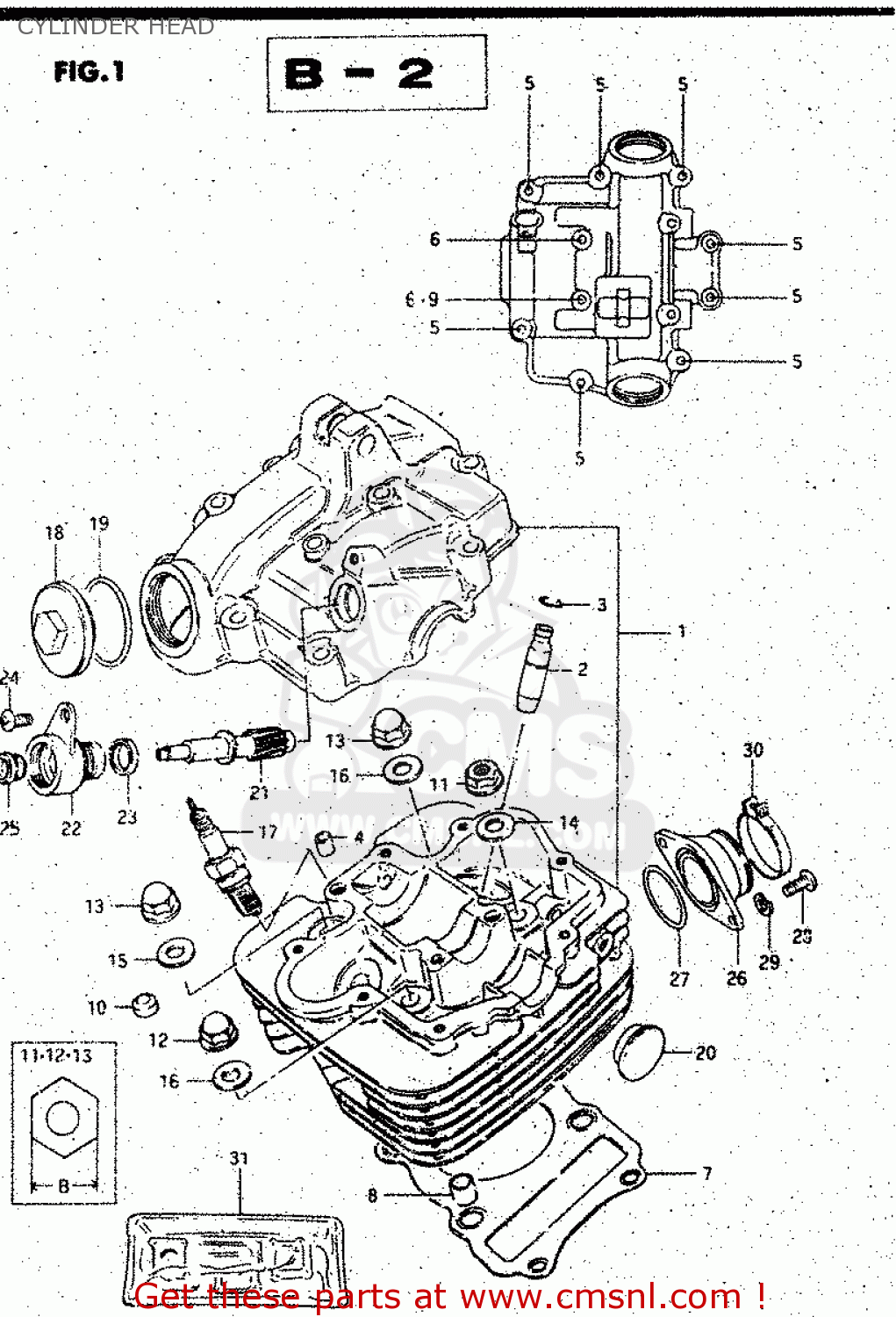

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110005261
ref: 1-1
MODEL Z,ARROW RIGHT1

HEAD ASSEMBLY,CYLINDER

€ 727.50

1-2

1110009270
ref: 1-2
MODEL D,ARROW RIGHT1

HEAD ASSY, CYLINDER

€ 0.00

1-3

1110005272
ref: 1-3
MODEL F/K/L/M/R

HEAD ASSY,CYLINDER

€ 532.50

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5-1

0151706358
ref: 5-1
MODEL Z

BOLT 6X35

€ 2.50

5-2

0151706354
ref: 5-2
MODEL D/F/K/L/M

BOLT 6X35

€ 2.50

5-3

0155006353
ref: 5-3
MODEL R

BOLT

€ 2.50

6-1

0151706608
ref: 6-1
MODEL Z

BOLT (6X60)

€ 2.50

6-2

0151706605
ref: 6-2
MODEL D/F/K/L/M

BOLT ,6X60

€ 2.50

6-3

0155006603
ref: 6-3
MODEL R

BOLT

€ 2.50

7

1114105201
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

1115145000
ref: 10

PAD,CYLINDER HEAD

€ 3.00

11-1

0915908031
ref: 11-1

NUT

€ 2.00

11-2

0831616088
ref: 11-2

NUT

€ 2.50

11-3

0831610083
ref: 11-3
MODEL R

NUT

€ 3.00

12-1

0915908029
ref: 12-1

NUT

€ 6.00

12-2

0915908074
ref: 12-2

NUT

€ 7.00

13-1

0915908035
ref: 13-1

NUT (8MM)

€ 6.00

13-2

0915908064
ref: 13-2

NUT (8MM)

€ 7.00

13-3

0915908074
ref: 13-3
MODEL R

NUT

€ 7.00

14

0916008039
ref: 14

WASHER(8.5X19X2.3)

€ 2.00

15-1

0916008053
ref: 15-1
MODEL Z/D/F/K/L/M

WASHER (8.5X19X2.3)

€ 2.00

15-2

0916006039
ref: 15-2
MODEL R

WASHER (6.5X18X1.6)

€ 2.00

16-1

0916808012
ref: 16-1
MODEL Z/D/F/K/L/M

GASKET (NAS)

€ 4.50

16-2

0916808021
ref: 16-2
MODEL R

GASKET(8.5X17X2.3) (NAS)

€ 3.00

17-1

0948200144
ref: 17-1

SPARK PLUG D8EA

€ 3.50

17-2

0948200145
ref: 17-2

SPARK PLUG X24ES-U

€ 3.50

17-3

0948200399
ref: 17-3
E2,E4,E6,E15,E17,E18

PLUG,SPARK(DR8EA)

€ 3.50

17-4

0948200223
ref: 17-4
E2,E4,E6,E15,E17,E18

PLUG,SPARK(X24ESR-U)

€ 3.50

18-1

1117537111
ref: 18-1
MODEL Z

CAP,INSPECTION HOLE

€ 14.00

18-2

1117532400
ref: 18-2
MODEL D/F/K/L/M

CAP,INSPECTION

€ 9.50

18-3

1117542A00
ref: 18-3
MODEL R

CAP,INSPECTION

€ 9.50

19

0928030001
ref: 19

O RING(D:3,ID:29.5)

€ 2.00

20

0924122002
ref: 20

PLUG(OD:22.5)

€ 5.50

21

2643105201
ref: 21

GEAR,TACHOMETER DRIVEN

€ 21.50

22

2644149000
ref: 22

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

23

2645145000A
ref: 23

SEAL,TACHOMETER DRIVEN

€ 4.50

24

0912805101
ref: 24

SCREW(5X12)

€ 1.50

25

0928905002
ref: 25

SEAL,OIL(5X12X8)

€ 11.00

26-1

1311005310
ref: 26-1
MODEL Z/D/F/K

PIPE, INTAKE

€ 25.50

26-2

1311005300
ref: 26-2
GS125ESK/ESL E24 MOD

PIPE,INTAKE

€ 33.50

27

0928032006
ref: 27

O RING(D:2.4,ID:31.7)

€ 2.50

28-1

0211206164
ref: 28-1
MODEL Z/D/F/K/L/M

SCREW

€ 2.00

28-2

0211236163
ref: 28-2
MODEL R

SCREW

€ 2.50

29

0832121064
ref: 29
MODEL Z/D/F/K/L/M

WASHER,LOCK

€ 2.00

30-1

0940246208
ref: 30-1
MODEL Z/D/F/K

CLAMP

€ 4.50

30-2

0940244208
ref: 30-2
GS125ESK/ESL E24 MOD

CLAMP

€ 5.50

31-1

1140105861
ref: 31-1

GASKET SET (NAS)

€ 79.50

31-2

1140005853
ref: 31-2
GS125Z/D/UR

GASKET SET

€ 47.50
