REAR WHEEL (GS125Z/D)
GS125E 1982 (Z) SWEDEN (E17)

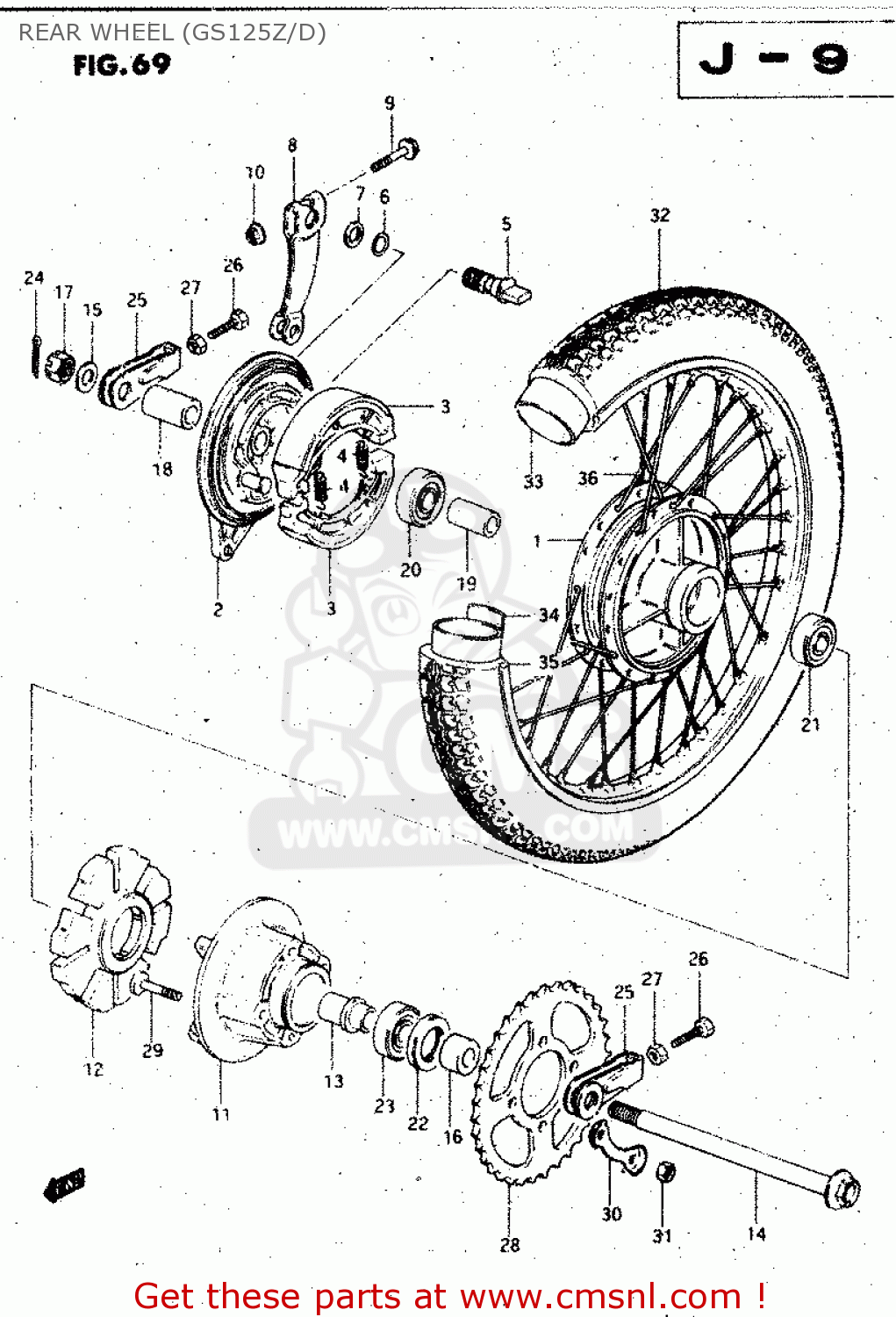

Rear wheel (gs125z/d) diagram GS125E 1982 (Z) SWEDEN (E17)
REAR WHEEL (GS125Z/D) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1
6411007604
ref: 1
HUB,RR
€ 149.00
2
6421039103
ref: 2
PANEL,REAR BRAKE ANCHOR
€ 165.50
3-1
5441007003
ref: 3-1
E1
SHOE,BRAKE
€ 35.00
3-2
5441037400
ref: 3-2
E24
SHOE,BRAKE (MCA)
€ 26.00
4
0944307001
ref: 4
SPRING(L:34)
€ 2.50
5
5444129304
ref: 5
CAM,FRONT BRAKE
€ 13.00
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
€ 3.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
€ 2.50
8
6445113200
ref: 8
LEVER,RR BRAKE CAM
€ 9.50
9
0191706358
ref: 9
BOLT
€ 0.00
10
0915906017
ref: 10
NUT
€ 2.50
11
6461005301
ref: 11
DRUM,RR SPROCKET MOUNTING
€ 61.00
12
6465107001
ref: 12
ABSORBER ASSY,HUB SHOCK
€ 16.00
13
6473305301
ref: 13
RETAINER,RR SPROCKET DRUM
€ 6.50
14
6471105300
ref: 14
AXLE,REAR
€ 35.50
15
0832211148
ref: 15
WASHER
€ 2.00
16
0918015042
ref: 16
SPACER(15X28X19)
€ 5.50
17
0914114001
ref: 17
NUT
€ 4.50
18
0918015002
ref: 18
SPACER(15.2X26X33)
€ 5.00
19
0918015011
ref: 19
SPACER(15.3X21.7X63)
€ 7.50
20
0814463027
ref: 20
BEARING
€ 17.50
21
0814362027
ref: 21
BEARING
€ 12.50
22
0928528001
ref: 22
SEAL,OIL(28X47X7)
€ 11.50
23
0926220069
ref: 23
BEARING(20X47X14)
€ 28.00
24
0411130308
ref: 24
COTTER PIN
€ 1.50
25
6141036002
ref: 25
ADJUSTER,CHAIN
€ 11.50
26
0910408006
ref: 26
BOLT
€ 3.00
27
0831012088
ref: 27
NUT
€ 2.00
28
6451120731
ref: 28
SPROCKET,REAR
€ 29.50
29
0911908043
ref: 29
BOLT
€ 2.00
30
0916908012
ref: 30
WASHER
€ 2.00
31
0831012088
ref: 31
NUT
€ 2.00
32
6510036610
ref: 32
TIRE
€ 120.00
33
5520011601
ref: 33
TUBE,INNER
€ 24.50
34
5526111010
ref: 34
PROTECTOR,INNER TUBE
€ 3.50
35
5531105300
ref: 35
RIM,FR WHEEL 1.60X18
€ 86.50
36
6532020120
ref: 36
SPOKE SET,RR
€ 34.50
