TURN SIGNAL LAMP (E15,E17,E18,E39)
GS125E 1982 (Z) SWEDEN (E17)

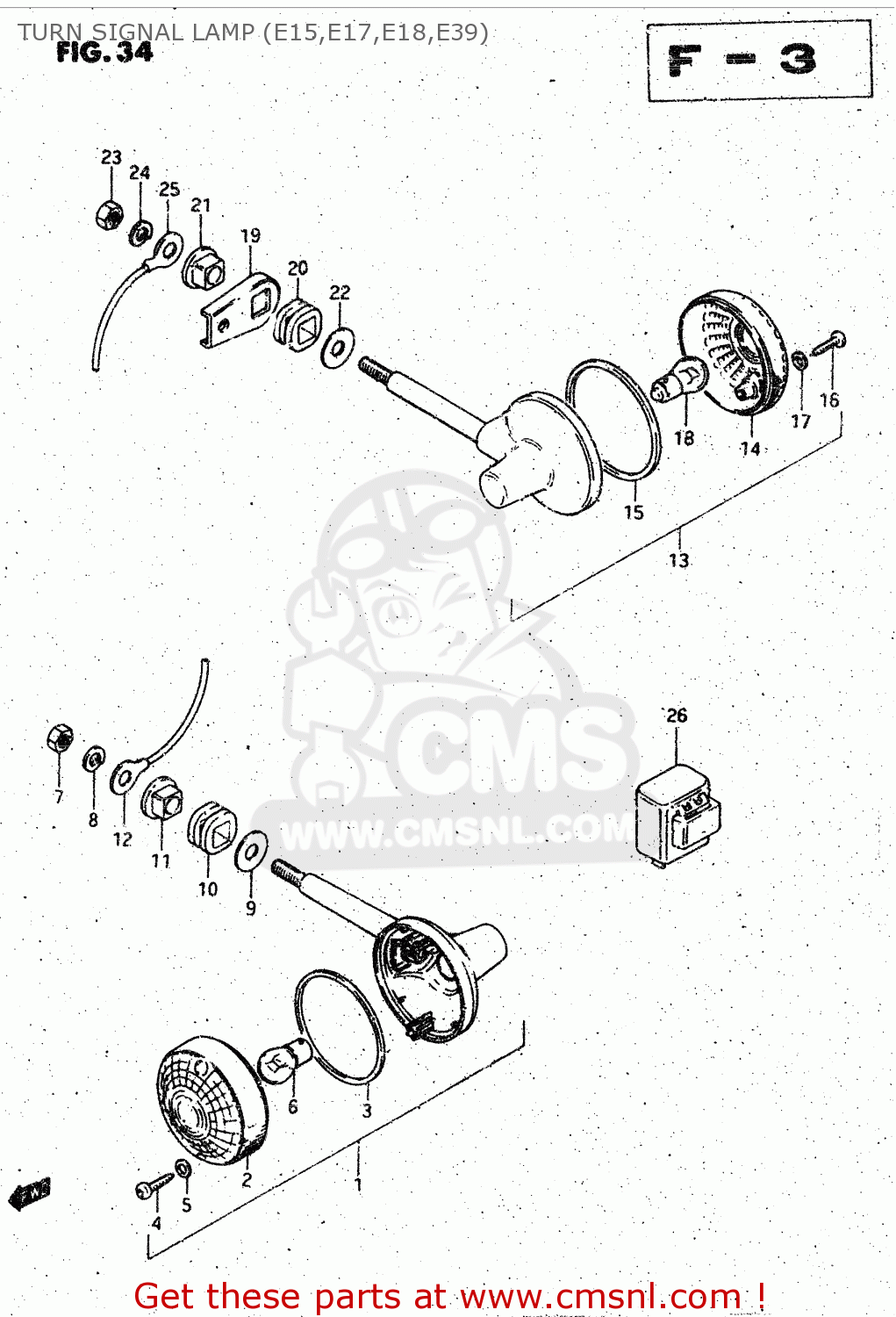

Turn signal lamp (e15,e17,e18,e39) diagram GS125E 1982 (Z) SWEDEN (E17)
TURN SIGNAL LAMP (E15,E17,E18,E39) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560146120999
ref: 1-1
E15
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 78.50
1-2
3560332411999
ref: 1-2
E17
LAMP ASSY,TURNSIGNAL
€ 80.50
1-3
3560146782999
ref: 1-3
E18
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 78.50
1-4
3560147184999
ref: 1-4
E39
LAMP ASSY, FRONT TURN SIGNAL
€ 0.00
2-1
3561228620
ref: 2-1
E15,E17,E18
LENS
€ 10.50
2-2
3565239280
ref: 2-2
E39
LENS
€ 9.00
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104207
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947112045
ref: 6
BULB(12V21W)
€ 5.00
7
0831012106
ref: 7
NUT
€ 2.00
8
0832121106
ref: 8
LOCK WASHER
€ 3.00
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
€ 2.50
10
3569032200
ref: 10
CUSHION
€ 38.50
11
3569532401
ref: 11
SPACER
€ 4.50
12
3666033000
ref: 12
LEAD WIRE,EARTH
€ 5.00
13-1
3560310240
ref: 13-1
E15,E17
LAMP ASSY, REAR TURN SIGNAL
€ 78.50
13-2
3560347614
ref: 13-2
E18,E39
LAMP ASSY, REAR TURN SIGNAL
€ 65.00
14
3565239280
ref: 14
LENS
€ 9.00
15
3561328620
ref: 15
GASKET (NAS)
€ 7.00
16
0321104207
ref: 16
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
0947112045
ref: 18
BULB(12V21W)
€ 5.00
19
3562005310
ref: 19
BRACKET,RR TURNSIGNAL LAMP
€ 5.50
20
0932015004
ref: 20
CUSHION
€ 5.00
21
3569532401
ref: 21
SPACER
€ 4.50
22
0916010006
ref: 22
WASHER (10.5X30X2.3)
€ 2.50
23
0831012108
ref: 23
NUT
€ 2.50
24
0832121107
ref: 24
WASHER,LOCK,10
€ 2.00
25
3666033000
ref: 25
LEAD WIRE,EARTH
€ 5.00
26
3861031310
ref: 26
ARROW LEFT38610-4503
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
