SPEEDOMETER - TACHOMETER (GS125Z/D,UR E71)

GS125E 1982 (Z) SWEDEN (E17)

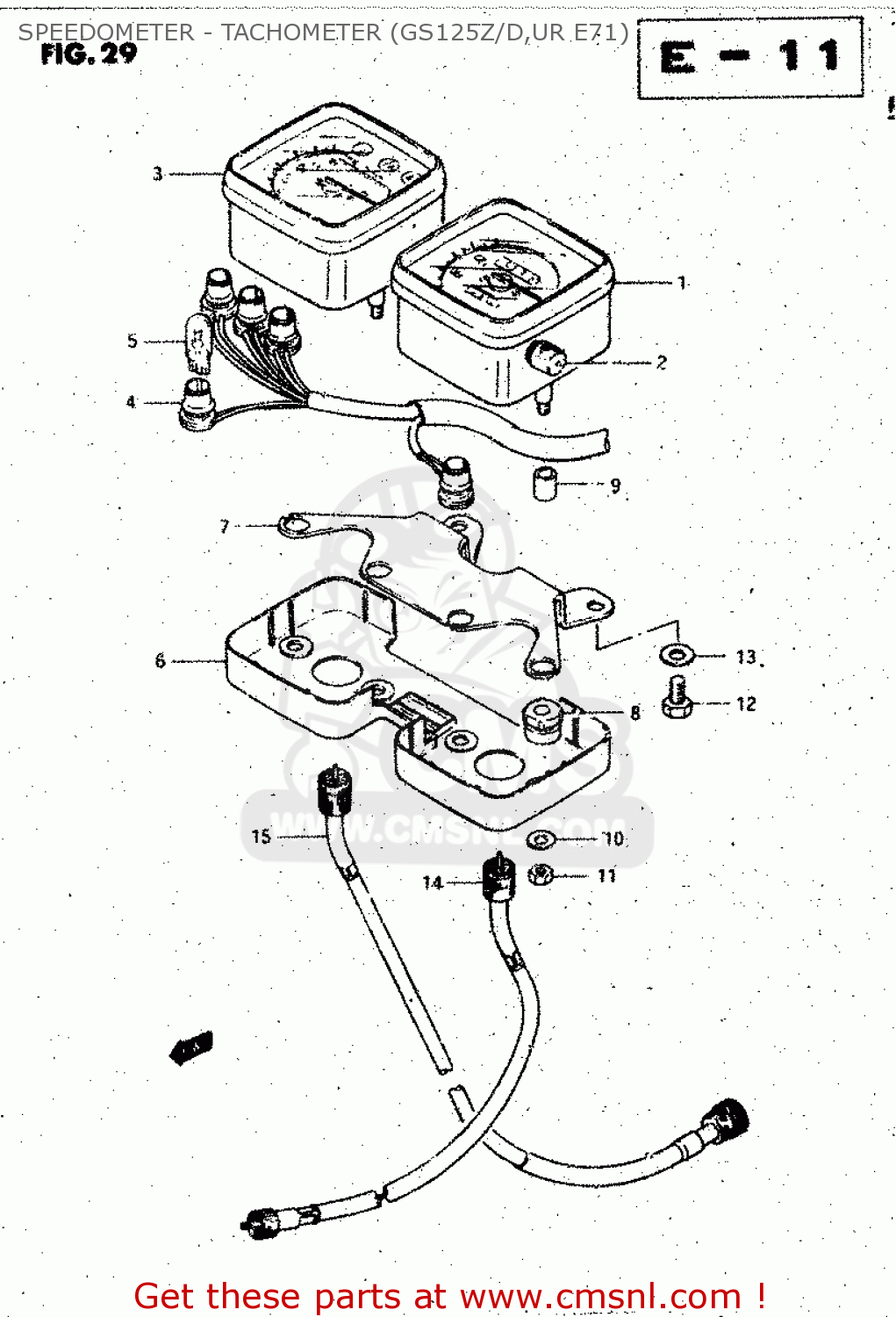

Speedometer - tachometer (gs125z/d,ur e71) diagram GS125E 1982 (Z) SWEDEN (E17)

SPEEDOMETER - TACHOMETER (GS125Z/D,UR E71) GS125E 1982 (Z) SWEDEN (E17)
SPEEDOMETER - TACHOMETER (GS125Z/D,UR E71) GS125E 1982 (Z) SWEDEN (E17)
SPEEDOMETER - TACHOMETER (GS125Z/D,UR E71) GS125E 1982 (Z) SWEDEN (E17)
prices are in EUR
ref
part #
description
quantity
1-1
3411005030
ref: 1-1
ARROW LEFT34110-0536
METER,SPEED (KM/MPH)
€ 258.50
1-2
3411005350
ref: 1-2
SPEEDOMETER(KILO)
€ 154.50
2
3412428010
ref: 2
KNOB,TRIP
3412428010
€ 7.50
3
3421005350
ref: 3
TACHOMETER
€ 141.50
4
3417305350
ref: 4
SOCKET
€ 0.00
5
0947112082
ref: 5
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
6
3419336500
ref: 6
COVER,METER UNDER
3419336500
€ 13.50
7
3495005350
ref: 7
BRACKET
€ 0.00
8
3418928310
ref: 8
CUSHION,METER
3418928310
€ 2.50
9
3418726400
ref: 9
SPACER
3418726400
€ 3.00
10-1
0916005031
ref: 10-1
MODEL Z/D
WASHER
€ 1.50
10-2
0916005037
ref: 10-2
MODEL R
WASHER(5.5X16X1.2)
0916005037
€ 1.50
11
0831311055
ref: 11
NUT
0831311055
€ 2.00
12-1
0110708127
ref: 12-1
MODEL Z/D
BOLT 8X12
€ 2.50
12-2
0155008123
ref: 12-2
MODEL R
BOLT
0155008123
€ 3.50
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14-1
3491039991
ref: 14-1
MODEL Z/D
CABLE ASSY,SPEEDOMETER
3491039991
€ 59.00
14-2
3491039990
ref: 14-2
MODEL R
CABLE ASSEMBLY,SPEEDOMETER
3491039990
€ 32.50
15
3494044111
ref: 15
CABLE ASSEMBLY,TACHOMETER
3494044111
€ 49.00
