FRONT WHEEL (GS125UR)
GS125E 1982 (Z) SWEDEN (E17)

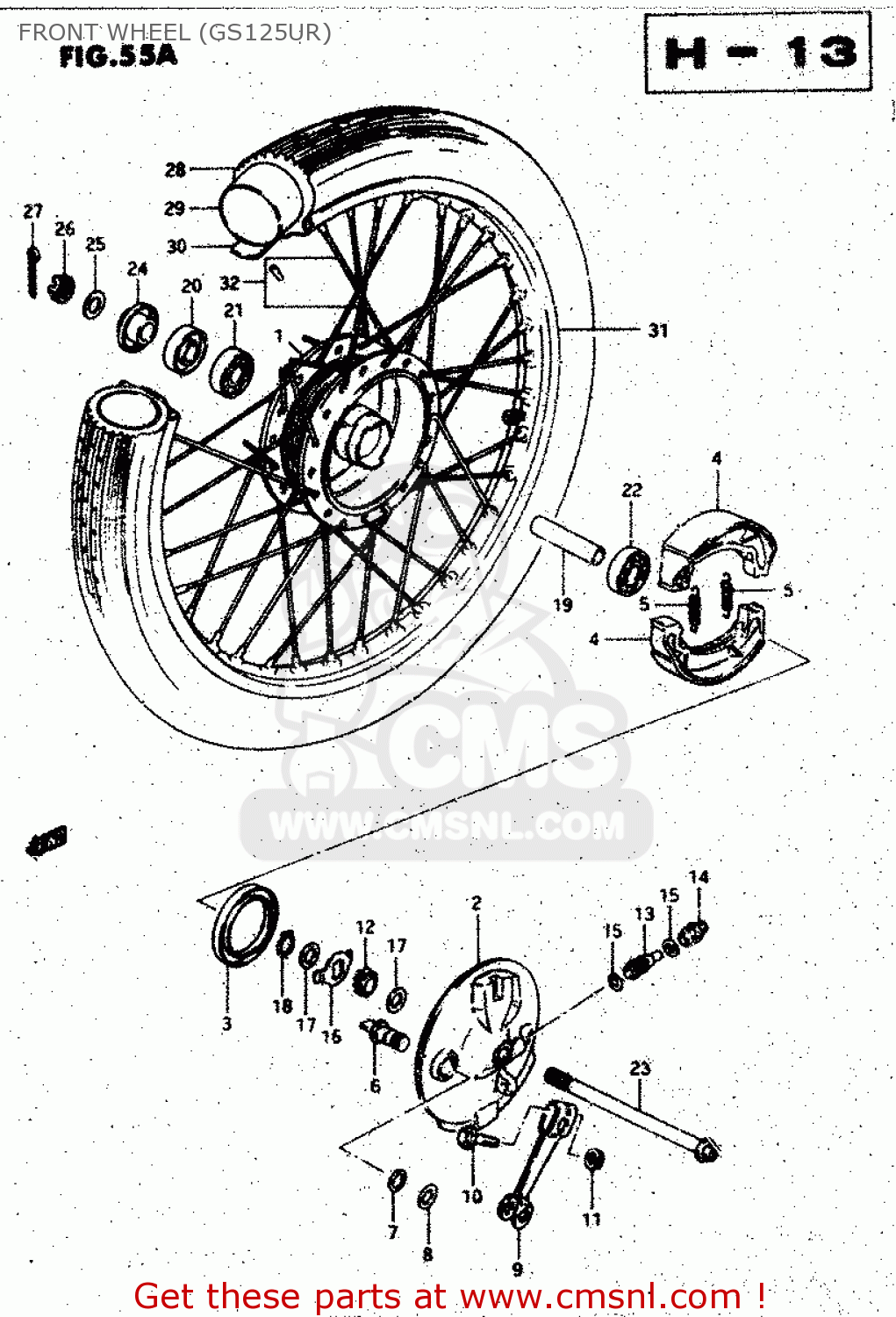

Front wheel (gs125ur) diagram GS125E 1982 (Z) SWEDEN (E17)
FRONT WHEEL (GS125UR) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1
5411007003
ref: 1
HUB,FR WHEEL
€ 137.50
2
5421005301
ref: 2
PANEL,FRONT BRAKE ANCHOR
€ 0.00
3
0928548001
ref: 3
SEAL,OIL(48X62X7)
€ 5.50
4
5441007040
ref: 4
SHOE,BRAKE
€ 35.00
5
0944307001
ref: 5
SPRING(L:34)
€ 2.50
6
5444129305
ref: 6
CAM,BRAKE
€ 13.00
7
0928014003
ref: 7
O-RING (D:2.4 ID:13.8)
€ 3.50
8
0916014001
ref: 8
WASHER (14.5X22X1.6)
€ 2.50
9
5445146110
ref: 9
LEVER,FR BRAKE CAM
€ 7.50
10
0155006353
ref: 10
BOLT
€ 2.50
11
0831610063
ref: 11
NUT
€ 2.50
12
5461107002
ref: 12
GEAR,SPEEDOMETER(NT:24)
€ 16.50
13
5462139202
ref: 13
PINION,SPEEDOMETER(NT:9)
€ 33.50
14
5463202201
ref: 14
BUSH,SPEEDOMETER PINION OUTER
€ 6.50
15
0916005001
ref: 15
WASHER (5.1X9X0.4)
€ 2.00
16
5466107000
ref: 16
DRIVER,SPEEDOMETER GEAR
€ 3.00
17
0916018002
ref: 17
WASHER(18.5X24X1)
€ 2.00
18
0833131186
ref: 18
CLIP
€ 2.00
19
0918012032
ref: 19
SPACER(12.6X19X47)
€ 6.00
20
0928418001
ref: 20
OIL SEAL(17X38X5)
€ 12.50
21
0811363010
ref: 21
BEARING
€ 9.50
22
0814363017
ref: 22
BEARING
€ 14.50
23
5471141101
ref: 23
AXLE,FR
€ 42.00
24
5474041301
ref: 24
SPACER,FR AXLE,R
€ 5.50
25
0832201127
ref: 25
WASHER
€ 2.00
26
0914112003
ref: 26
NUT
€ 4.50
27
0411120308
ref: 27
COTTER PIN
€ 1.00
28
5510012B00
ref: 28
TIRE,FR(2.75-18)
€ 201.00
29
5520011601
ref: 29
TUBE,INNER
€ 24.50
30
5526111010
ref: 30
PROTECTOR,INNER TUBE
€ 3.50
31
5531105300
ref: 31
RIM,FR WHEEL 1.60X18
€ 86.50
32
5532005300
ref: 32
SPOKE SET,FRONT
€ 34.50
