HEACLAMP (E1,E2,E24,E30,E71)

GS125E 1982 (Z) SWEDEN (E17)

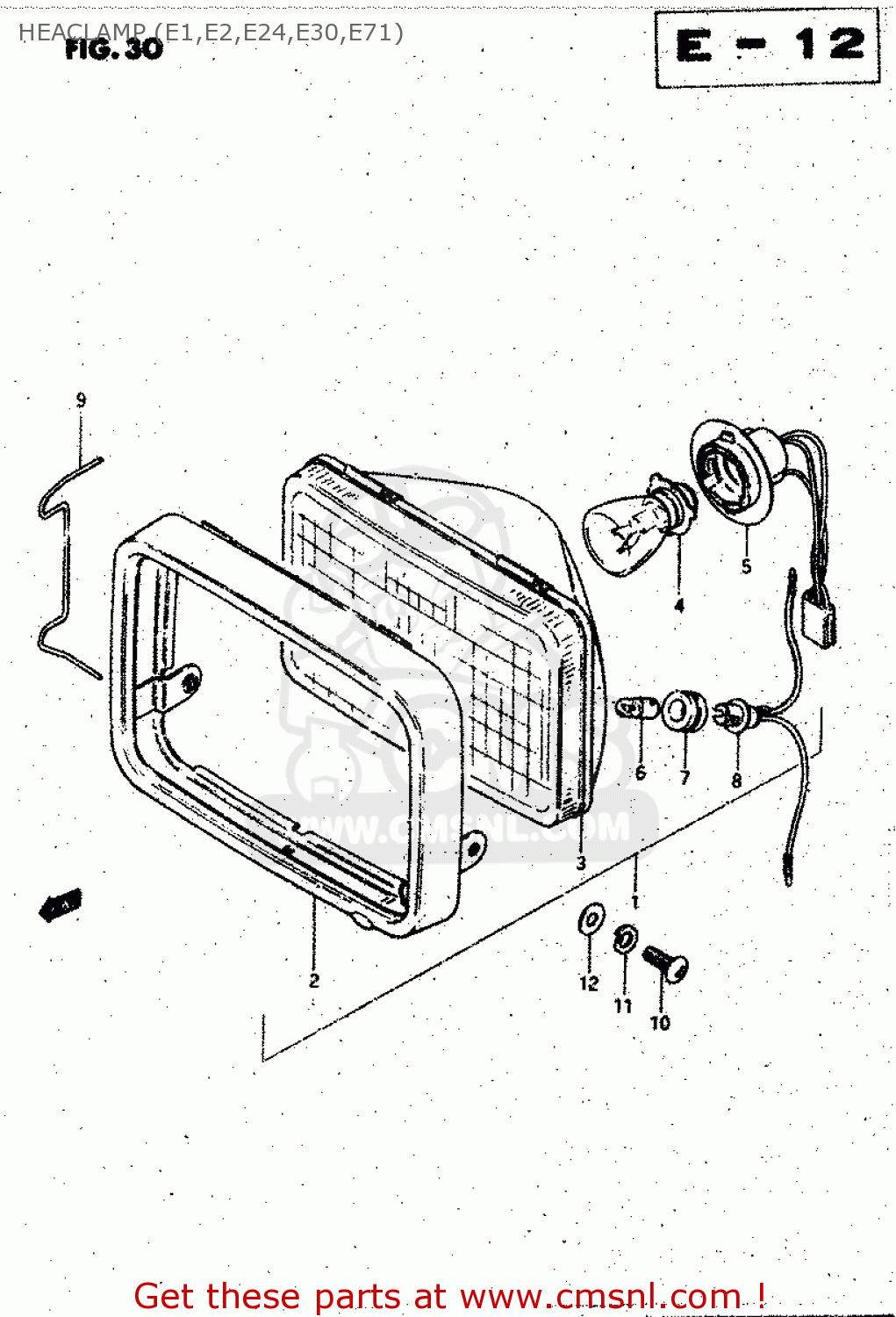

Heaclamp (e1,e2,e24,e30,e71) diagram GS125E 1982 (Z) SWEDEN (E17)

HEACLAMP (E1,E2,E24,E30,E71) GS125E 1982 (Z) SWEDEN (E17)

HEACLAMP (E1,E2,E24,E30,E71) GS125E 1982 (Z) SWEDEN (E17)

prices are in EUR

ref

part #

description

quantity

1-1

3510036510
ref: 1-1
E1,E24,E30,E71

HEADLAMP ASSY

€ 0.00

1-2

3510036520
ref: 1-2
E2

HEADLAMP ASSY

€ 0.00

2

3511136510
ref: 2

RIM

€ 44.00

3-1

3512136510
ref: 3-1
E1,E24,E30,E71

LAMP UNIT

€ 0.00

3-2

3512136520
ref: 3-2
E2

LAMP UNIT

€ 0.00

4

0947112033
ref: 4

BULB 12V35/35W

€ 6.00

5-1

3517127320
ref: 5-1
E1,E24,E30,E71

SOCKET,HEADLAMP

€ 15.50

5-2

3517136621
ref: 5-2
E2

SOCKET

€ 15.50

6

0947112001
ref: 6
E2

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

7

3611622630
ref: 7
E2

JOINT,RUBBER

€ 5.00

8

3611849320
ref: 8
E2

SOCKET

€ 12.00

9

3512836511
ref: 9

SPRING

€ 4.00

10-1

0211205128
ref: 10-1
MODEL Z/D/F/K/L/M

SCREW

€ 2.50

10-2

0211275127
ref: 10-2
MODEL R

SCREW

€ 2.50

11

0832121057
ref: 11

LOCK WASHER

€ 2.00

12

0832221057
ref: 12

WASHER

€ 2.50
