HANDLE SWITCH (GS125ESE/EZ/ESD/ESF)

GS125E 1982 (Z) SWEDEN (E17)

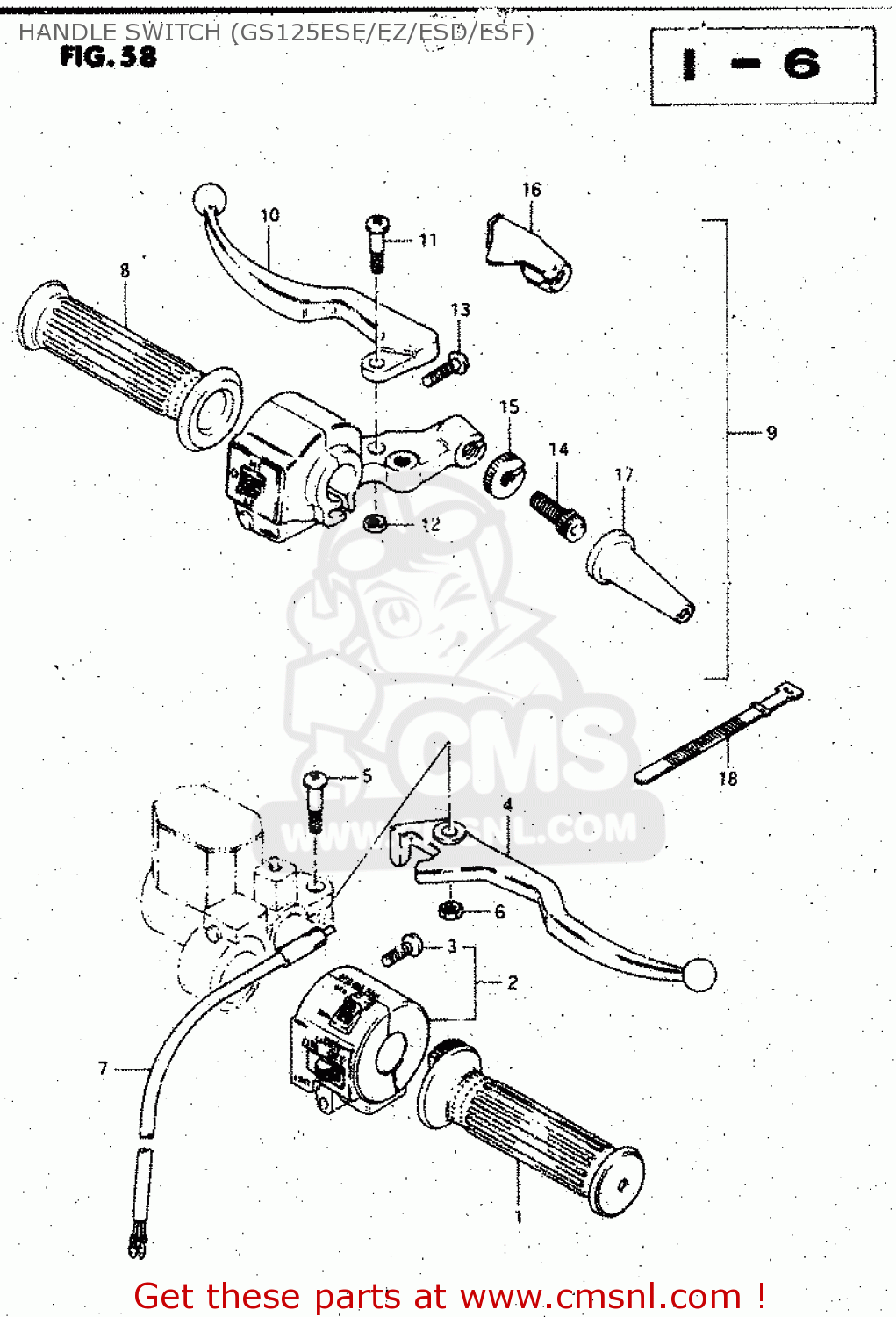

Handle switch (gs125ese/ez/esd/esf) diagram GS125E 1982 (Z) SWEDEN (E17)

HANDLE SWITCH (GS125ESE/EZ/ESD/ESF) GS125E 1982 (Z) SWEDEN (E17)
HANDLE SWITCH (GS125ESE/EZ/ESD/ESF) GS125E 1982 (Z) SWEDEN (E17)
HANDLE SWITCH (GS125ESE/EZ/ESD/ESF) GS125E 1982 (Z) SWEDEN (E17)
prices are in EUR
ref
part #
description
quantity
1
3711013010
ref: 1
GRIP, THROTTLE
€ 0.00
2-1
3720005312
ref: 2-1
E1,E6,E24,E30
SWITCH ASSY,HANDLE,R
€ 0.00
2-2
3720005302
ref: 2-2
E2,E4,E15,E17,E18,E3
SWITCH ASSY,HANDLE,R
3720005302
€ 86.50
3
0211205208
ref: 3
SCREW 5X20
0211205208
€ 3.00
4
5742113001
ref: 4
LEVER,BRAKE
5742113001
€ 18.00
5
5743113010
ref: 5
SCREW
5743113010
€ 5.50
6
0831921065
ref: 6
NUT
0831921065
€ 2.50
7
5746013001
ref: 7
SWITCH ASSY,STOP
5746013001
€ 18.00
8
5721146120
ref: 8
GRIP,L
5721146120
€ 13.00
9-1
5750005312
ref: 9-1
E1,E2,E4,E6,E17,E18,
LEVER ASSY,CLUTCH
5750005312
€ 71.00
9-2
5750005321
ref: 9-2
E15,E39
LEVER ASSY, CLUTCH
€ 0.00
10
5762036500
ref: 10
LEVER,CLUTCH
5762036500
€ 34.50
11
5743113001
ref: 11
SCREW
5743113001
€ 5.00
12
0831921055
ref: 12
NUT 8MM
0831921055
€ 1.50
13
0211205205
ref: 13
SCREW 5X20
0211205205
€ 2.50
14
5744111010
ref: 14
ADJUSTER,CABLE
5744111010
€ 8.00
15
5744211010
ref: 15
NUT,CABLE ADJUSTER
5744211010
€ 4.00
16
5766131000
ref: 16
COVER,CLUTCH LEVER
5766131000
€ 5.50
17
5827331000
ref: 17
BOOT,CLUTCH CABLE
5827331000
€ 2.50
18
0940712402
ref: 18
CLAMP(L:120)
0940712402
€ 3.00
