REAR SWINGING ARM (E15,E17)
GS125E 1982 (Z) SWEDEN (E17)

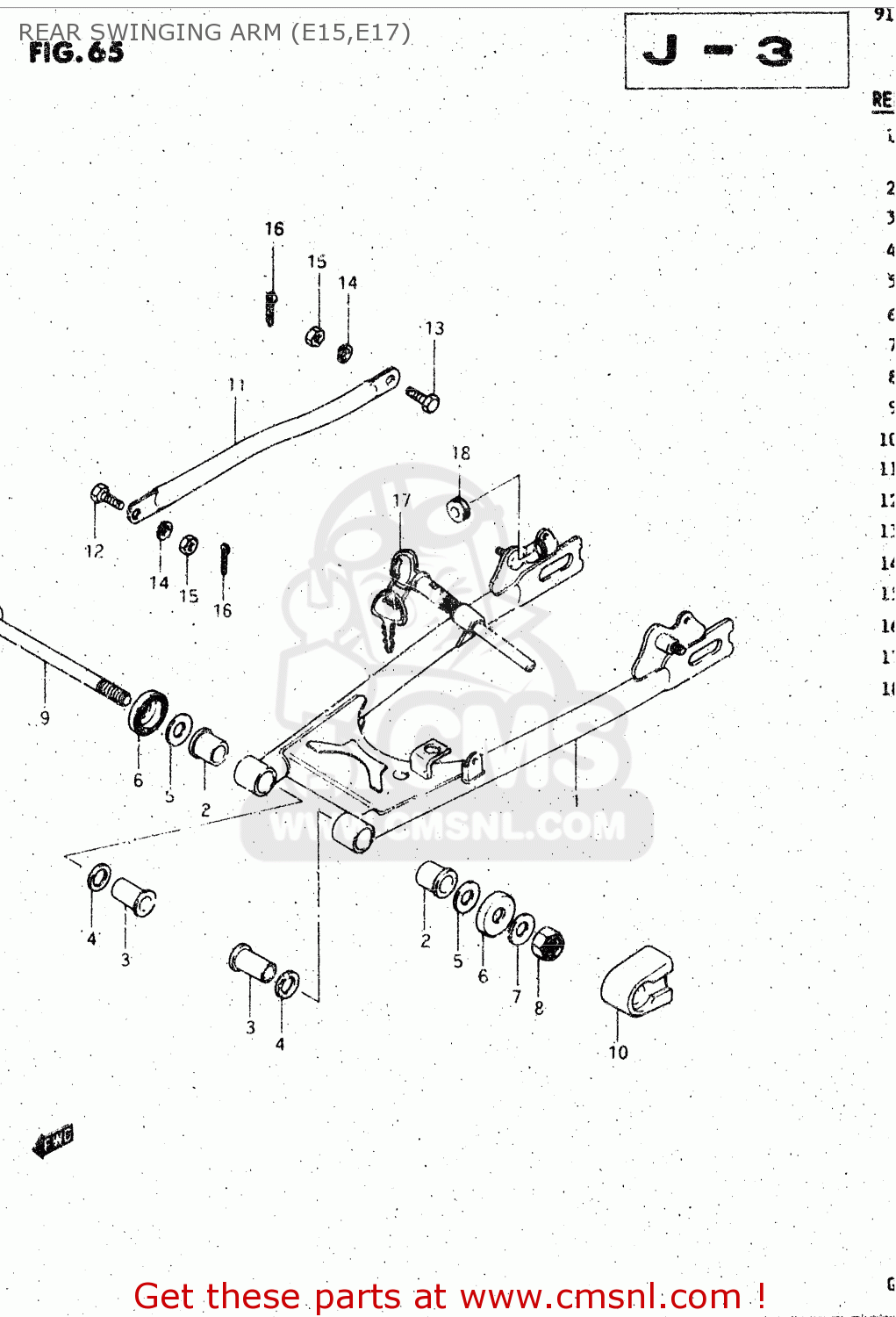

Rear swinging arm (e15,e17) diagram GS125E 1982 (Z) SWEDEN (E17)
REAR SWINGING ARM (E15,E17) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1
6100005320019
ref: 1
SWINGING ARM ASSY, REAR (BLACK)
€ 0.00
2
6126105301
ref: 2
BUSH,RR SWINGING ARM PIVOT
€ 9.50
3
6125105300
ref: 3
SPACER,RR SWGARM PIVOT
€ 10.00
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
€ 2.50
5
0821114341
ref: 5
WASHER
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
7
0832201143
ref: 7
WASHER
€ 2.00
8
0831921148
ref: 8
NUT 14MM
€ 3.00
9
6121105301
ref: 9
SHAFT,REAR SWING ARM
€ 12.00
10
6127305300
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
€ 27.50
11
6431005311019
ref: 11
TORQUELINK,RR
€ 15.00
12
0911108012
ref: 12
BOLT(8X22.5)
€ 3.00
13
0911108013
ref: 13
BOLT(8X26.5)
€ 3.00
14
0916208008
ref: 14
WASHER,LOCK
€ 2.00
15
0914008008
ref: 15
NUT
€ 1.50
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
5190026810
ref: 17
LOCK SET, WHEEL
€ 0.00
18
0932010015
ref: 18
CUSHION
€ 2.50
