CRANKCASE (GS125D,GS125UR)

GS125E 1982 (Z) SWEDEN (E17)

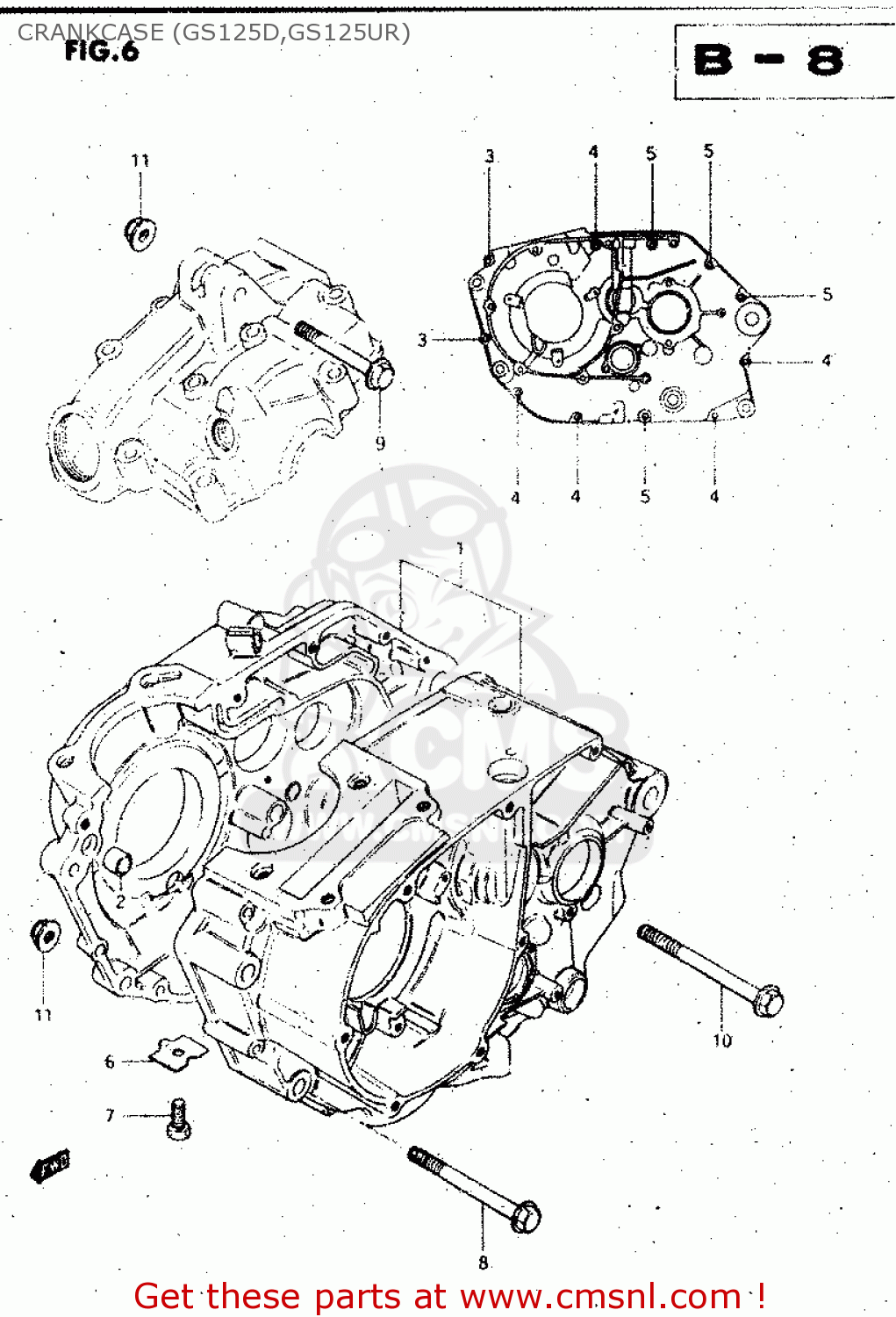

Crankcase (gs125d,gs125ur) diagram GS125E 1982 (Z) SWEDEN (E17)

CRANKCASE (GS125D,GS125UR) GS125E 1982 (Z) SWEDEN (E17)

CRANKCASE (GS125D,GS125UR) GS125E 1982 (Z) SWEDEN (E17)

prices are in EUR

ref

part #

description

quantity

1

1130005854
ref: 1

CRANKCASE SET

€ 247.50

2

0421113189
ref: 2
ARROW LEFT09206-1300

PIN

€ 2.50

3-1

0154706454
ref: 3-1
MODEL D

BOLT

€ 3.00

3-2

0154706453
ref: 3-2
MODEL R

BOLT

€ 3.00

4-1

0154706605
ref: 4-1
MODEL D

BOLT (6X60)

€ 3.50

4-2

0154706603
ref: 4-2
MODEL R

BOLT

€ 3.50

5-1

0154706755
ref: 5-1
MODEL D

BOLT (6X75)

€ 2.00

5-2

0154706753
ref: 5-2
MODEL R

BOLT

€ 2.00

6-1

1131905210
ref: 6-1
MODEL D

PLATE,OIL GALLERY PLUG

€ 2.50

6-2

1131905200
ref: 6-2
MODEL R

PLATE,OIL GALLERY PLUG

€ 2.50

7-1

0110706104
ref: 7-1
MODEL D

BOLT

€ 2.00

7-2

0150006103
ref: 7-2
MODEL R

BOLT

€ 2.00

8

0910308016
ref: 8

BOLT(8X80)

€ 8.00

9

0910308081
ref: 9

BOLT(8X50)

€ 3.50

10

0910308010
ref: 10

BOLT(8X88)

€ 55.50

11

0831931087
ref: 11

NUT

€ 2.50
