FRAME COVER (MODEL F/K/L)
GS125E 1982 (Z) SWEDEN (E17)

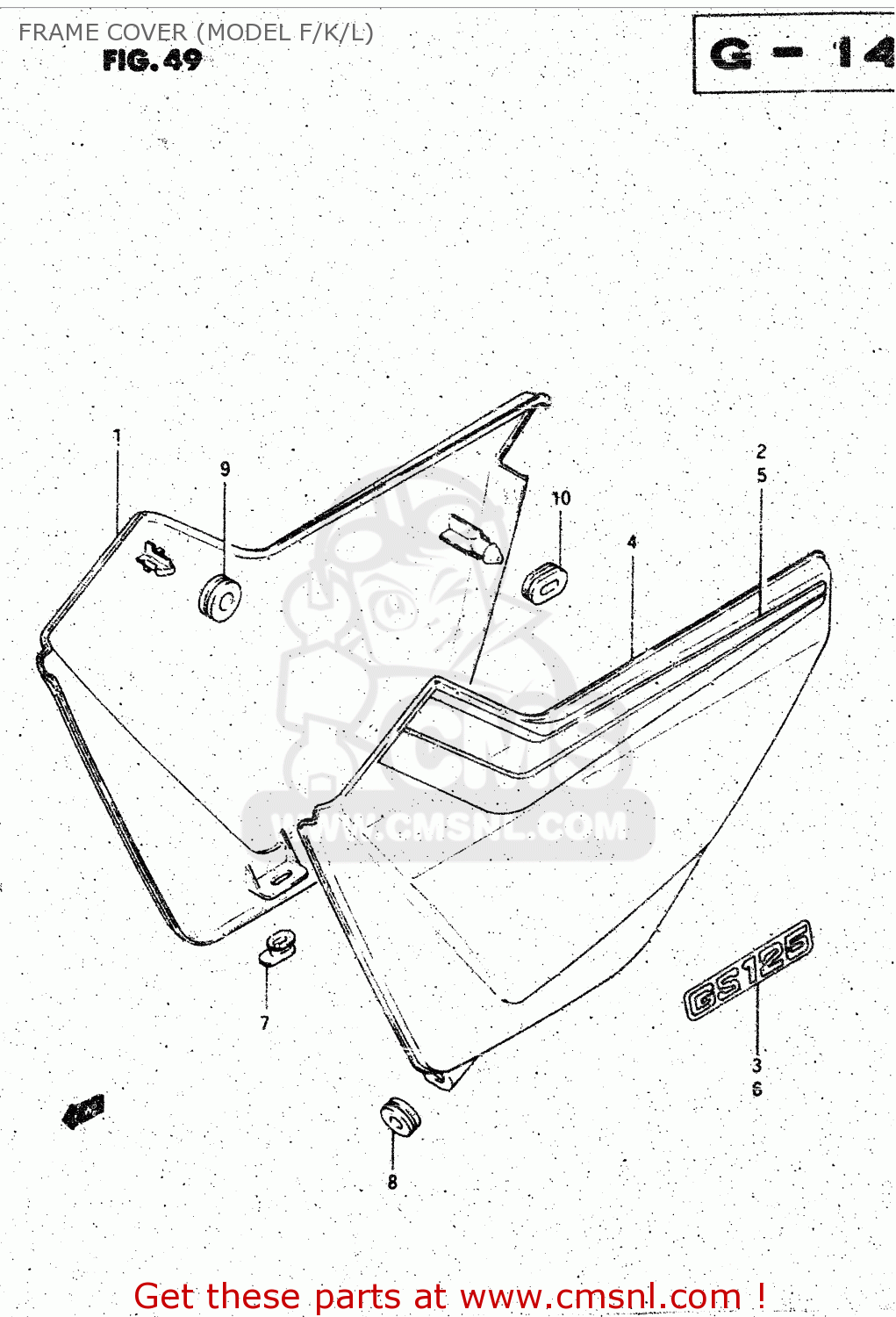

Frame cover (model f/k/l) diagram GS125E 1982 (Z) SWEDEN (E17)
FRAME COVER (MODEL F/K/L) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1-1
471110535107P
ref: 1-1
COVER, FRAME RH (RED)
€ 62.50
1-2
471110535104Y
ref: 1-2
COVER, FRAME RH (BLUE)
€ 50.00
1-3
4711105351019
ref: 1-3
COVER,FRAME,R(BLACK)
€ 50.00
1-4
471110535114L
ref: 1-4
COVER,FRAME,R(WHITE)
€ 65.00
1-5
471110535122R
ref: 1-5
MODEL K/L
COVER, FRAME RH (WHITE)
€ 50.00
1-6
47111053510NH
ref: 1-6
MODEL L
COVER,FRAME,R(RED)
€ 62.50
2-1
68130053107RN
ref: 2-1
FOR 07P,0NH
TAPE SET, FRAME COVER RH
€ 14.00
2-2
68130053107SL
ref: 2-2
FOR 04Y
TAPE SET, FRAME COVER RH
€ 0.00
2-3
68130053107RM
ref: 2-3
FOR 019
TAPE SET, FRAME COVER RH
€ 0.00
2-4
68130053107DH
ref: 2-4
FOR 14L
TAPE SET, FRAME COVER RH
€ 0.00
2-5
68130053102WT
ref: 2-5
MODEL K/E,FOR 22R
TAPE SET,FRM COVER,R
€ 0.00
3-1
6813105390064
ref: 3-1
FOR 07P,04Y,019,0NH
EMBLEM
€ 5.50
3-2
6813105390019
ref: 3-2
FOR 14L,22R
EMBLEM
€ 10.00
4-1
472110535107P
ref: 4-1
COVER, FRAME LH (RED)
€ 62.50
4-2
472110535104Y
ref: 4-2
COVER, FRAME LH (BLUE)
€ 55.50
4-3
4721105351019
ref: 4-3
COVER,FRAME,L(BLACK)
€ 55.50
4-4
472110535114L
ref: 4-4
COVER, FRAME LH (WHITE)
€ 55.50
4-5
472110535122R
ref: 4-5
MODEL K/L
COVER,FRAME,L(WHITE)
€ 0.00
4-6
47211053510NH
ref: 4-6
MODEL L
COVER,FRAME,L(RED)
€ 62.50
5-1
68140053107RN
ref: 5-1
FOR 07P,0NH
TAPE SET, FRAME COVER LH
€ 14.00
5-2
68140053107SL
ref: 5-2
FOR 04Y
TAPE SET, FRAME COVER LH
€ 12.50
5-3
68140053107RM
ref: 5-3
FOR 019
TAPE SET, FRAME COVER LH
€ 0.00
5-4
68140053107DH
ref: 5-4
FOR 14L
TAPE SET, FRAME COVER LH
€ 0.00
5-5
68140053102WT
ref: 5-5
MODEL K/L, FOR 22R
TAPE SET,FRM COVER,L
€ 0.00
6-1
6813105390064
ref: 6-1
FOR 07P,04Y,019,0NH
EMBLEM
€ 5.50
6-2
6813105390019
ref: 6-2
FOR 14L,22R
EMBLEM
€ 10.00
7
0932003004
ref: 7
CUSHION
€ 2.00
8
0932005006
ref: 8
CUSHION
€ 4.00
9-1
0932008018
ref: 9-1
MODEL Z/D/F
CUSHION
€ 4.00
9-2
0932008018
ref: 9-2
MODEL K/L
CUSHION
€ 4.00
10
0932908003
ref: 10
MODEL Z/D/F
CUSHION
€ 3.50
