REAR FENDER (MODEL R)

GS125E 1982 (Z) SWEDEN (E17)

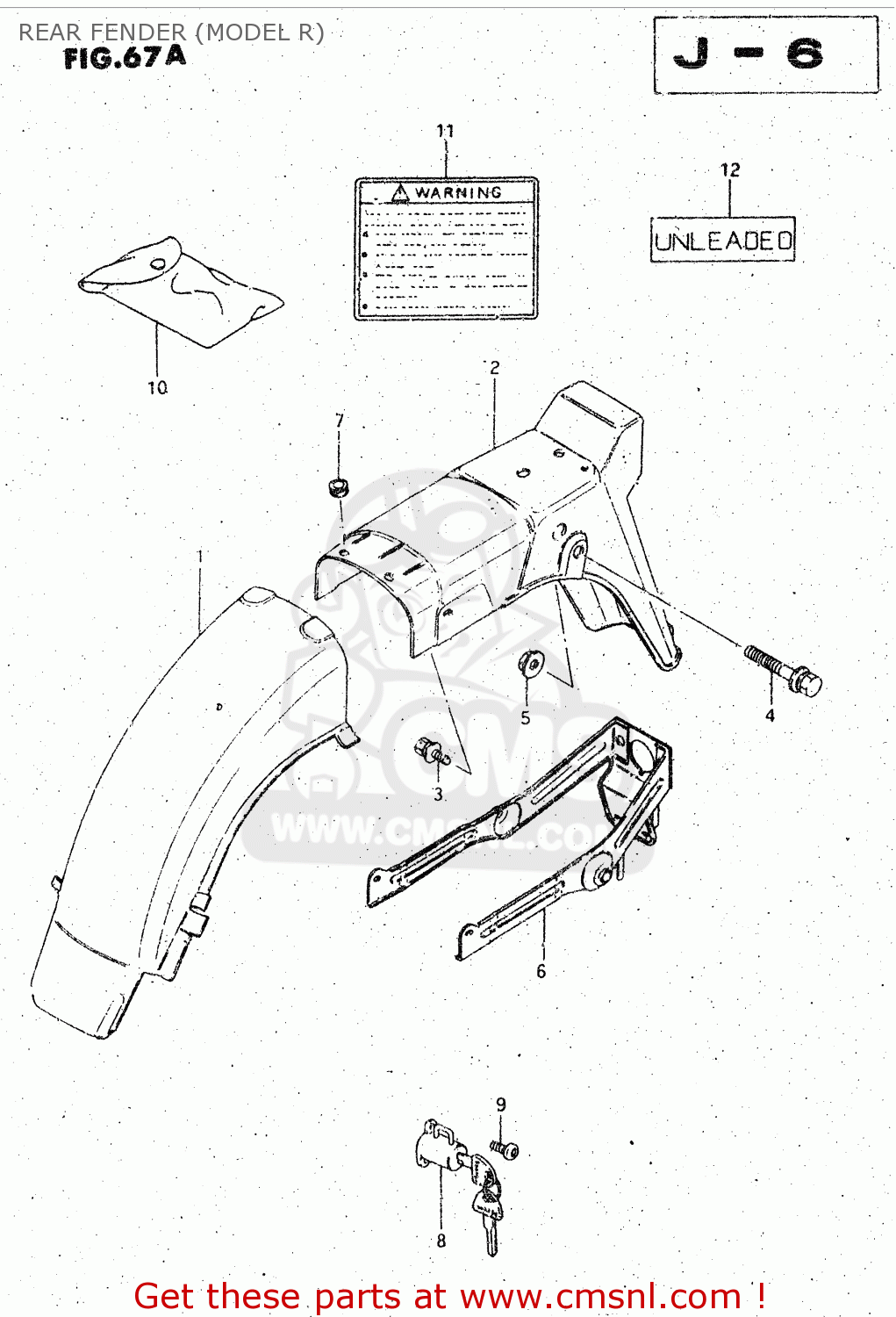

Rear fender (model r) diagram GS125E 1982 (Z) SWEDEN (E17)

REAR FENDER (MODEL R) GS125E 1982 (Z) SWEDEN (E17)
REAR FENDER (MODEL R) GS125E 1982 (Z) SWEDEN (E17)
REAR FENDER (MODEL R) GS125E 1982 (Z) SWEDEN (E17)
prices are in EUR
ref
part #
description
quantity
1
6311205302
ref: 1
BODY,FR
6311205302
€ 44.00
2
6311305350
ref: 2
BODY,RR FENDER RR
€ 58.50
3
0158006163
ref: 3
BOLT
0158006163
€ 2.50
4
0158008553
ref: 4
BOLT
€ 0.00
5
0831610083
ref: 5
NUT
0831610083
€ 3.00
6
6312005350
ref: 6
REINFORCEMENT,RR FENDER
6312005350
€ 26.00
7
0932005006
ref: 7
CUSHION
0932005006
€ 4.00
8
9570037810
ref: 8
LOCK SET,HELMET
€ 36.00
9
0913906069
ref: 9
SCREW
€ 2.50
10
0980021020
ref: 10
TOOL ASSY
0980021020
€ 33.50
11-1
6831940C51
ref: 11-1
E71
LABEL
€ 8.00
11-2
6831940C00
ref: 11-2
E1,E2
LABEL
6831940C00
€ 8.00
12
6862317D00
ref: 12
E2
LABEL,CAUTION
6862317D00
€ 4.00
13
990110533701S
ref: 13
DRAWING NOT SHOWN
MANUAL, OWNER'S
€ 29.50
up

all assemblies
