HANDLEBAR - FRONT CABLE (GS125Z/D)

GS125E 1982 (Z) SWEDEN (E17)

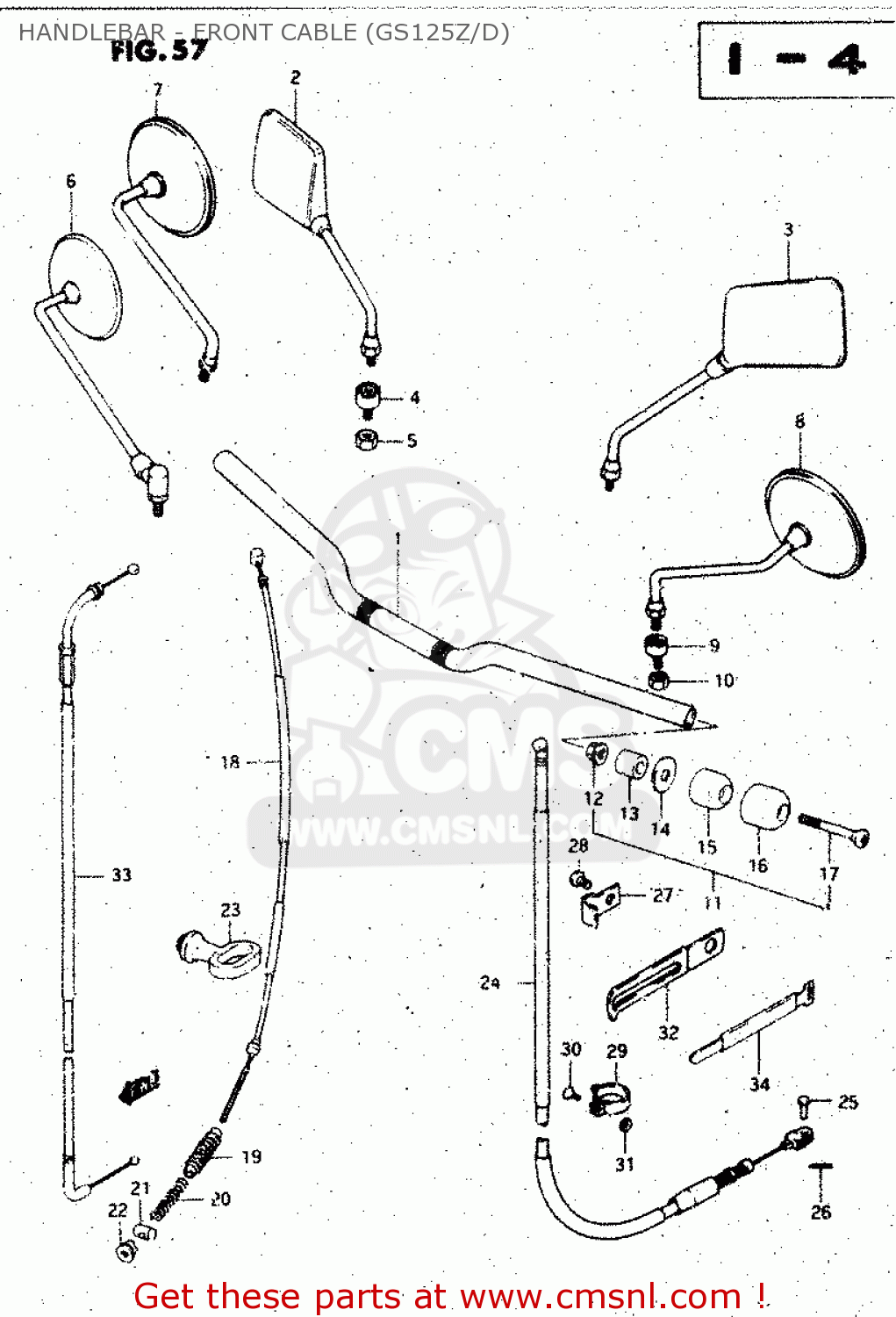

Handlebar - front cable (gs125z/d) diagram GS125E 1982 (Z) SWEDEN (E17)

HANDLEBAR - FRONT CABLE (GS125Z/D) GS125E 1982 (Z) SWEDEN (E17)
HANDLEBAR - FRONT CABLE (GS125Z/D) GS125E 1982 (Z) SWEDEN (E17)
HANDLEBAR - FRONT CABLE (GS125Z/D) GS125E 1982 (Z) SWEDEN (E17)
prices are in EUR
ref
part #
description
quantity
1
5611105360
ref: 1
HANDLEBAR
€ 89.50
2
5650036500
ref: 2
E1
MIRROR ASSY, REAR VIEW RH
€ 43.50
3
5660036500
ref: 3
E1
MIRROR ASSY, REAR VIEW LH
€ 39.00
4
5670045400
ref: 4
E1
CUSHION ASSY,RR VIEW MIRROR
5670045400
€ 18.00
5
0831022107
ref: 5
E1
NUT
0831022107
€ 2.50
6
5650045650
ref: 6
E2
MIRROR ASSY,RR VIEW
5650045650
€ 35.00
7
5650032420
ref: 7
E24
MIRROR ASSY, REAR VIEW RH
€ 0.00
8
5660032420
ref: 8
E24
MIRROR ASSY, REAR VIEW LH
€ 0.00
9
5670031001
ref: 9
E2,E24
CUSHION,REAR VIEW MIRROR
5670031001
€ 18.00
10
0831022107
ref: 10
E2,E24
NUT
0831022107
€ 2.50
11
5620036810
ref: 11
BALANCER SET,HANDLEBAR
5620036810
€ 88.00
12
0915906024
ref: 12
NUT
0915906024
€ 2.00
13
5627244500
ref: 13
EXPANDER,HANDLE BALANCER
5627244500
€ 3.00
14
5627534400
ref: 14
SPACER,BALANCER
5627534400
€ 2.50
15
5627149420
ref: 15
BALANCER,HANDLE
5627149420
€ 19.50
16
5627405350
ref: 16
CAP,BALANCER
5627405350
€ 223.50
17
0213206655
ref: 17
SCREW 6X65
0213206655
€ 2.50
18
5810005351
ref: 18
CABLE,FR BRAKE
5810005351
€ 18.00
19
0928707001
ref: 19
SEAL,DUST(7X16X75)
0928707001
€ 2.00
20
0944006003
ref: 20
SPRING
0944006003
€ 2.00
21
0920910001
ref: 21
PIN,10X19
0920910001
€ 2.00
22
0915005001
ref: 22
NUT
0915005001
€ 3.50
23
5862121203A
ref: 23
GUIDE,CABLE
€ 7.50
24
5820005360
ref: 24
CABLE ASSY,CLUTCH
5820005360
€ 24.50
25
0920006011
ref: 25
PIN(L:15)
0920006011
€ 2.50
26
0411120158
ref: 26
PIN
0411120158
€ 1.50
27
5862637400
ref: 27
CLAMP,CLUTCH CABLE NO.1
€ 8.50
28
0215206108
ref: 28
SCREW
€ 2.00
29
5828505350
ref: 29
CLAMP,CABLE
€ 4.00
30
0211205164
ref: 30
SCREW
0211205164
€ 2.00
31
0831022055
ref: 31
NUT 5MM
0831022055
€ 2.00
32
0940408402
ref: 32
CLAMP
0940408402
€ 3.50
33
5830005352
ref: 33
CABLE ASSY,THROTTLE
5830005352
€ 26.00
34
0940718301
ref: 34
CLAMP
0940718301
€ 6.00
