Buy Suzuki GS Parts Online


FRONT BRAKE HOSE

GS125E 1982 (Z) SWEDEN (E17)

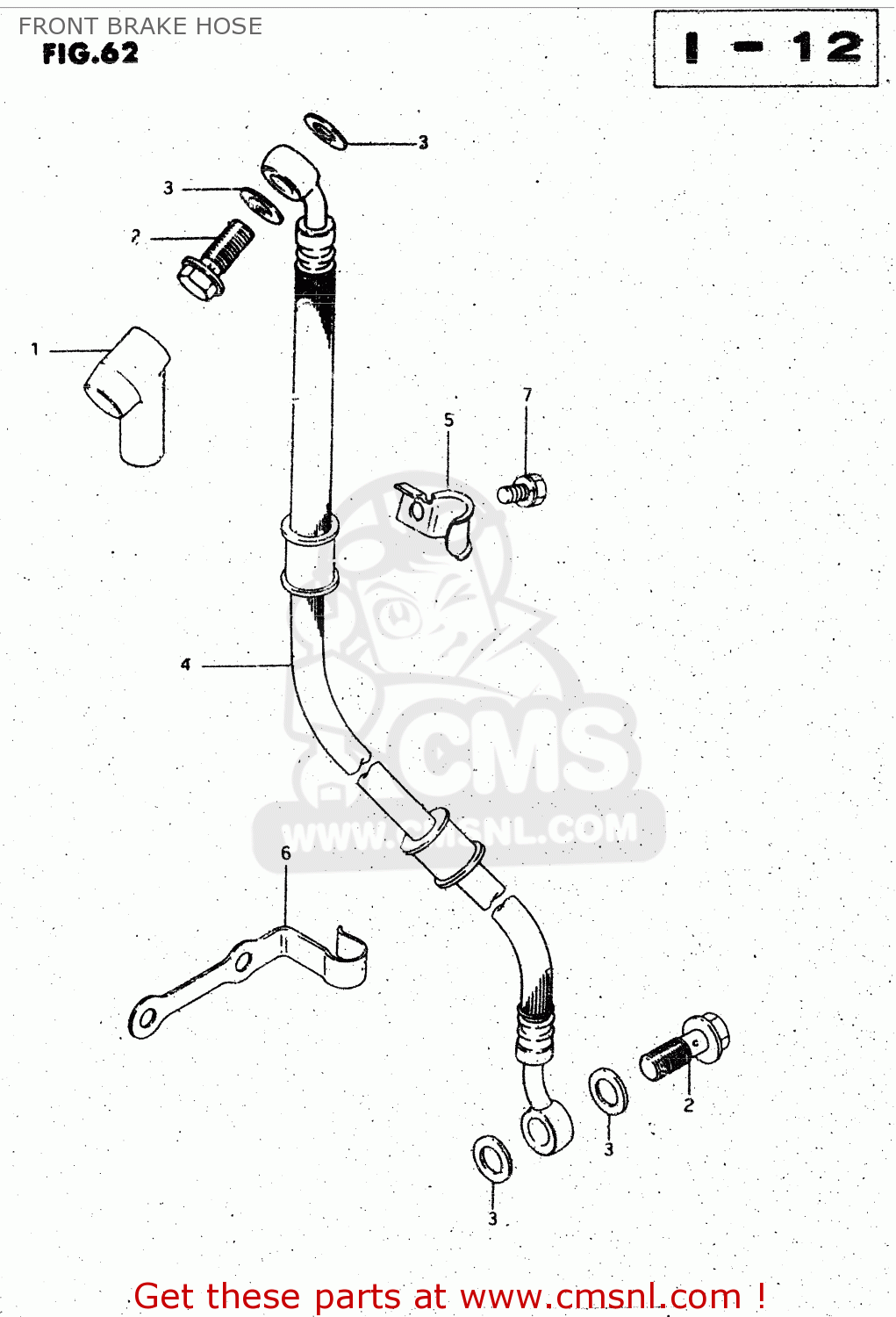

Front brake hose diagram GS125E 1982 (Z) SWEDEN (E17)

FRONT BRAKE HOSE GS125E 1982 (Z) SWEDEN (E17)
FRONT BRAKE HOSE GS125E 1982 (Z) SWEDEN (E17)
FRONT BRAKE HOSE GS125E 1982 (Z) SWEDEN (E17)
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
MODEL Z/D/F/K/L/M
BOOT,MASTER CYLINDER
5971149001
€ 8.50
2-1
0936010007
ref: 2-1
MODEL Z
BOLT,UNION
0936010007
€ 6.50
2-2
0936010017
ref: 2-2
MODEL D/F/K/L/M
BOLT UNION
0936010017
€ 6.50
2-3
0936010039
ref: 2-3
MODEL R
BOLT UNION
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
0916110009
€ 2.00
4-1
5948005313
ref: 4-1
MODEL Z/D/F/K/L/M
HOSE, BRAKE
€ 50.00
4-2
5948005321
ref: 4-2
MODEL R
HOSE,FR BRAKE
€ 50.00
5
5924639100
ref: 5
CLAMP,BRAKE HOSE
5924639100
€ 5.00
6
5926805310
ref: 6
CLAMP,BRAKE HOSE
5926805310
€ 152.50
7-1
0110706127
ref: 7-1
MODEL Z/D/F/K
BOLT
0110706127
€ 2.00
7-2
0113706128
ref: 7-2
MODEL L/M
BOLT
€ 2.50
7-3
0157006123
ref: 7-3
MODEL R
BOLT
0157006123
€ 1.50
