FRONT FORK (GS125UR E71)
GS125E 1982 (Z) SWEDEN (E17)

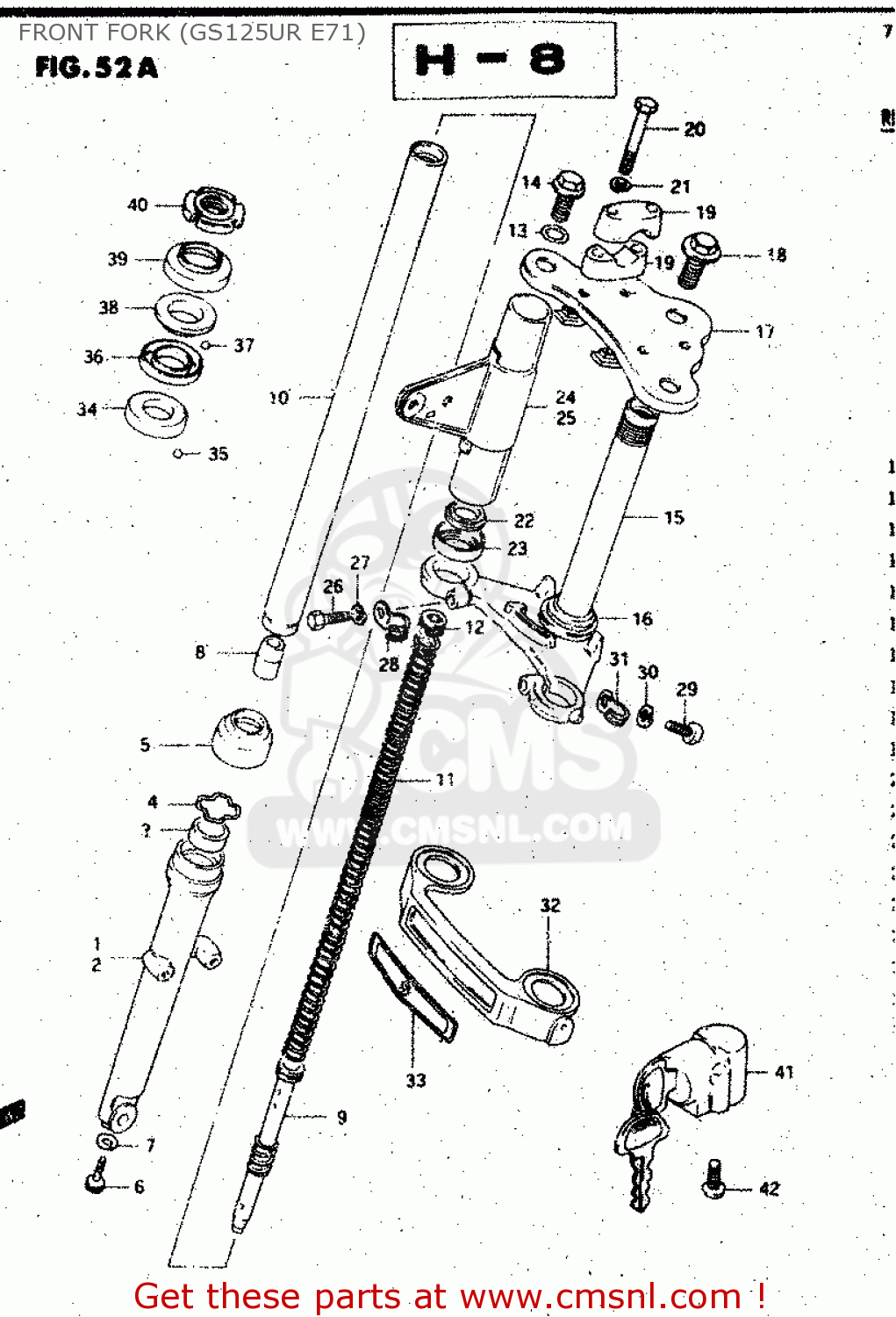

Front fork (gs125ur e71) diagram GS125E 1982 (Z) SWEDEN (E17)
FRONT FORK (GS125UR E71) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
0
51100053A0291
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113036500
ref: 1
TUBE,OUTER,R
€ 88.50
2
5114005360
ref: 2
TUBE,OUTER,L
€ 0.00
3
5115329400
ref: 3
OIL SEAL,FRONT FORK
€ 11.00
4
5115639260
ref: 4
RING,SNAP
€ 2.50
5
5117339610
ref: 5
SEAL,DUST
€ 10.00
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
€ 3.50
7
5114841310
ref: 7
GASKET (NAS)
€ 2.50
8
5119536220
ref: 8
PIECE,OIL LOCK
€ 11.50
9
5114605330
ref: 9
FRONT FORK DAMPER TUBE
€ 20.00
10
5111039680
ref: 10
TUBE,FORK INNER
€ 119.00
11
5117105330
ref: 11
SPRING
€ 25.50
12
5135336220
ref: 12
NUT
€ 7.00
13
0928022001
ref: 13
O RING(D:2.4,ID:21.8)
€ 2.00
14
5135139221
ref: 14
CAP,FORK
€ 12.00
15
5141036231
ref: 15
STEM,STEERING
€ 135.50
16
5162133001
ref: 16
RACE,STEERING OUTER LWR
€ 10.00
17
5131005330291
ref: 17
HEAD,STEERING STEM
€ 64.50
18
5135239220
ref: 18
BOLT
€ 4.00
19
5621127200291
ref: 19
HOLDER,HANDLE UPR
€ 13.50
20
0120408557
ref: 20
BOLT
€ 2.50
21
0832101087
ref: 21
WASHER,LOCK
€ 2.00
22
5155325210
ref: 22
CUSHION,HEAD LAMP BRACKET
€ 6.50
23
5155110200
ref: 23
GUIDE,BRACKET
€ 5.50
24
5153005330291
ref: 24
BRACKET,HEADLAMP,R
€ 33.00
25
5154005330291
ref: 25
BRACKET,HEADLAMP,L
€ 31.50
26
5145128012
ref: 26
BOLT,FR FORK LWR(12X33)
€ 11.50
27
0832101127
ref: 27
WASHER,LOCK
€ 2.50
28
5145536010
ref: 28
CLIP
€ 6.50
29
0211206107
ref: 29
SCREW
€ 1.50
30
0832101067
ref: 30
WASHER,LOCK
€ 2.50
31
5145305110
ref: 31
CLIP,BRAKE CABLE
€ 4.50
32
5187105351291
ref: 32
COVER,FR FORK
€ 23.50
33
6821138300
ref: 33
EMBLEM,FR FORK COVER
€ 13.50
34
5161133002
ref: 34
LACE,STEERING INNER LWR
€ 7.00
35
0611108003
ref: 35
BALL
€ 1.50
36
5161120002
ref: 36
RACE,STEERING INNER UPR
€ 5.50
37
0611106003
ref: 37
BALL
€ 1.50
38
5162128000
ref: 38
RACE,STEERING OUTER UPR
€ 7.00
39
5164325001
ref: 39
DUST SEAL,STEERING UPR
€ 4.50
40
5163128000
ref: 40
NUT,STEERING STEM(25X44X10)
€ 12.50
41
5191025311
ref: 41
LOCK ASSY,STEERING
€ 22.50
42
0211235127
ref: 42
SCREW
€ 1.00
