HEADLAMP (E4,E15,E17,E18,E39)
GS125E 1982 (Z) SWEDEN (E17)

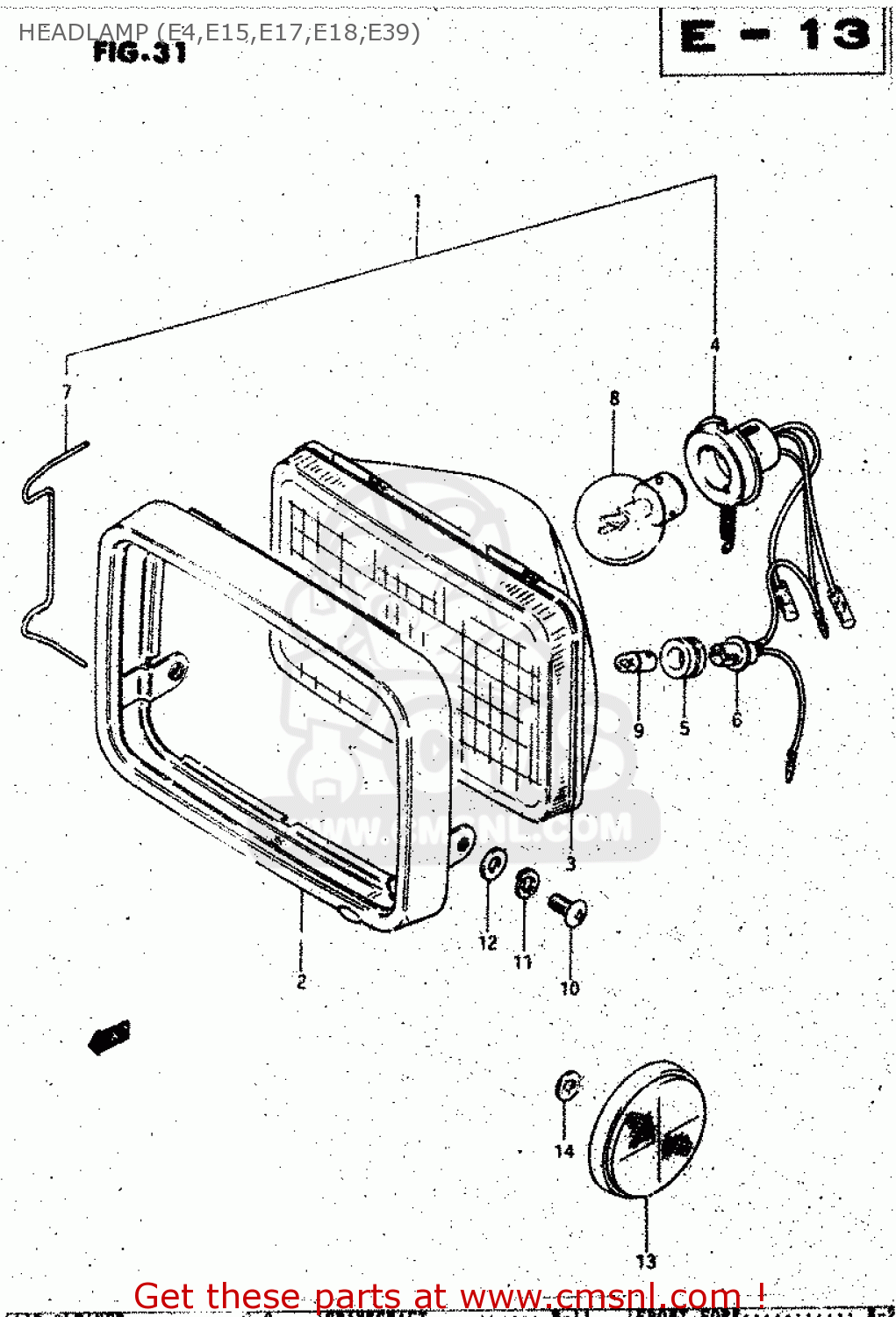

Headlamp (e4,e15,e17,e18,e39) diagram GS125E 1982 (Z) SWEDEN (E17)
HEADLAMP (E4,E15,E17,E18,E39) GS125E 1982 (Z) SWEDEN (E17)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510036540999
ref: 1-1
E4
HEADLAMP ASSY
€ 0.00
1-2
3510036560999
ref: 1-2
E15,E17,E18,E39
HEADLAMP ASSY
€ 154.50
2
3511136510
ref: 2
RIM
€ 44.00
3-1
3512136540
ref: 3-1
E4
UNIT
€ 69.00
3-2
3512136560
ref: 3-2
E15,E17,E18,E39
UNIT
€ 37.50
4-1
3517136540
ref: 4-1
E4
SOCKET
€ 0.00
4-2
3517136560
ref: 4-2
E15,E17,E18,E39
SOCKET
€ 0.00
5
3611622630
ref: 5
JOINT,RUBBER
€ 5.00
6
3611849320
ref: 6
SOCKET
€ 12.00
7
3512836511
ref: 7
SPRING
€ 4.00
8-1
0947112047
ref: 8-1
E4,EXECUTED LOCALLY
BULB
€ 0.00
8-2
0947112020
ref: 8-2
E15,E17,E18,E39 EXEC
BULB(12V35/35W)
€ 108.50
9
0947112063
ref: 9
BULB(12V4W)
€ 6.00
10
0211205128
ref: 10
SCREW
€ 2.50
11
0832121057
ref: 11
LOCK WASHER
€ 2.00
12
0832221057
ref: 12
WASHER
€ 2.50
13
3595030910
ref: 13
E39
REFLEX REFLECTOR,FR
€ 43.50
14
0832221056
ref: 14
E39
WASHER
€ 2.50
