CAM SHAFT - VALVE
GS550L 1982 (Z) USA (E03)

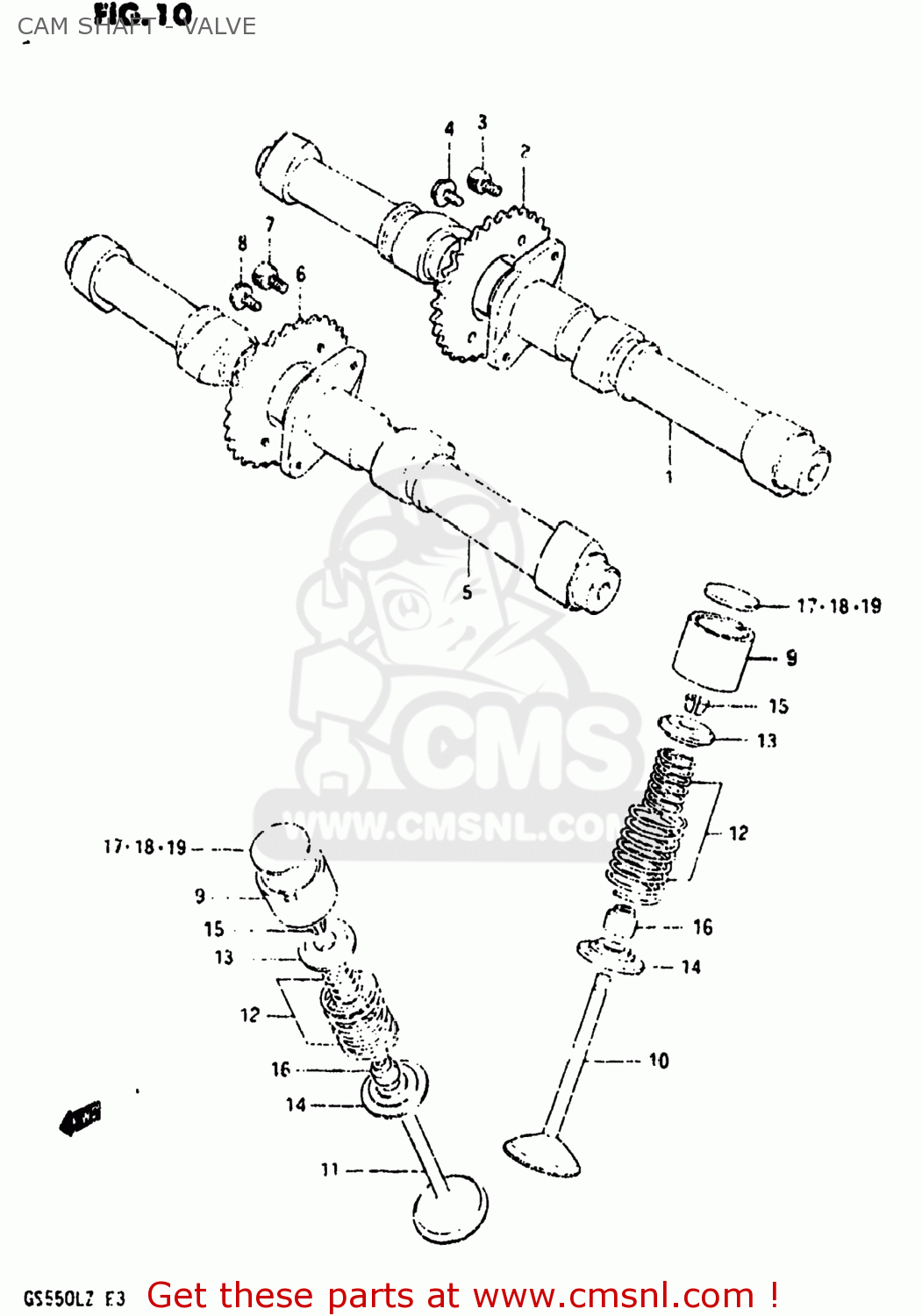

Cam shaft - valve diagram GS550L 1982 (Z) USA (E03)
CAM SHAFT - VALVE GS550L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271147000
ref: 1-1
12711-47001
CAMSHAFT
€ 173.50
1-2
1271147001
ref: 1-2
CAMSHAFT,INTAKE
€ 173.50
2-1
1274147001
ref: 2-1
SPROCKET,CAMSHAFT
€ 27.00
2-2
1274147002
ref: 2-2
SPROCKET,INTAKE CAMSHAFT
€ 38.00
3
0910606024
ref: 3
07130-0610B
BOLT 6X11
€ 2.50
4
0910307001
ref: 4
BOLT(7X11)
€ 2.00
5-1
1272147010
ref: 5-1
12721-47011
CAMSHAFT,EXHAUST
€ 182.00
5-2
1272147011
ref: 5-2
CAMSHAFT,EXHAUST
€ 182.00
6-1
1275147010
ref: 6-1
SPROCKET,EXHAUST CAMSHAFT
€ 0.00
6-2
1275147011
ref: 6-2
SPROCKET,EXHAUST CAMSHAFT
€ 33.50
7
0910606024
ref: 7
07130-0610B
BOLT 6X11
€ 2.50
8
0910307001
ref: 8
BOLT(7X11)
€ 2.00
9
1289145000
ref: 9
12891-45001
TAPPET
€ 45.00
10
1291147011
ref: 10
12911-34210
VALVE,INTAKE
€ 28.00
11
1291247011
ref: 11
12912-34203
VALVE,EXHAUST
€ 42.50
12
1290045810
ref: 12
12920-45011
SPRING SET,VALVE
€ 17.00
13
1293145000
ref: 13
12931-45001
RETAINER,VALVE SPRING
€ 6.00
14
1293345001
ref: 14
SEAT,VALVE SPRING
€ 5.50
15
1293245010
ref: 15
COTTER VALVE
€ 2.50
16
0928907002
ref: 16
SEAL,OIL(7X14.4X9)
€ 3.00
17-1
1289245000
ref: 17-1
12892-45000-215
SHIM,TAPPET
€ 17.00
17-2
1289245001
ref: 17-2
12892-45000-220
SHIM,TAPPET
€ 16.50
17-3
1289245002
ref: 17-3
12892-45000-225
SHIM,TAPPET
€ 17.00
17-4
1289245003
ref: 17-4
12892-45000-230
SHIM,TAPPET
€ 16.00
17-5
1289245004
ref: 17-5
12892-45000-235
SHIM,TAPPET
€ 16.50
17-6
1289245005
ref: 17-6
12892-45000-240
SHIM,TAPPET
€ 17.00
17-7
1289245006
ref: 17-7
12892-45000-245
SHIM,TAPPET
€ 17.00
17-8
1289245007
ref: 17-8
12892-45000-250
SHIM,TAPPET
€ 16.00
17-9
1289245008
ref: 17-9
12892-45000-255
SHIM,TAPPET
€ 16.50
18-1
1289245009
ref: 18-1
12892-45000-260
SHIM,TAPPET
€ 16.00
18-2
1289245010
ref: 18-2
12892-45000-265
SHIM,TAPPET
€ 17.00
18-3
1289245011
ref: 18-3
12892-45000-270
SHIM,TAPPET
€ 17.00
18-4
1289245012
ref: 18-4
12892-45000-275
SHIM,TAPPET
€ 17.00
18-5
1289245013
ref: 18-5
12892-45000-280
SHIM,TAPPET
€ 16.50
18-6
1289245014
ref: 18-6
12892-45000-285
SHIM,TAPPET
€ 17.00
18-7
1289245015
ref: 18-7
12892-45000-290
SHIM,TAPPET
€ 17.00
18-8
1289245016
ref: 18-8
12892-45000-295
SHIM,TAPPET
€ 17.00
18-9
1289245017
ref: 18-9
12892-45000-300
SHIM,TAPPET
€ 17.00
19-1
1289245018
ref: 19-1
12892-45000-305
SHIM,TAPPET
€ 16.50
19-2
1289245019
ref: 19-2
12892-45000-310
SHIM,TAPPET
€ 17.00
20
1280045810
ref: 20
12800-45811
SHIM SET,TAPPET
€ 1,227.00
20
1280045810
ref: 20
12800-45811
SHIM SET,TAPPET
€ 1,227.00
20
1280045810
ref: 20
12800-45811
SHIM SET,TAPPET
€ 1,227.00
21
9900069480
ref: 21
99000-69521
CASE
€ 152.50
